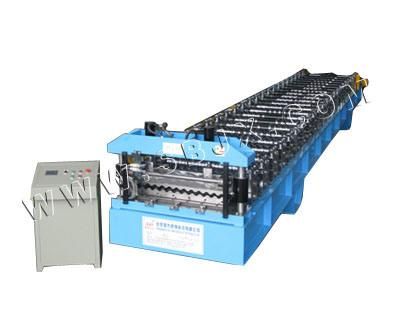

Corrugated Roofing Sheet Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：Corrugated forming machine
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Machine Name：Corrugated Roofing Sheet Roll Forming Machine
  • Thickness：0.4-0.8mm
  • Width of Raw Material：1250mm
  • Transport Package：Sea Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

Basic Info.

Model NO. Corrugated forming machine Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Machine Name Corrugated Roofing Sheet Roll Forming Machine Thickness 0.4-0.8mm Width of Raw Material 1250mm Transport Package Sea Packing Specification CE SGS Trademark SAIBO Origin China HS Code 84552210 Production Capacity 300set/Year

Product Description

Product name: Corrugated roll forming machine

Detailed Description:
1. Main power: 5.5KW
2. Roll station: 18stations
3. Size of roll forming machine: About 9.4m*1.65m*1.2m
4. Diameter of shaft: 70mm
5. Thickness of formed steel: 0.3mm-0.8mm
6. Width of raw material: 1250mm
7. Material of the roller: 45#forge steel, machined with numerical control, polished and coated with chrome, surface with chrome
8. Hydraulic power: 4KW
9. Computer adopt PLC, Panasonic
10. Computer operating board: Touch screen
11. Length tolerance: +/-1.5mm
12. Working speed: 12-30m/min(not including cutting)
13. Hydraulic pressure: 12Mpa

Equipment
Include: Uncoiler, roll forming machine, hydraulic station, hydraulic shear, PLC cabinet, output table

Flow chart
Passive uncoil--feeding--formed--cutting--product.
