Zxq-1 Inlay Machine, Moulding Machine, Sample Preparation Equipments Supplier
Laizhou Laihua Testing Instrument Factory- Transport Package：Wooden
- Specification：466 x 238 x 630mm
- Trademark：laihua
- Origin：Shangdong
Base Info
- Model NO.：ZXQ-1
- HS Code：9031809090
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. ZXQ-1 HS Code 9031809090 Production Capacity 100 Sets/MonthProduct Description

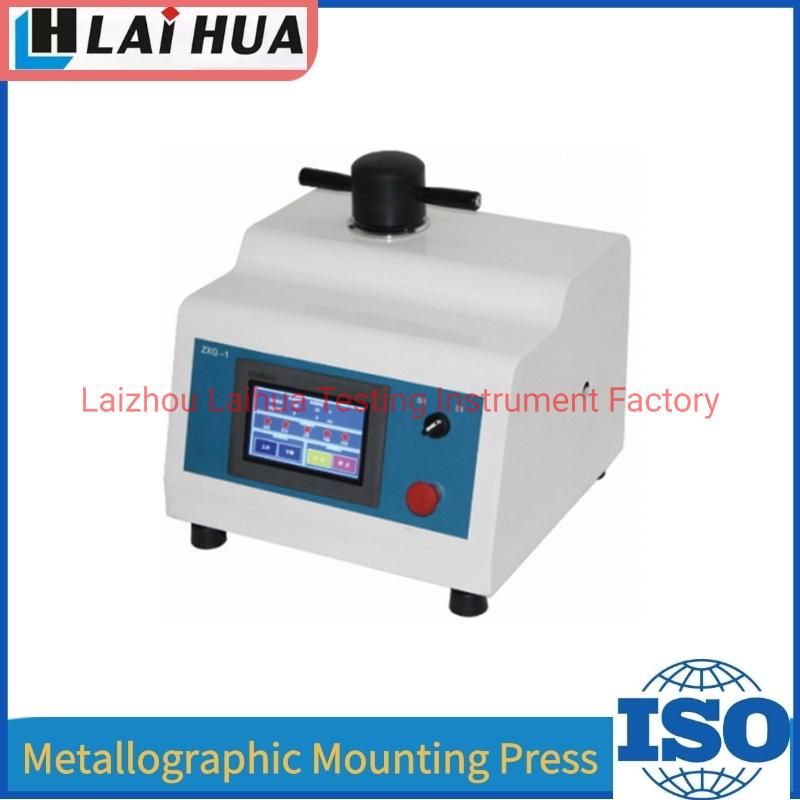

Zxq-1 Inlay Machine, Moulding Machine, Sample Preparation Equipments Supplier
Automatic Metallographic Sample Mounting Press is used to mosaic small specimens, specimens in irregular shapes, or specimens which are not easy to take up. It is the preceding process before grinding and polishing metallographic or rock specimens.
The mosaic operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallographic microscope.
The machine is heated, and intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatical way.
With another press of the knob, the machine automatically turns up the specimen, which may be taken away. Note: It is only for the hot and solid materials (such as jade powder and bakelite powder) with the temperature automatically regulated and controlled.
Technical parameters :
Specification of Samples: φ22mm, φ30mm, φ45mm
Heater: 220V 650W
Total Electric Power: 1000W
Dimensions: 380×350×420mm
Net Weight: 50Kg
