• Model NO.：XE1100HB1-70
• Cutting Linear Velocity：60m,Min
• Cutting Frequency：70times,Min
• Transport Package：Film or Carton
• Specification：ISO9001
• Trademark：XUANEN
• Origin：China
• HS Code：8462319000
• Production Capacity：30 PCS Per Year

Basic Info.

Model NO. XE1100HB1-70 Cutting Linear Velocity 60m/Min Cutting Frequency 70times/Min Transport Package Film or Carton Specification ISO9001 Trademark XUANEN Origin China HS Code 8462319000 Production Capacity 30 PCS Per Year

Product Description

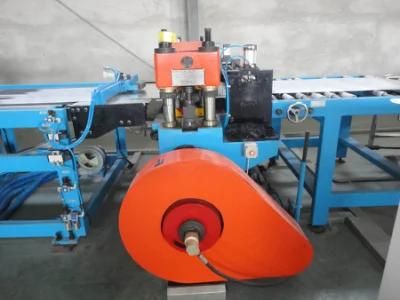

Low Speed Metal Sheet Cut to Length Line of 70m Per Minute with One Stacker XE1100HB1-70



Application: The line is suitable for many kinds of decoiling, leveling and cutting, such as tinplate and aluminum band. It is an important device in making iron tank and cover which can save material waste and production cost.

Construction: It consists of hydraulic decoiler, charge hoist, roller conveyor, leveler, scroll cutter, output conveyor, stacker, roll gang, hydraulic components and electric control cabinet.

Feature: precise gauge, good cutting quality and high production efficiency.


Item No.	XE1100HB1-70
Name	Low Speed Metal Sheet Cut to Length Line of 70m Per Minute with One Stacker XE1100HB1-70
Cutting Material	Tinplate
Cutting Thickness	0.15~0.5mm
Cutting Width	600~1100mm
Cutting Length	460~1100mm
Max Coil Weight	8t
Max Coil Dia	Φ1800mm
Decoiling Expansion Range	Φ405/Φ505
Length Tolerance	≤±0.25mm/m
Diagonal Tolerance	≤±0.15mm
Cutting Linear Velocity	60m/min
Cutting Frequency	70times/min
Max Stacker Loading Weight	2t
Max Stacker Height	460mm(including bracket)
Stacker	1
Capacity	23.5T/Shift
