Hydraulic Standing Seam Steel Tile Roll Roof Panel Forming Machine
Xiamen Xinhonghua Machinery Co., Ltd.- Type:Hydraulic Machine
- Forging Forming Method:Free Forging
- Power Source:Hydraulic Pressure
- Feature:Automation
- Certification:SGS
- Warranty:12 Months
Base Info
- Model NO.:YX65-400-425
- Customized:Customized
- Advantage:Use Widely
- Condition:New
- Size:5800*1600*1500mm
- Weight:7000kgs
- Motor Power:7.5kw*2 Sets
- Hydraulic Power:2.2kw
- Forming Steps:13
- Effective Width:300mm,400mm,500mm
- Material Width:470mm,575mm,680mm
- Material Thickness:0.4-1.0mm
- Working Speed:8-14m,Min
- Voltage:380V,60Hz,3pH

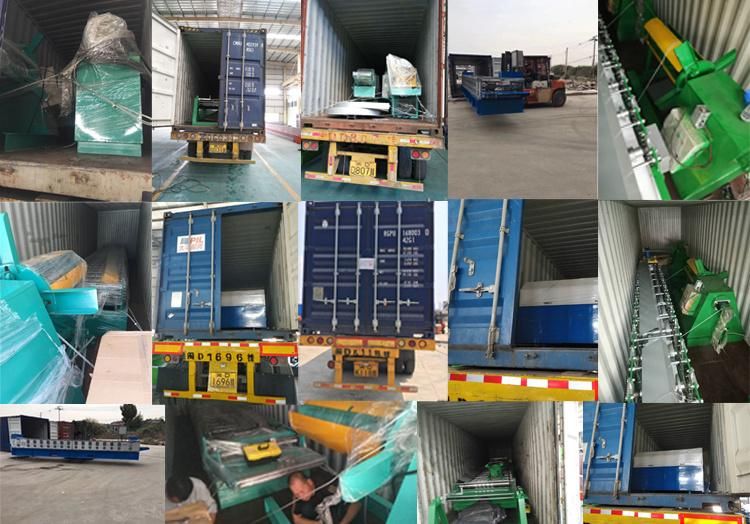

- Transport Package:Standard Package for Export
- Specification:SGS
- Trademark:XHH
- Origin:Xiamen Port, China
- HS Code:84552290
- Production Capacity:20 Sets,Months
Description
Basic Info.
Model NO. YX65-400-425 Customized Customized Advantage Use Widely Condition New Size 5800*1600*1500mm Weight 7000kgs Motor Power 7.5kw*2 Sets Hydraulic Power 2.2kw Forming Steps 13 Effective Width 300mm,400mm,500mm Material Width 470mm,575mm,680mm Material Thickness 0.4-1.0mm Working Speed 8-14m/Min Voltage 380V/60Hz/3pH Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen Port, China HS Code 84552290 Production Capacity 20 Sets/MonthsProduct Description

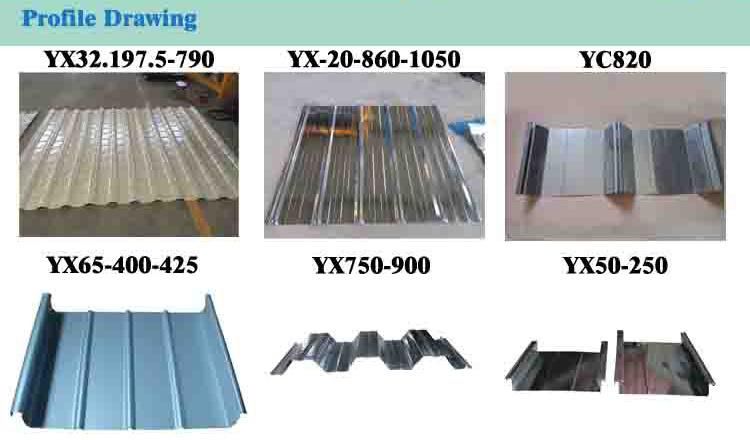

Detail information of YX65-400-425 Standing Seam Roof Forming Machine are as follow:
1,Main Technic Data:
1. | Size | 6500*1600*1500mm |
2. | Weight | 70000KGS |
3. | Motor Power | 7.5KW*2 sets |
4. | Hydraulic Power | 2.2KW |
5. | Voltage | 380V/60HZ/3PH |
6. | Forming Steps | 13 |
7. | Forming Speed | 8-14m/min |
8. | Effective Width | 300mm, 400mm, 500mm |
9. | Material of Width | 470mm, 575mm, 680mm |
10. | Thickness for Aluminum sheets: | 0.4-1.0mm |
11. | Thickness for Colored Prepainted and Galvanized Sheet | 0.4-0.8mm |
12. | Material for All Rollers | high grade no. 45 forged steel, plated hard chrome on the surface of rollers |

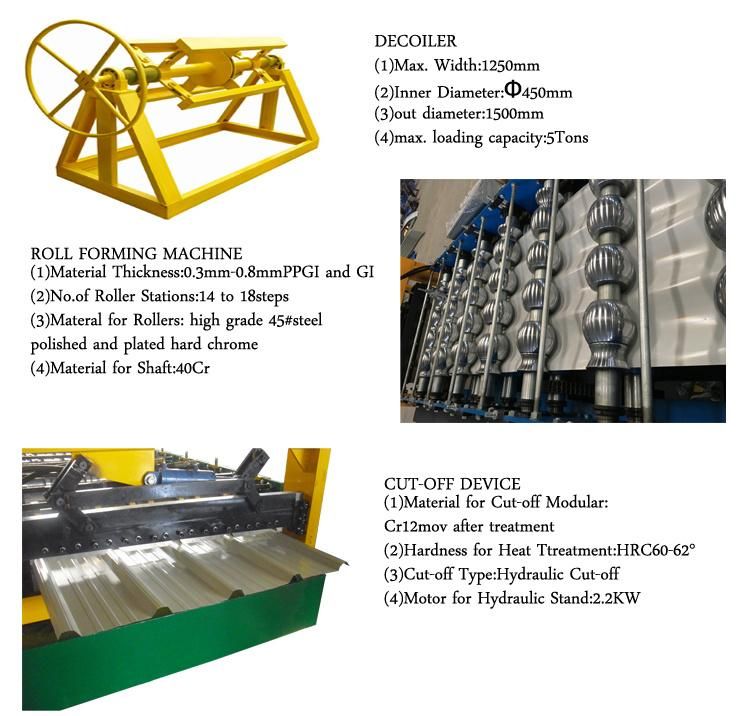

(1) Main Forming Machine,
(2) 5 Tons Manual Uncoiler,

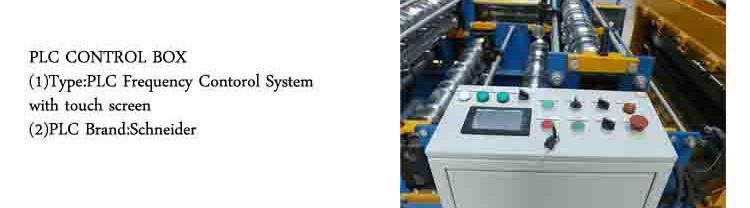

(3) PLC Computer Controlling System With Touching Screen,
(4) Hydraulic System,
(5) Hydraulic Forming Cutter,
(6) 3 Run Out Tables,
(7) Operation Instruction,
(8) Tool.
