• Model NO.：LXP1530
• Z Axis Clearance：150mm(200 and Higher Is Optional)
• Transmission System：Rack Pinion and Hiwin Linear Rails for X,Y
• Driving System：Stepper Motor and Drivers(Servp Motor Is Optiona)
• Working Voltage：380V,3pH(220V,3pH Is Optional)
• Plasma Generator：Huayuan China and USA Power as Your Requirements
• Arc Mode：Non-Contact Arc, Arc Pressure Adjuster
• Max. Cutting Thickness：6,15,18,20,30mm
• Working Material：Steel, Aluminum, Galvanized Sheet, Titanium Plate
• Operating System：Starfire Controller,Start Controller
• Transport Package：Standard Export Packaging
• Specification：3930x2250x1700mm
• Trademark：LXSHOW
• Origin：China Shandong Jinan

Basic Info.

Model NO. LXP1530 Z Axis Clearance 150mm(200 and Higher Is Optional) Transmission System Rack Pinion and Hiwin Linear Rails for X/Y Driving System Stepper Motor and Drivers(Servp Motor Is Optiona) Working Voltage 380V/3pH(220V/3pH Is Optional) Plasma Generator Huayuan China and USA Power as Your Requirements Arc Mode Non-Contact Arc, Arc Pressure Adjuster Max. Cutting Thickness 6/15/18/20/30mm Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate Operating System Starfire Controller/Start Controller Transport Package Standard Export Packaging Specification 3930x2250x1700mm Trademark LXSHOW Origin China Shandong Jinan

Product Description

Top quality cnc plasma metal cutter/plasma cutting equipment with CE





Brief introduction:

Plasma cutting machine, plasma cutting with different working gases can cut a variety of  metal but oxygen  difficult to cut , especially for non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel) cutting effect is better; its main advantage is that the cutting thickness is not Large metal, the plasma cutting speed, especially in cutting ordinary carbon steel sheet, the speed of method up to 5 to 6 times than  oxygen cutting  ,the cutting surface smooth, hot deformation is small, almost no heat affected area.




Application:

Advertising industry:
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.

Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.

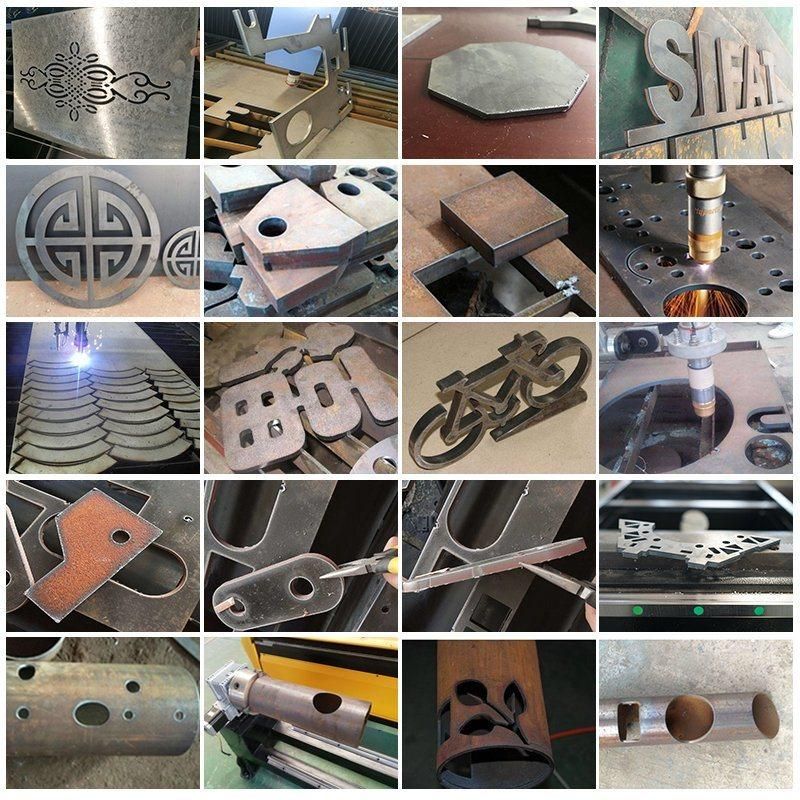

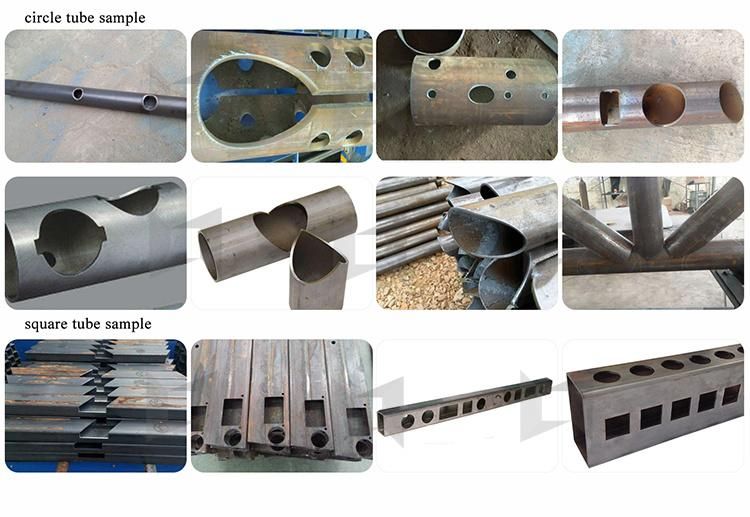

Samples:




Technology Parameter:


NO	Description	LXP1530 (Optional:LXP1015/LXP1212/LXP1325/LXP1540/LXP1550/LXP1560/ LXP2030/LXP2040/LXP2050/LXP2060,other size can be customized)
1	Working Size	1500*3000mm (Optional:1000*1500/1200*1200/1300*2500/1500*4000/1500*5000 /1500*6000/1500*5000/1500*6000/,other size can be customized)
2	Z Axis Clearance	150mm(200 And Higher Is Optional)

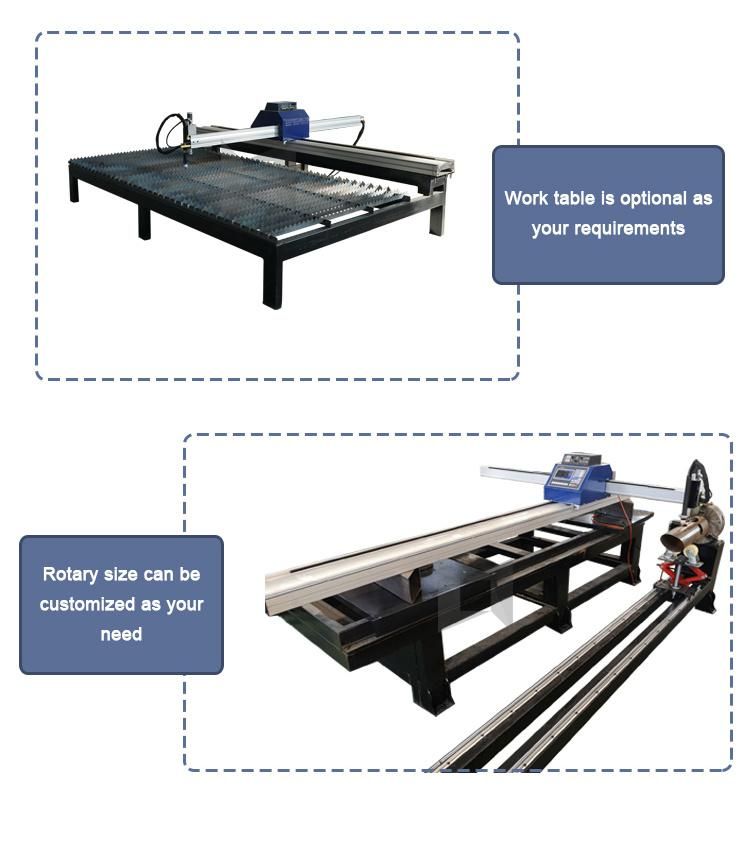

3	Table Type	Knife table (Teeth table And Water table can be optional)
4	Transmission System	Rack Pinion And Hiwin Linear Rails For X/Y
5	Driving System	Stepper Motor And Drivers(Servp motor is optional)
6	Max. Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max. Travelling Speed	30000mm/Min(different configuration speed is different)
8	Working Voltage	380V/3ph(220V/3ph is optional)

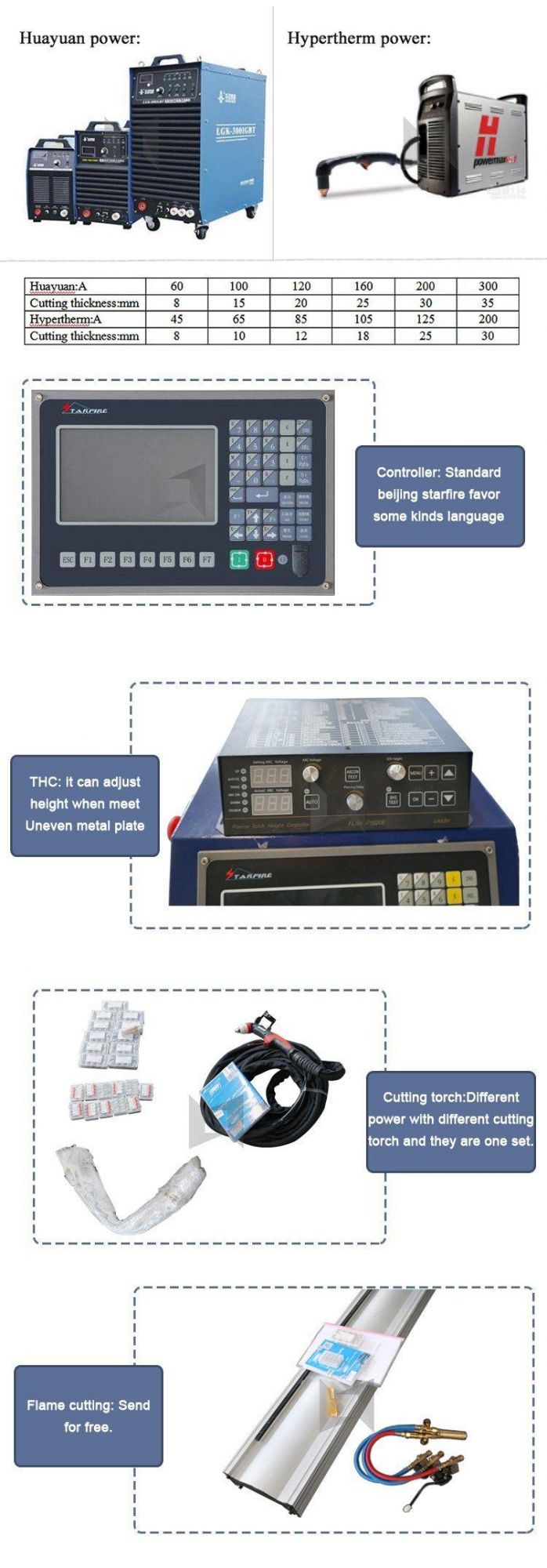

9	Plasma Generator	Huayuan China and USA power as your requirements
10	Arc Mode	Non-Contact Arc, Arc   Pressure Adjuster
11	Output Current	63/100/120A/160A/200A China (45/65/85/105/125/200A USA)
12	Max. Cutting  Thickness	6/15/18/20/30mm
13	Operating System	Starfire Controller/Start Controller/JiaoDa fangling controller
14	Working Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate and almost all of the metal

Configuration:

1). The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

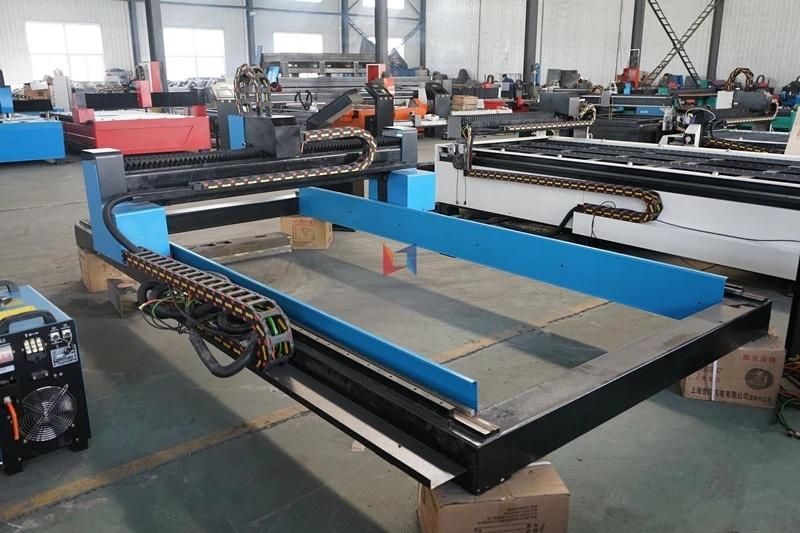

2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail

that make the machine driving smoothly with high-precision.

3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline.Completely solve the traditional manual processing methods. Improve the efficiency of several times.

4). Cutting mouth is small, tidy,and avoid a second dressing processing.

5). It can apply to iron shee the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.

6). High cutting speed, high precision, and low cost.

7). The numerical control system disposes high, the automatic striking arc, the performance is stable.

8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares produce DXF form documents.
