• Model NO.：LXP1530
• Z Axis Clearance：150mm(200 and Higher Is Optional)
• Transmission System：Rack Pinion and Hiwin Linear Rails for X,Y
• Driving System：Stepper Motor and Drivers(Servp Motor Is Optiona)
• Working Voltage：380V,3pH(220V,3pH Is Optional)
• Plasma Generator：Huayuan China and USA Power as Your Requirements
• Arc Mode：Non-Contact Arc, Arc Pressure Adjuster
• Max. Cutting Thickness：8,15,18,20,30mm
• Working Material：Steel, Aluminum, Galvanized Sheet, Titanium Plate
• Operating System：Starfire Controller,Start Controller
• Transport Package：Standard Export Packaging

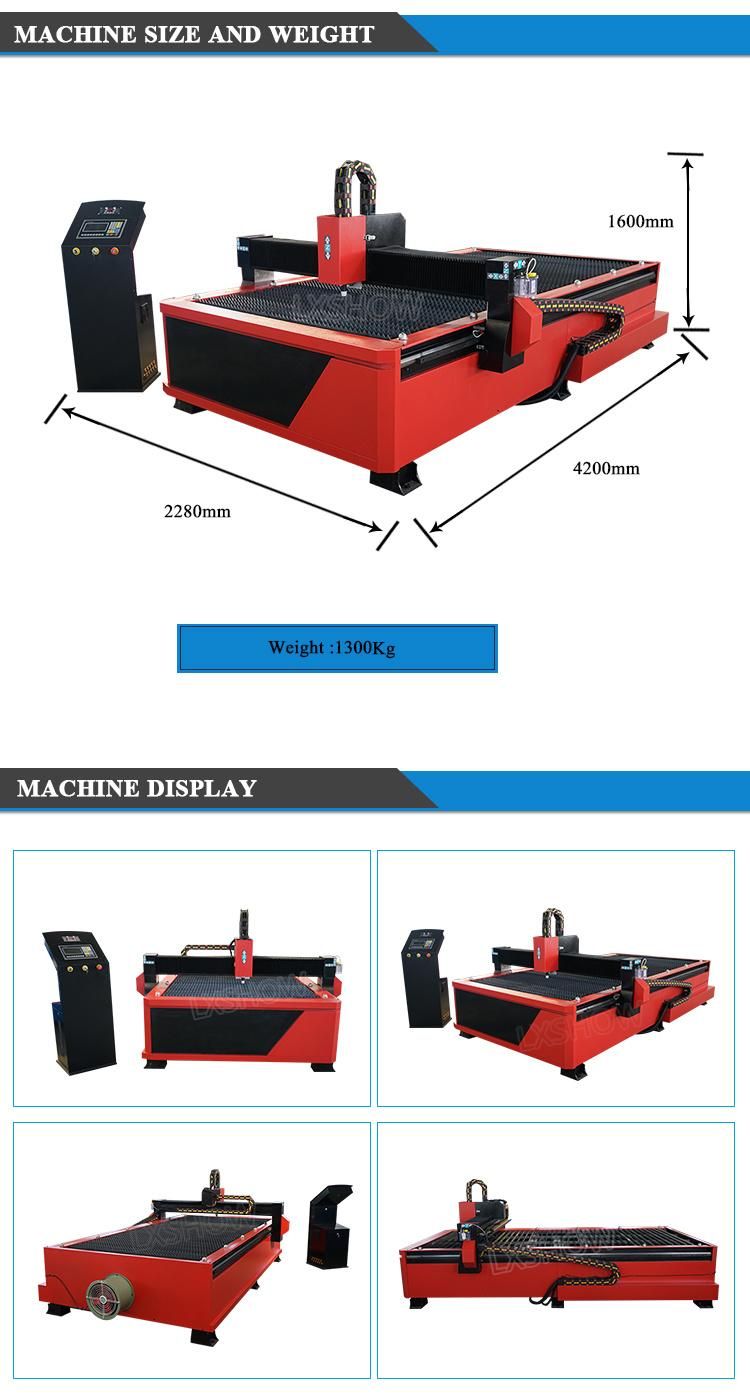

• Specification：2080*3880*1500mm
• Trademark：LXSHOW
• Origin：China Shandong Jinan

Basic Info.

Model NO. LXP1530 Z Axis Clearance 150mm(200 and Higher Is Optional) Transmission System Rack Pinion and Hiwin Linear Rails for X/Y Driving System Stepper Motor and Drivers(Servp Motor Is Optiona) Working Voltage 380V/3pH(220V/3pH Is Optional) Plasma Generator Huayuan China and USA Power as Your Requirements Arc Mode Non-Contact Arc, Arc Pressure Adjuster Max. Cutting Thickness 8/15/18/20/30mm Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate Operating System Starfire Controller/Start Controller Transport Package Standard Export Packaging Specification 2080*3880*1500mm Trademark LXSHOW Origin China Shandong Jinan

Product Description

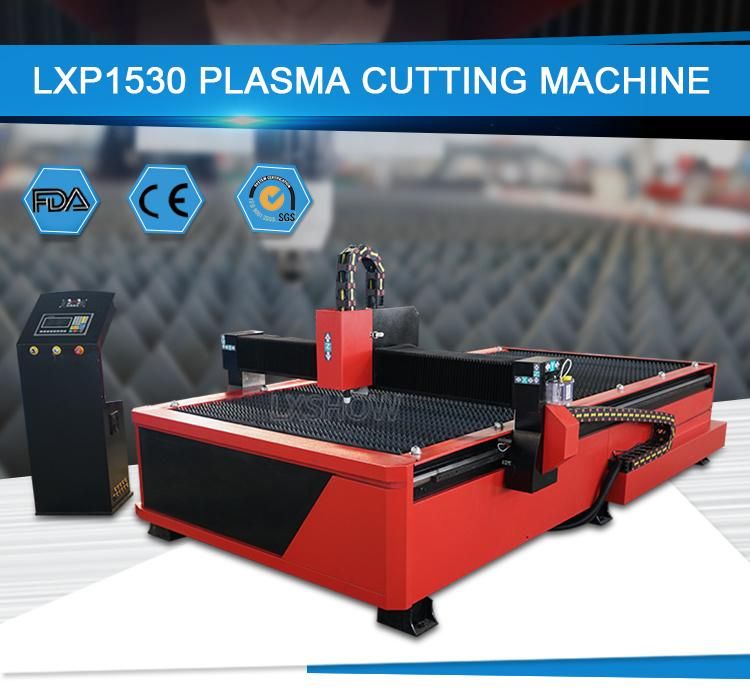

heavy duty metal plasma cutting machine 1530 cnc plasma

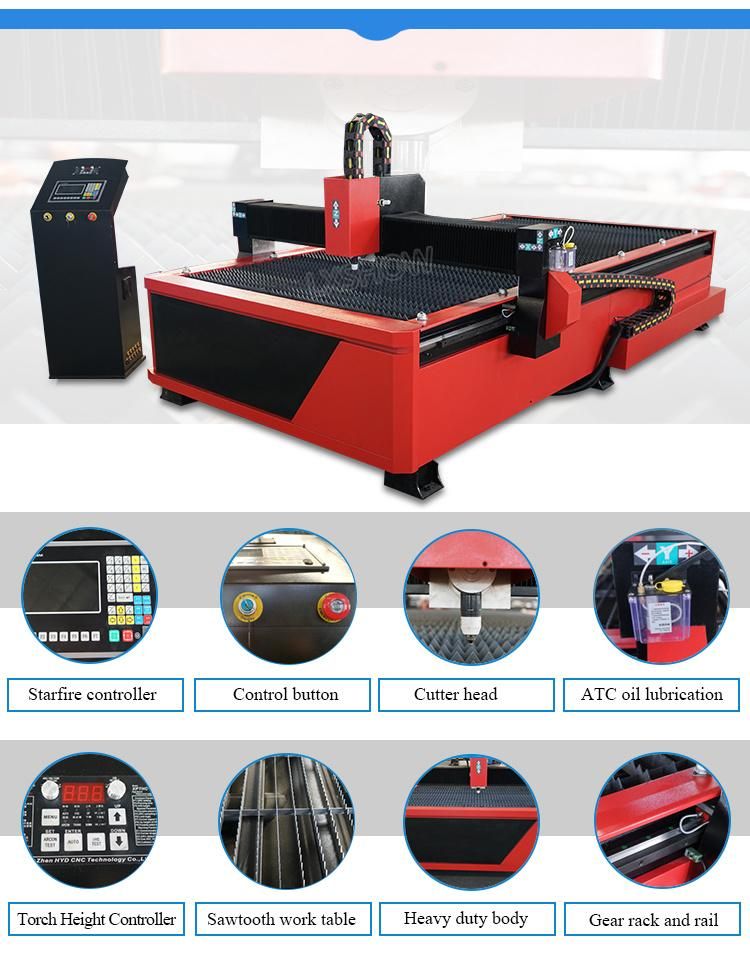

Features:

1). The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail that make

the machine driving smoothly with high-precision.

3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach

good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the

advertising word processing pipeline.

Completely solve the traditional manual processing methods. Improve the efficiency of several times.

4). Cutting mouth is small, tidy,and avoid a second dressing processing.

5). It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.

6). High cutting speed, high precision, and low cost.

7). The numerical control system disposes high, the automatic striking arc, the performance is stable.

8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document, also can change software to read AUTOCAD softwares produce DXF form documents.


Technology Parameter:


NO	Description	LXP1530 (Optional:LXP1325/LXP2030/LXP2040/LXP1550/LXP1560/LXP2050/LXP2060),other size can be customized)
1	Working Size	1500*3000mm (Optional:1300*2500/2000*3000/2000*4000/1500*5000/1500*6000/2000*5000/2000*6000mm ,other size can be customized)
2	Z Axis Clearance	150mm(200 And Higher Is Optional)
3	Table Type	Teeth And Water Tray
4	Transmission System	Rack Pinion And Hiwin Linear Rails For X/Y
5	Driving System	Stepper Motor And Drivers(Servp motor is optional)
6	Max. Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max. Travelling Speed	20000mm/Min(different configuration speed is different)
8	Working Voltage	380V/3ph
9	Plasma Generator	Chinese huayuan supplier Or America Hypertherm power
10	Arc Mode	Non-Contact Arc, Arc   Pressure Adjuster
11	Output Current	63/100/120A/160A/200A
12	Max. Cutting  Thickness	8/15/18/20/30mm
13	Operating System	Starfire Controller/Start Controller/JiaoDa fangling controller
14	Working Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate

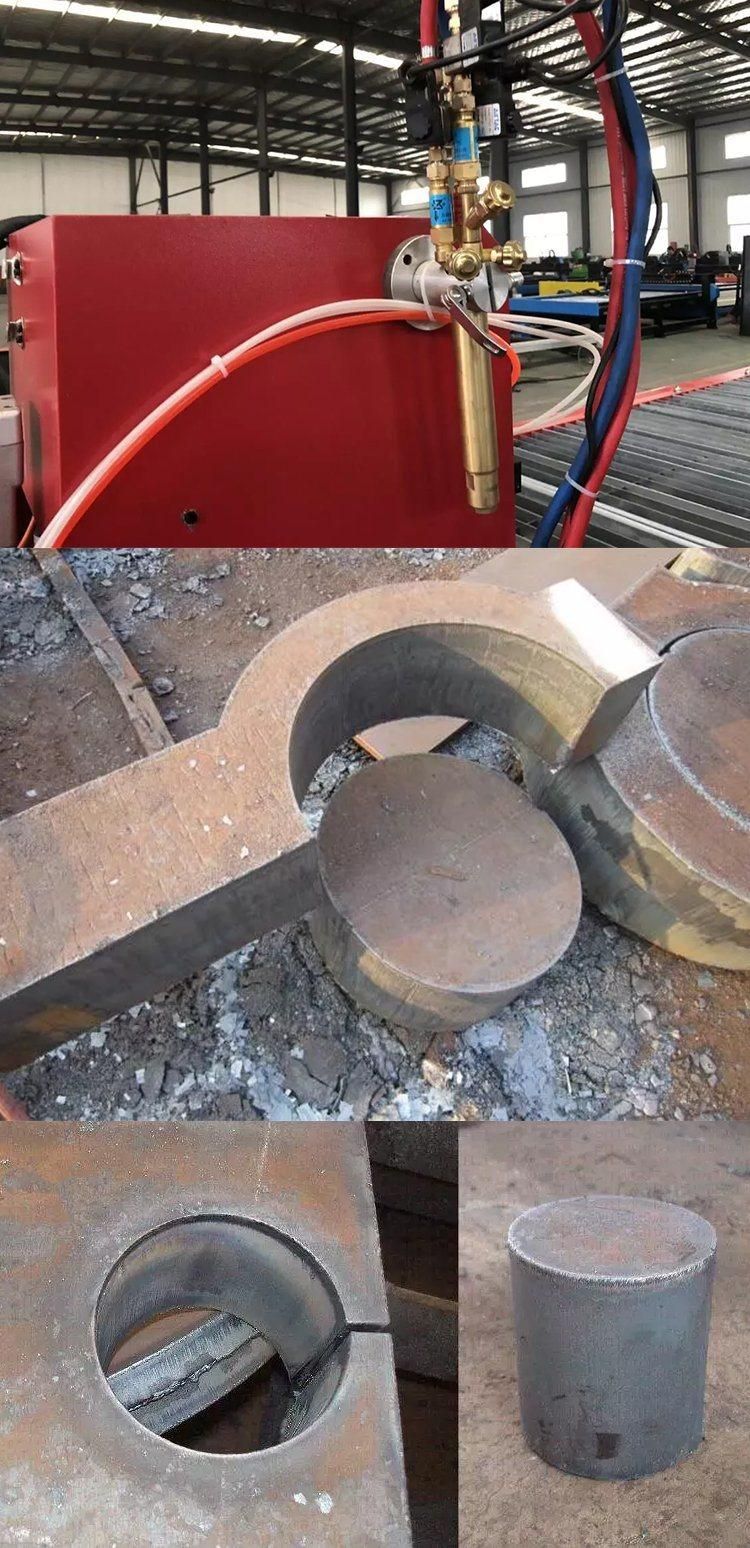

Fire flame plasma cutting head:

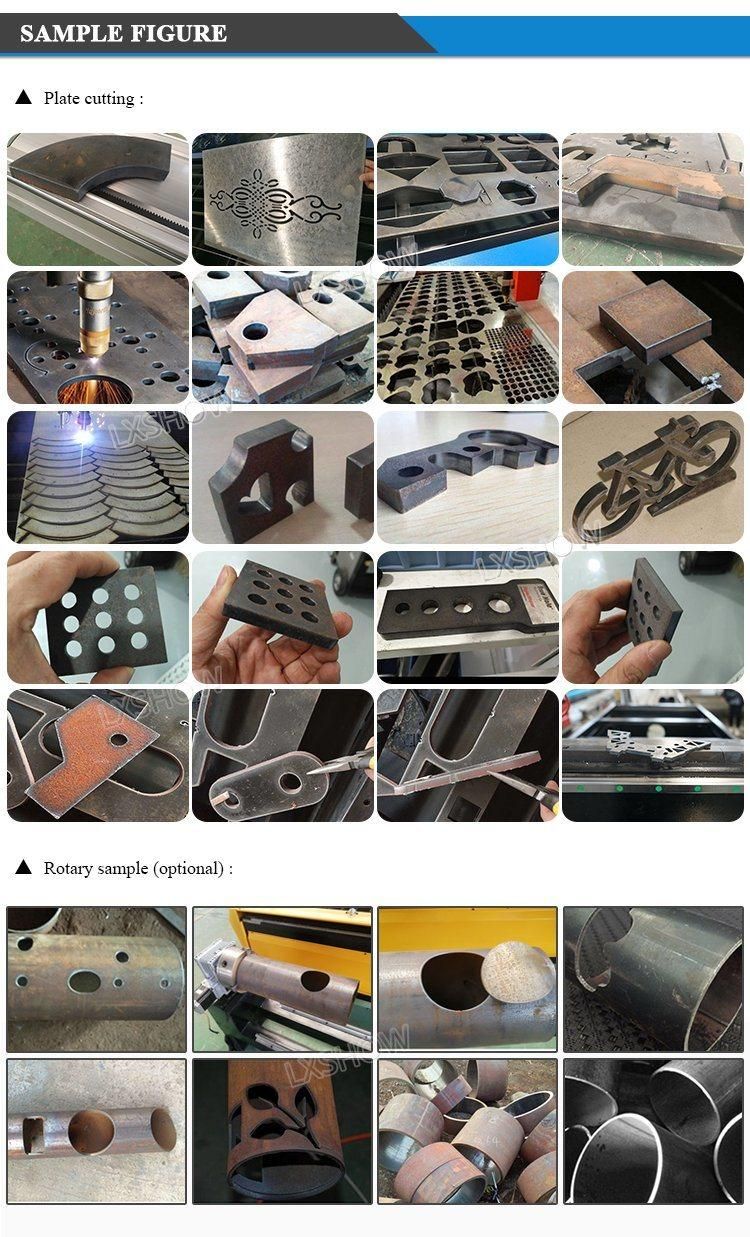

Application:


Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.

Metal industry:

For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.

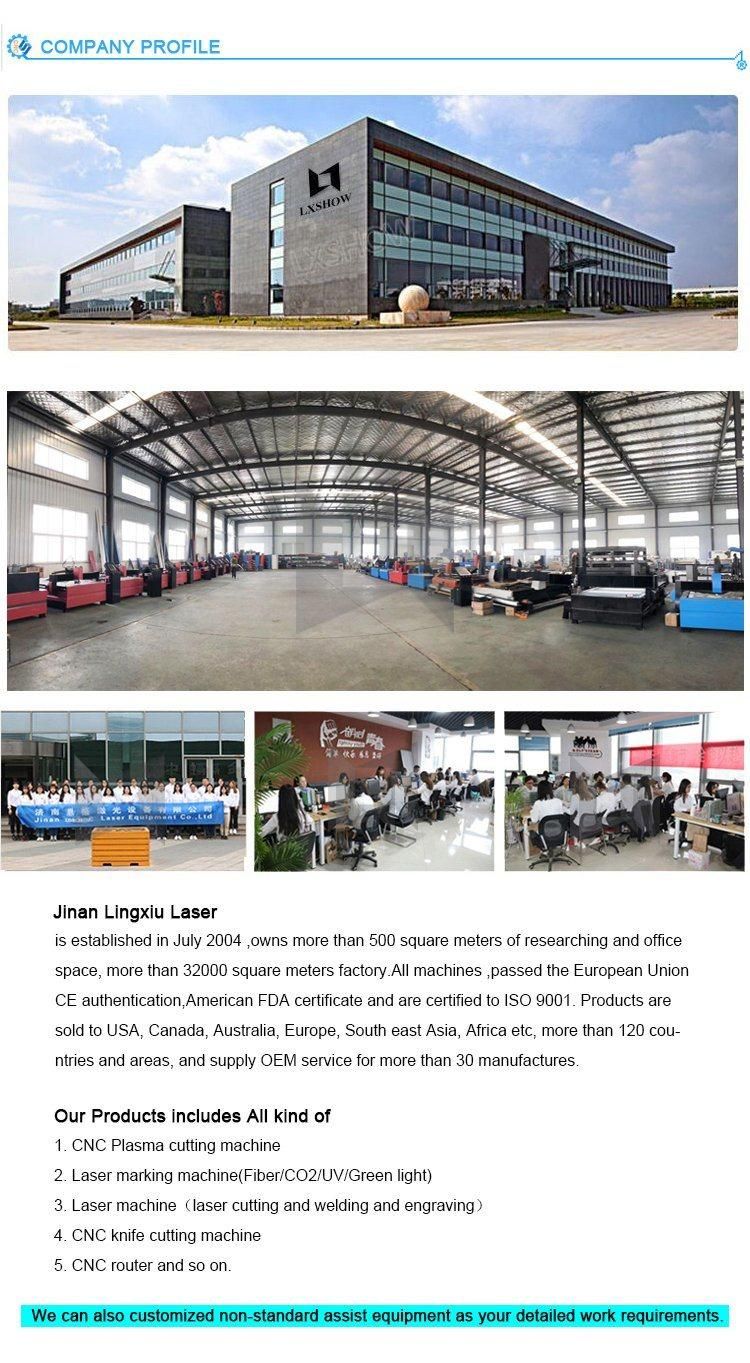

Company Information:
