Metallic Processing Machinery

Type3 Steel Wire Rewinding Machine for Rubber Hose Braiding

Comflex Industrial Co., Ltd.
  • Name:Type3 Winding Machine
  • Wire Diameter::0.3mm To1.0mm
  • Gbg24- Gbg128:Braiding ID4 Till 400mm
  • ID of The Braids:4mm to 600mm
  • No.of Spindles:16 to 128 Spindle Braiding Machine
  • Material of Wires::Stainless Steel,Galvanized Carbo

Base Info

  • Model NO.:comflex
  • Application:for Metal Hose,Rubber Hose
  • Payment Term:T,T
  • Package:Standard Export Package
  • Warrant:One Year
  • Transport Package:Standard Seaworthy Package
  • Specification:GBG16 till GBG128 carrier
  • Trademark:HLT
  • Origin:Jiangsu, China
  • HS Code:844790900
  • Production Capacity:500 Sets,Year

Description

Wire Bobbin Winding machineWinding diameter
(mm)Rotation Speed
(r/min)Wire diameter
(mm)Winding speedGBW-122-16180-5700.25-0.550m/minGBW-182-18180-5700.25-0.550m/min
Picture of products

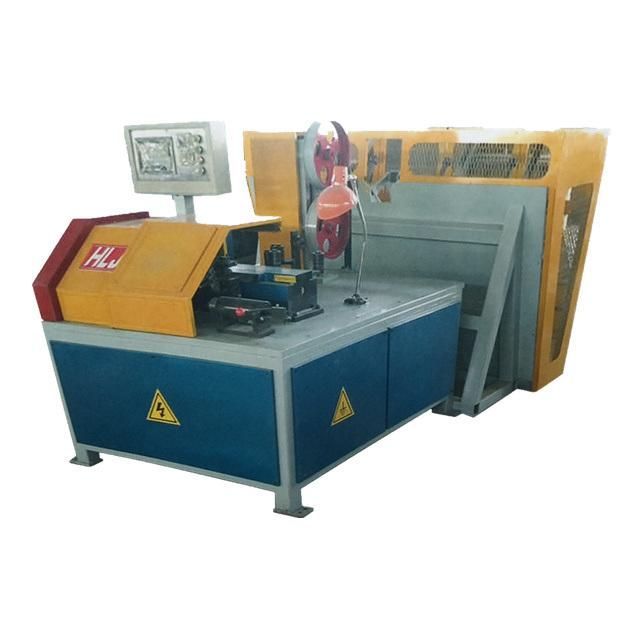

Stainless Steel Wire Re-Winding Machine

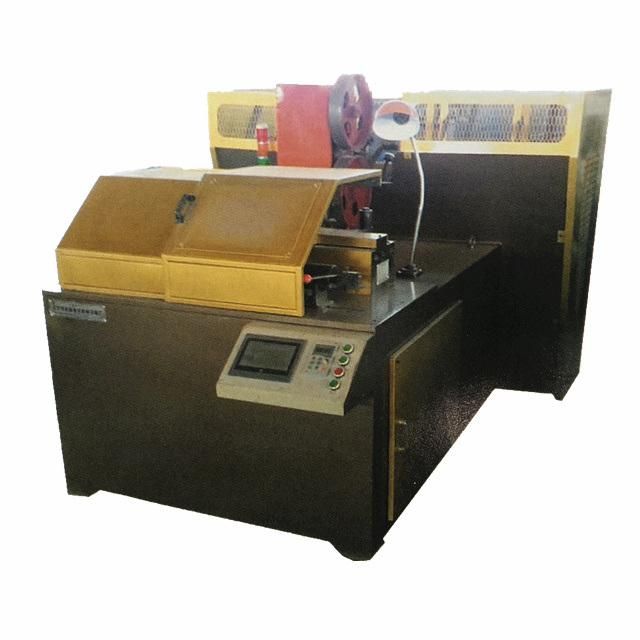

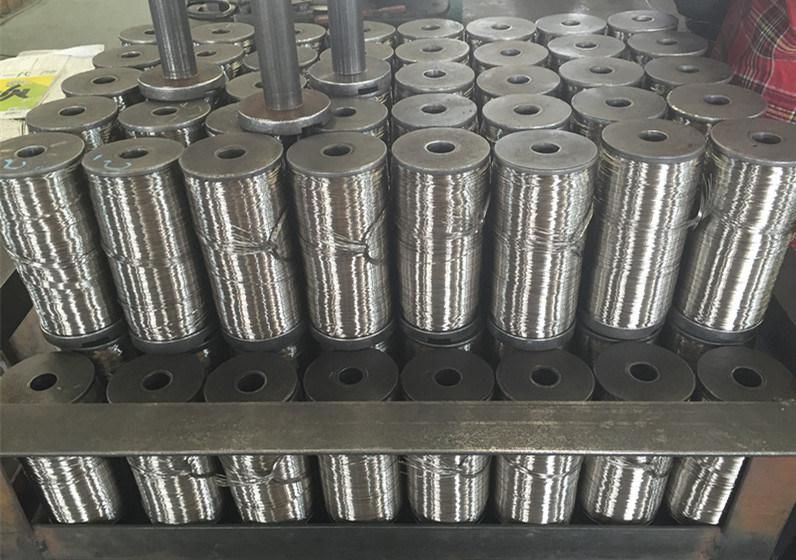

Picture of bobbin winding machine


Type3 Steel Wire Rewinding Machine for Rubber Hose Braiding

Type3 Steel Wire Rewinding Machine for Rubber Hose Braiding

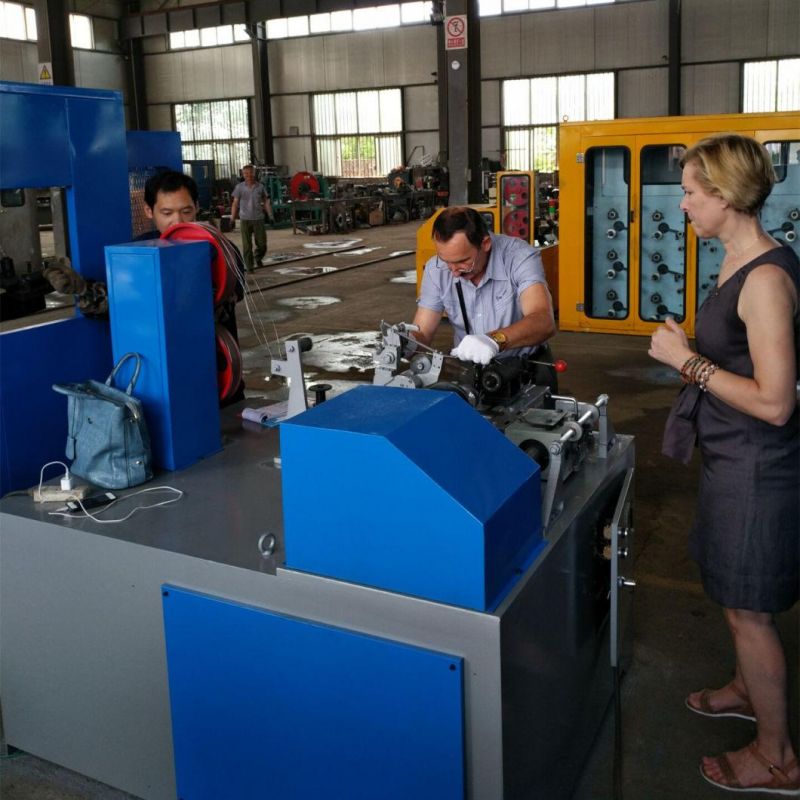

Running test

Stainless Steel Wire Re-Winding Machine


Related machine

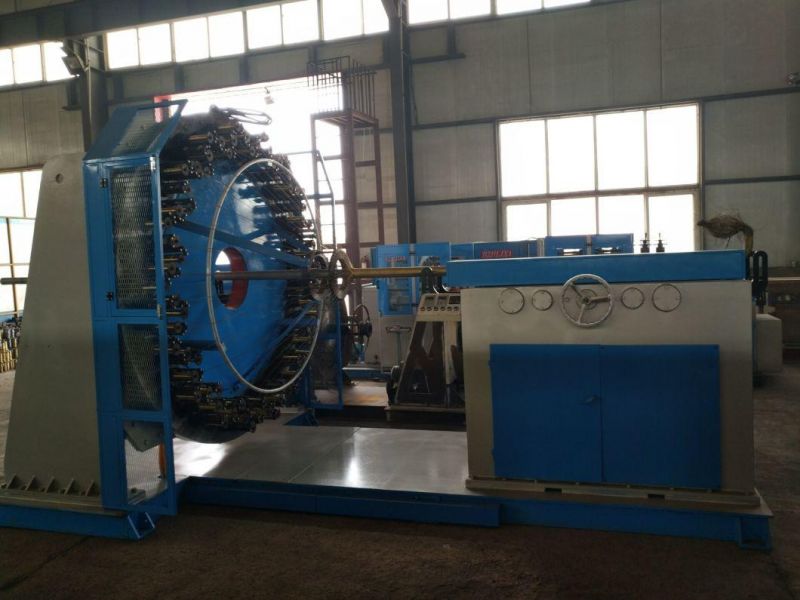

single decker wire braiding machine


Braiding ID/OD of the hose: 30-75mm
Rotation speed of the carrier: 29-72m/h.
Braiding angle:54°44″
Pitch distance:66-166mm
Pulling speed:22-66m/h
No.of carriers:48pcs
Motor power:Y132 M-6 7.5KW

Type3 Steel Wire Rewinding Machine for Rubber Hose Braiding

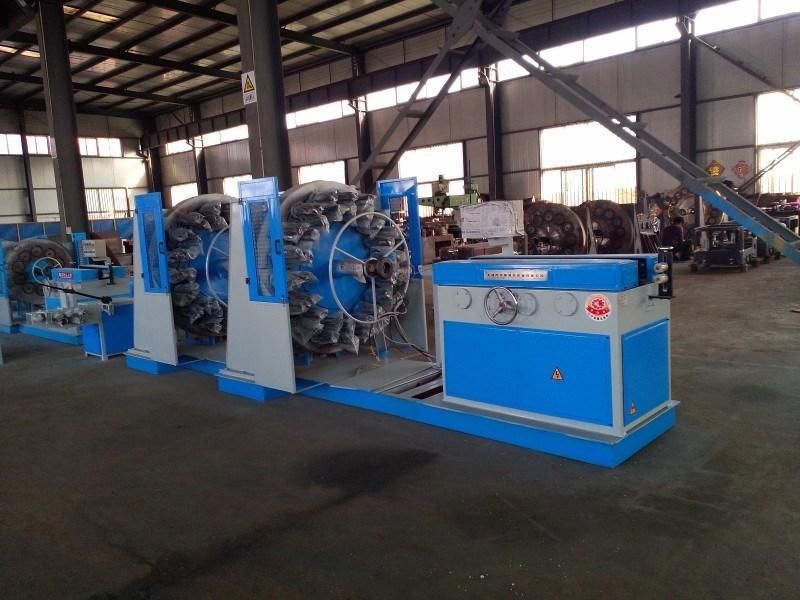

double decker braiding machine

1 Braiding diameter mm 10~31
2 Type Horizontal
3 Traction device type The chain (track)
4 Tracting speed m/h 21~66
5 Carrier Rpm r/min 14.25
6 Braiding pitch distance mm 22~69
7 Braiding angle 54°44′
8 motor Model Y132M-6(Y132M-4)
9 Motor rpm r/min 960 (1500)
10 Motor power kw 3.0Kw (3.0Kw)
11 Equipment dimension mm 4490×1250×1500
12 Equipment weight kg 4000

Type3 Steel Wire Rewinding Machine for Rubber Hose Braiding




Company information
      We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. Our braiding machines are horizontal types which enable heavy tensile strength.



Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery overseas


FAQ for Steel Wire Braiding Machine

1.  Why choose us as your supplier?

    We are most professional in steel wire braiding machine with more than 30
    years of experience

2.  What wires can you machine braid?

A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire

3. What application of your braiding machine?

Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:

1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc.
