• Model NO.：Z94-1c, Z94-2C, Z94-3C, Z94-4C, Z94-5C
• Nail Diameter：0.9-5.5mm
• Material：Steel Rod, Steel Wire
• Transport Package：Wooden Case
• Specification：1700× 1150× 1750mm
• Trademark：YingYat
• Origin：Hebei
• HS Code：8463300000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Z94-1c, Z94-2C, Z94-3C, Z94-4C, Z94-5C Nail Diameter 0.9-5.5mm Material Steel Rod, Steel Wire Transport Package Wooden Case Specification 1700× 1150× 1750mm Trademark YingYat Origin Hebei HS Code 8463300000 Production Capacity 100 Sets/Month

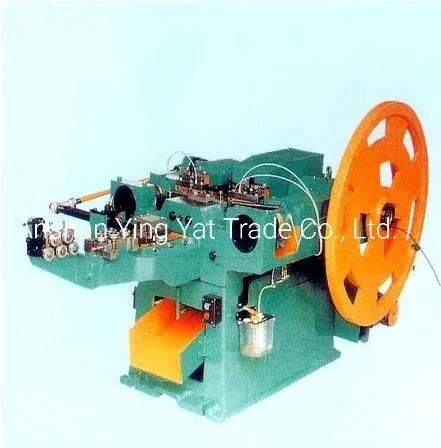

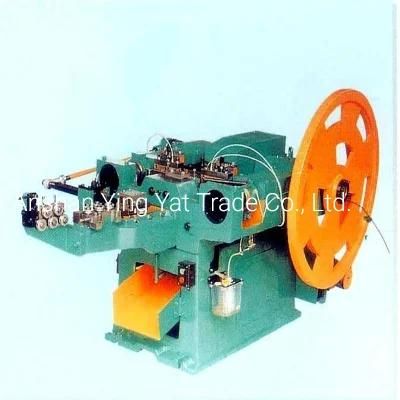

Product Description

Technical Specification	Unit	94----1C
Max diameter	Mm	1.6
Minimum Diameter	Mm	0.9
Maximum Length	Mm	25
Minimum length	Mm	9
Design production	piece/min	450
Motor power	Kw	1.5
Weight	kg	800
Dimensions	Mm	1440×1040×1270

Technical Specification	Unit	94----2 C
Max diameter	Mm	2.8
Minimum Diameter	Mm	1.2
Maximum Length	Mm	50
Minimum length	Mm	16
Design production	piece/min	350
Motor power	Kw	3
Weight	kg	1200
Dimensions	Mm	1700×1300×1400

Technical Specification	Unit	94---3 C
Max diameter	Mm	3.4
Minimum Diameter	Mm	2.0
Maximum Length	Mm	80
Minimum length	Mm	40
Design production	Piece / min	280
Motor power	Kw	3
Weight	kg	1400
Dimensions	Mm	2000×1400×1400



Technical Specification	Unit	94----4C
Max diameter	Mm	5.0
Minimum Diameter	Mm	3.4
Maximum Length	Mm	110
Minimum length	Mm	70
Design production	Piece / min	220
Motor power	Kw	4
Weight	kg	2000
Dimensions	Mm	2400×1600×1650

Technical Specification	Unit	94----5C
Max diameter	Mm	5.0
Minimum Diameter	Mm	3.4
Maximum Length	Mm	180
Minimum length	Mm	70
Design production	Piece / min	220
Motor power	Kw	5.5
Weight	kg	2200
Dimensions	Mm	2600×1700×1700

                                                              Model
                                Nail Pointing Machine(steel wire rod should under 7 mm)
                                Function
                                The thin wire rod pressure
