Automatic Channelume Channel CNC Channel Letter Bending Machine

Shandong Yuantong Century Intelligent Technology Co., Ltd.

Working Principle：Auto Feeding, Slotting and Bending
Availabe Material：Aluminum
Slot Angle：45°-135°(Just for Aluminum)
Bending Radius：≥10mm
Max Processed Width：≤128mm
Material Thickness：Aluminum 0.3-1.5mm

Base Info

Model NO.：BWZ-B1
Machine Power：≤1500W
Machine Size：≤1500W
Machine Weight：320kg
After-Sale Service：Engineer Speaking English Available
Transport Package：Standard Export Package Which Can Protect Machine
Specification：CE
Trademark：BaoYuanTong
Origin：Weifang, China
HS Code：84798190
Production Capacity：200sets,Month

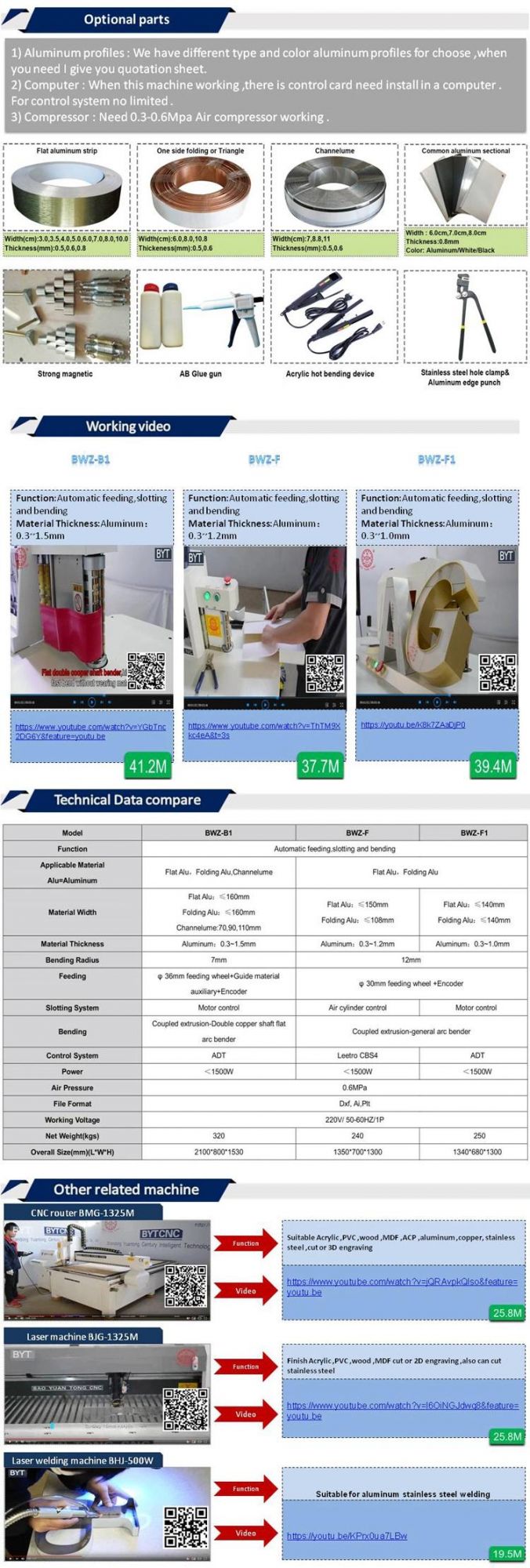

Description

Model

BWZ-B1

BWZ-F BWZ-F1

Function

Automatic feeding,slotting and bending

Automatic feeding,slotting and bending

Applicable Material

Alu=Aluminum

Flat Alu,Folding Alu,Channelume

Flat Alu,Folding Alu Flat Alu,Folding Alu

Material Width

Flat Alu:≤160mm

Folding Alu:≤160mm

Channelume:70,90,110mm

Flat Alu:≤150mm

Folding Alu:≤108mm

Flat Alu:≤140mm

Folding Alu:≤140mm

Material Thickness

Aluminum:0.3~1.5mm

Aluminum:0.3~1.2mm

Aluminum:0.3~1.0mm

Bending Radius 7mm 12mm

12mm

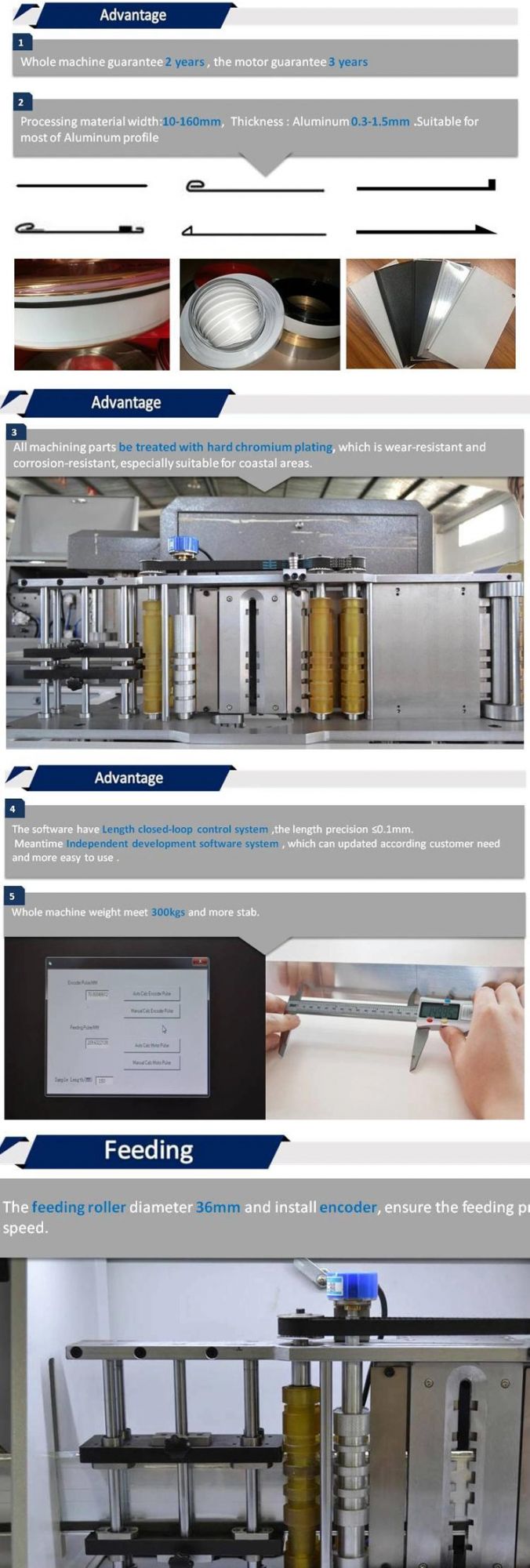

Feeding φ36mm feeding wheel+Guide material auxiliary+Encoder φ30mm feeding wheel +Encoder

φ30mm feeding wheel +Encoder

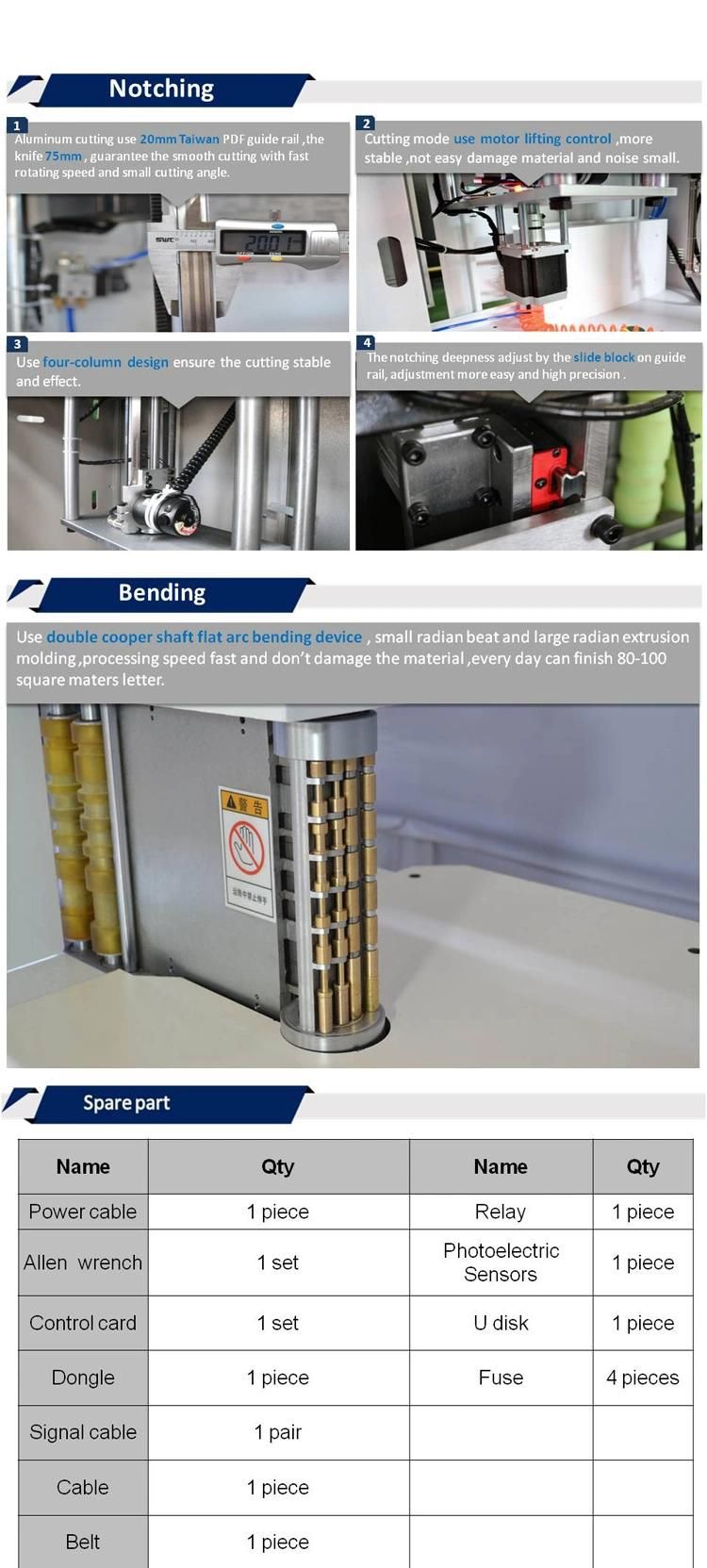

Slotting System Motor control

Air cylinder control

Motor control

Bending

Coupled extrusion-Double copper shaft flat arc bender Coupled extrusion-general arc bender Coupled extrusion-general arc bender Control SystemADTLeetro CBS4ADT Power<1500W<1500W<1500W Air Pressure0.6MPa0.6MPa0.6MPa File FormatDxf, Ai,PltDxf, Ai,PltDxf, Ai,Plt Working Voltage220V/ 50-60HZ/1P220V/ 50-60HZ/1P220V/ 50-60HZ/1P Net Weight(kgs)320240250 Overall Size(mm)(L*W*H)2100*800*15301350*700*13001340*680*1300
