• Model NO.：GW-HY72
• Certification：CE, ISO9001
• Type：Power Cabniet
• Melting Material：Steel Alloy, Copper, Aluminum, Iron
• Transport Package：International Export Packing Standard
• Specification：CE, ISO, SGS
• Trademark：Hengyang
• Origin：China
• HS Code：8514200090
• Production Capacity：58sets,Month

Basic Info.

Model NO. GW-HY72 Certification CE, ISO9001 Type Power Cabniet Melting Material Steel Alloy, Copper, Aluminum, Iron Transport Package International Export Packing Standard Specification CE, ISO, SGS Trademark Hengyang Origin China HS Code 8514200090 Production Capacity 58sets/Month

Product Description

Product Description
We are one of the largest leading intermediate frequency furnace manufacturers in China. We have been ISO 9001 and CE certified, achieved the quality management of international practice. Our company had been awarded High Quality Product and Faithful Organization Prizes by our government.

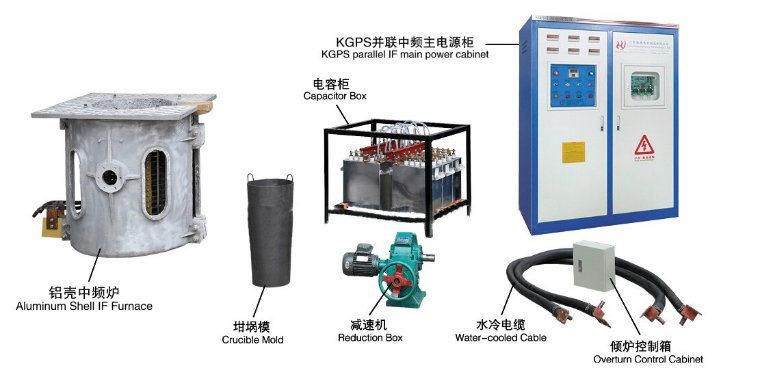

Our main product includes Energy Saving Intermediate Frequency Melting Furnace, Intermediate Frequency Induction Furnace, Metal Furnace, Melting Furnace, Induction Heating Furnace etc. Our Product is widely applicable to melting, warming or insulating of steel, cooper, aluminum, zinc, gold, silver or other metal or alloy, heating treatment before forging, sintering and tube-bending forming, and quenching, tempering or other heating of mechanical parts in casting and melting industries.

We are committed to deliver "turnkey" project covering not only quality and reliable products but also application related products but also application related process, technology and operator training for free f charge. We have separate after-sales department to perform regular follow-up service and reassure customers by directly solving of any problem emerged in practical production.






Product Feature
1. Products are widely used in metal melting
2. Fast melting, efficient energy saving
3. Top quality
4. More than 20 years experience

Product Specification/Models
Type: Induction Furnace

Usage: Melting Furnace

Rate Power: 220KW

Rate Capacity: 150KG

Max Capacity: 165KG

Input Voltage: 380V

Out Voltage: 750V

Output Frequency: 2.5

Melting Time: 23Min

Water Cooling: 6T/h






We always have stocks so can arrange the shipment very fast!

We uphold "first quality, first customers, first service"

Sincerely provide service for you!

Furnace Capacity	Rating Power	Input Voltage	Input Phase	Input Current	Assorted Transformer	Output Voltage	Output Frequency	Melting Time	Volume	Weight
10-50KG	50KW	380V	3	80A	60KVA	750V	2.5KHZ	20-60Min	1.2 m³	350KG
100KG	100KW	380V	3	160A	120KVA	750V	1KHZ	20-60Min	6 m³	1500KG
150KG	100KW	380V	3	160A	120KVA	750V	1KHZ	30-70Min	6.5m³	1600KG
200KG	120KW	380V	3	192A	150KVA	750V	1KHZ	30-70Min	7.5m³	1700KG
300KG	130KW	380V	3	208A	150KVA	750V	1KHZ	30-70Min	8.5m³	1800KG
500KG	250KW	380V	3	400A	315KVA	750V	1KHZ	30-70Min	9.5m³	2300KG
600KG	350KW	380V	3	560A	400KVA	750V	1KHZ	40-80Min	11m³	2500KG
750KG	450KW	380V	3	720A	500KVA	750V	1KHZ	40-80Min	12m³	3800KG
1000KG	600KW	380V 380V-2	3/6	960A 480A	600KVA 800KVA	750V 1300V	0.8KHZ	50-90Min	13m³	4500KG
1250KG	800KW	380V 380V-2	3/6	1280A 640A	800KVA 1250KVA	750V 1300V	0.8KHZ	50-90Min	14m³	5000KG
1500KG	1000KW	380V 380V-2	3/6	1600A 800A	1250KVA 1500KVA	750V 1300V	0.8KHZ	50-90Min	15m³	5500KG
2000KG	1250KW	660V 380V-2	3/6	1120A 1000A	1500KVA 1800KVA	1300V	1300V	50-90Min	17m³	6000KG
3000KG	1500KW	660V 380V-2	3/6	1350A 1200A	1800KVA 2000KVA	1300V	1300V	60-100Min	20m³	7000KG
5000KG	2500KW	1000V 660V-2	3/6	2000A 1120A	3000KVA 3500KVA	1300V	1300V	60-100Min	23m³	8500KG
