Hengyang Metal Induction Melting Furnace
Foshan Hengyang Furnace Manufacturing Co., Ltd.- Control Type:PLC
- Customized:Customized
- Condition:New
- Automatic Grade:Automatic
- Type:Special Casting
- Size:Gw-0.3t-40t
Base Info
- The Maximum Output Power:100-15000(Kw)
- Max Power Input:160-20000(Kw)
- If Output Voltage:750-1800(V)
- If Output Current:160-3000(a)
- Output Oscillation Frequency:300-1000(Hz)
- Transport Package:International Export Packing Standard
- Specification:CE, ISO, SGS
- Trademark:HENGYANG
- Origin:China
- HS Code:8514200090
- Production Capacity:76sets,Month
Description
530750 574 1800 707 990 1480 GW--3T 2000 750 820 2500 1010 990 1480 0.5 50-70 580 430 520 GW--5T 3000 950 1140 4000 1190 1260 1900 0.3 50-80 570 420 510 GW--10T 6000 950 2280 8000 2380 1260 1900 0.3 50-90 560 410 490 GW--15T 8000 950 1520 10000 1590 1260 1900 0.3 50-90 550 400 480 GW--20T 10000 950 1900 12500 1980 1260 1900 0.25 50-90 530 400 470 GW--30T 15000 950 2850 20000 2980 1260 1900 0.25 50-90 520 400 450
Advantages of Induction Melting Furnace:
1. This kind of furnace has the advantages of high melting efficiency, good power saving effect, compact structure and strong overload capacity.
2. The surrounding of the furnace is low temperature, smoke less, the working environment is good .
3. Simple operation and reliable operation.
4. Fast temperature heating-up, furnace temperature easy to control, high production efficiency.
Product Details:
Spare part 1:Thyristor
Brand: TECHSEM Group and CSR Group, the above two companies are leading thyristor manufacturing industry in China
Function: Stable, have strong ability to resist strong current, durable, not easy to damage
Spare part 2:Control circuit board
Brand: Hengyang Furnace, developed by our own R&D Team
Function: Double tested before production, carefully checking, have a great control on the quality, every customer comment its stablility.

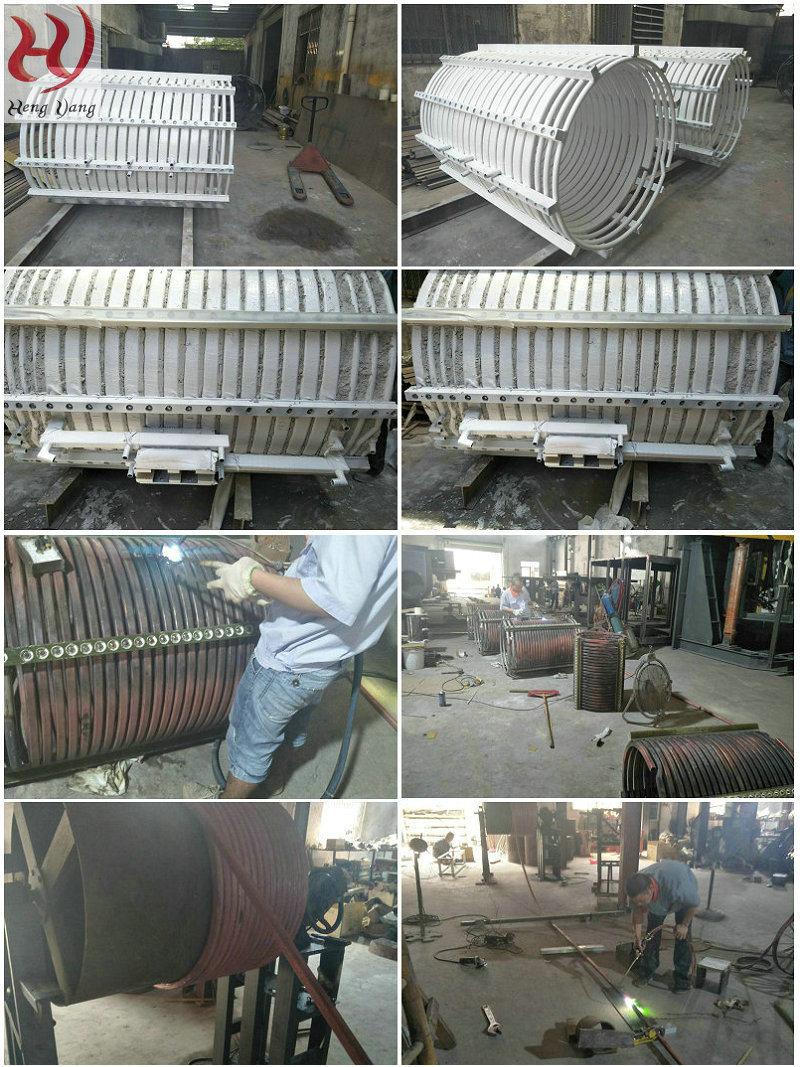

Spare part 3:Induction coils
Induction coil installs in the central of the furnace, it has spiral body with rectangular empty brass circle around, the pipe center should be cooled with water. Copper bar outside induction coil will connect with water-cooling cable. The lining closes to induction coil, which made by burden, the method you can find in related parts below.
Safety Protection:
• Main circuit short circuit protection
• Main circuit phase loss protection
• Main circuit phase fault protection
• SCR over-current protection
• SCR overvoltage protection
• Cooling water temperature protection
• Low water pressure protection
• Furnace leakage protection
• Intermediate frequency power failure protection
• Intermediate frequency electric furnace fault protection rate and increase the life obviously
Why Choose us?
1,Low power consumption
Large current system made of pure copper as conductive medium, the whole circuit with less resistance. Electrode arm shaped as copper-clad box type, resistance and heat can be reduced efficiently. Reasonable arrange of all conductive systems to minimize the resistance of every circuit.
2,Safety & Stability
Full set of hydraulic driving system equipped with accumulator to ensure stability of facilities in the operation process. Whist, equipments can go on the motion when there any emergency accidents happen.
3,High Power Factor
Our power factory could reach over 98%, which could greatly reduce the capacitor box quantities. However we still equip enough capacitor box quantities, which mean your furnace is much much more efficient.
4.High flexibility & Maximum simplicity of operation
HMI used in electrical automation control, interface simulates the real form of furnace, which make the operation more convenient. Mixing feedstock, charging feedstock, melting, tapping all the commands can be implemented by computer.
5.More Durable
We get 6 thyristors on the left, 8 on the right, so even if one thyristor is damaged, our furnace still could be continued use. But many other factories only get only 4 on the right,the whole equipment cannot be used anymore when one thyristor is damaged.
After-sales service:
a. Cooperate with guidance to check the buyer installation work;
b. Internal and electrical wiring connections between equipment;
c. Site commissioning;, according to the actual equipment adjust to the best state;
d. Direct buyer operating personnel to the correct use of operating equipment;
e. Guidance on site security considerations;
f. To guide the buyer maintenance personnel troubleshooting methods;
g. Provide equipment specification;
Supplier responsibility:
a. Cooperate with guidance to check the buyer installation work;
b. Internal and electrical wiring connections between equipment;
c. Site commissioning;, according to the actual equipment adjust to the best state;
d. Direct buyer operating personnel to the correct use of operating equipment;
e. Guidance on site security considerations;
f. To guide the buyer maintenance personnel simple troubleshooting methods;
g. Provide equipment specification;
