Product Description

Note: This product is just a sample part we once machined according to a customer's drawing, and the price shown on this page is NOT the real price.

Our procedure for customizing parts for you is as follows:

1. Customer provides 2D or 3D drawings;
2. We quote the prices according to your drawings(we can also design the parts according to your specific requirements);
3. Orders are confirmed by both parties;
4. We start to put your parts into machining;
5. We package and deliver the parts the customer;

Description of This Part

Material
6061-T6

Workpiece type

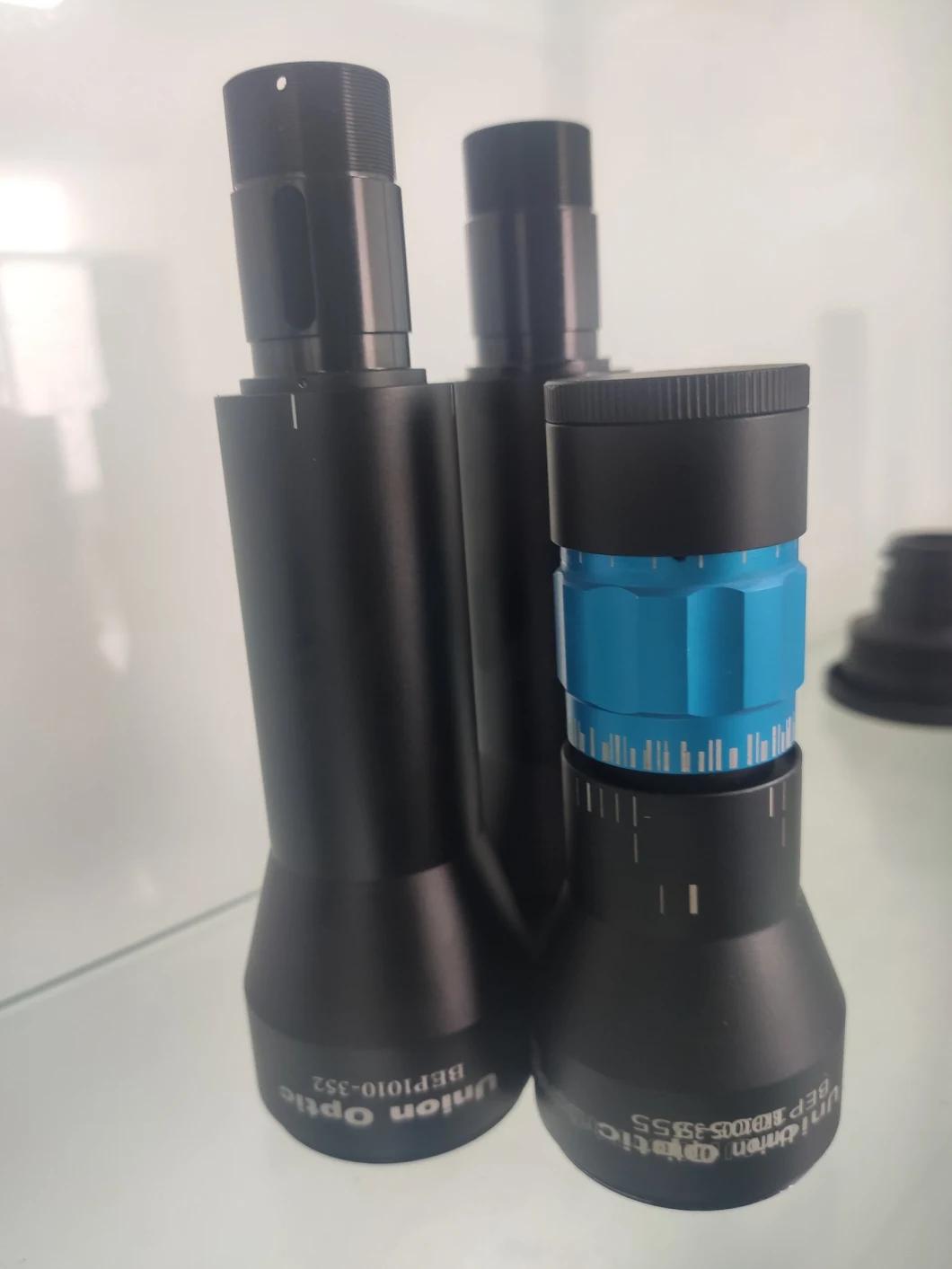

This workpiece is the case of the optical lens, which needs to be equipped with optical components in the middle, with high precision requirements. The figure includes the lens barrels, focusing barrels and lens covers.

Machining Characteristics
1.Lathe rough turning, and stock is left out.
2.Aging treatment to remove the cutting stress in the workpiece.
3.Lathe finish machining, with dimensions machined to the requirements, cylindricity of installation positions of internal optical components is within 0.007mm, and concentricity within 0.01mm.
 4. Finish milling of inside and outside the workpiece is done by 4+1 axis machining center, and the position accuracy and perpendicularity shall be within 0.02mm.
 5.Laser engraving on lens barrels and focusing barrels

Surface Treatment
Sand blasting 320# + Black anodizing + blue oxidation + laser carving, meeting the requirements of environmental protection

Inspection
The places where accuracy is required meet the requirements of drawing, and the flatness and perpendicularity are within 0.02mm, and cylindricity 0.007mm , and concentricity 0.01mm. It is tested with CMM, and reports of finished products from CMM are generated.

After assembly, the focusing is ensured to be smooth and accurate.
