• Model NO.：C41-25KG
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Beat Weight：25kg
• Packing Size(Cm)：80X41X121
• Transport Package：Wood Case
• Specification：CE ISO9001
• Trademark：WELLON
• Origin：China
• HS Code：84621090
• Production Capacity：200PCS,Month

Basic Info.

Model NO. C41-25KG Customized Customized Advantage Use Widely Condition New Beat Weight 25kg Packing Size(Cm) 80X41X121 Transport Package Wood Case Specification CE ISO9001 Trademark WELLON Origin China HS Code 84621090 Production Capacity 200PCS/Month

Product Description

Performence Features:
1. It is used for forging and shaping work pieces
2. It is easy to operate through controlling the travel of top swage.
Features

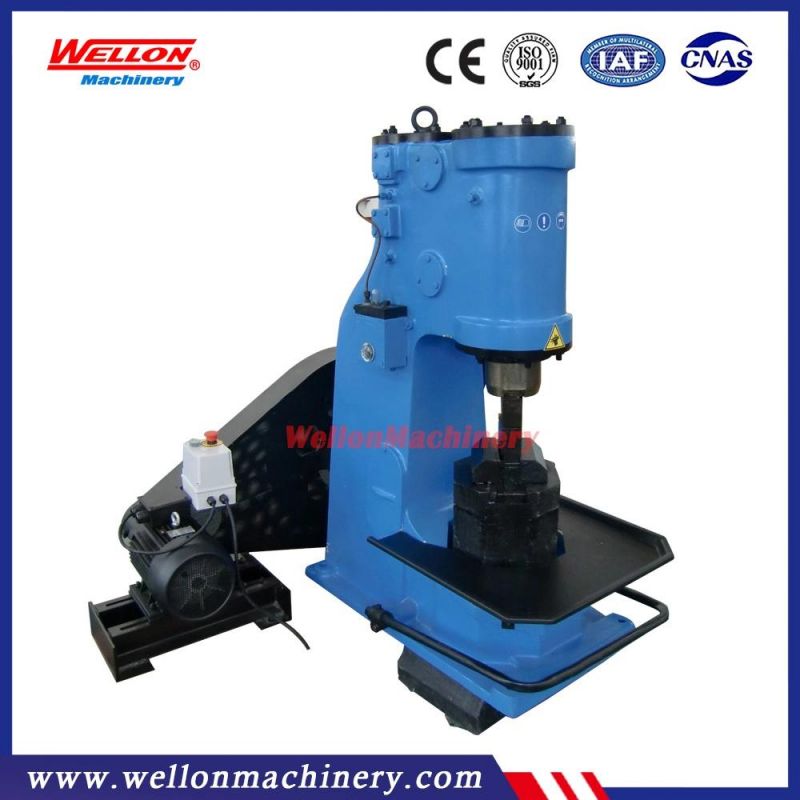

1. The air hammer is used for forging and shaping work pieces
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest
lever.
3. It's models range from 16KG to 75KG
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling,
forging, welding, bending and twisting

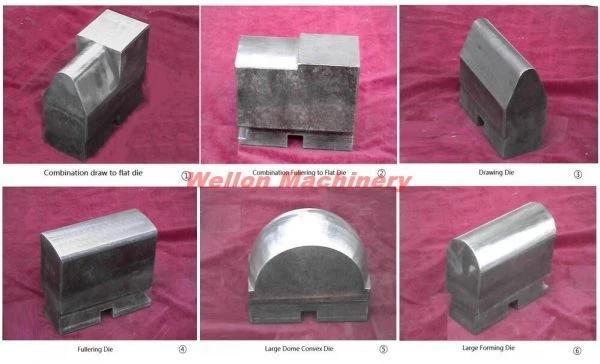

It is also used for forging in bolster dies.
Technical parameter:

Model	C41-25KG
Beat weight(kg)	25
Beat capacity(kgf-m)	270
Height of working(mm)	240
Beat times/minute	250
Length of rectangular(mm)	40X40
Length of circular(mm)	φ45
Power (kW)	2.2
Speed of motor (rpm)	1440
Weight of anvil block(kg)	250
Packing Size(cm)	80X41X121
N.W./G.W.(kg)	760/860
