• Model NO.：1007 780
• Transport Package：Box
• Specification：standard
• Trademark：OPTI IG02
• Origin：China
• HS Code：842490900
• Production Capacity：100000PCS , Year

Basic Info.

Model NO. 1007 780 Transport Package Box Specification standard Trademark OPTI IG02 Origin China HS Code 842490900 Production Capacity 100000PCS / Year

Product Description

Jiangsu Xintu Coating Machinery Co.ltd. is one of the leading manufacturer of powder coating equipment and flocking machines and receplacement parts for all famous brand guns.

1.powder coating equipment include: powder spray guns, high voltage cascade(waterfall), circuit board systems, powder coating line, powder curing ovens and powder spray booths, automatic powder coating reciprocator system.
2. Flocking machine:  3D box flocking machine,electrostatic flocking spray machine, flocking printing machine, automatic clothing flocking machine,flocking line. ..

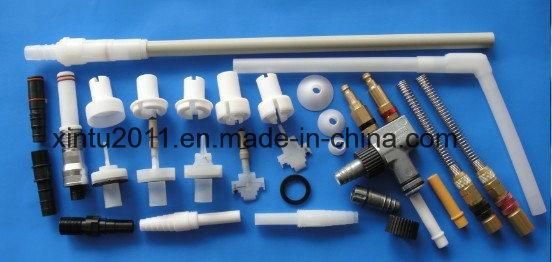

3.Spare parts for powder guns : High voltage cascade, circuit board system, powder gun nozzles, powder injector /pump, venturi tube, nozzle extensions, gun casing, fluidizing plate.gun cap nut...

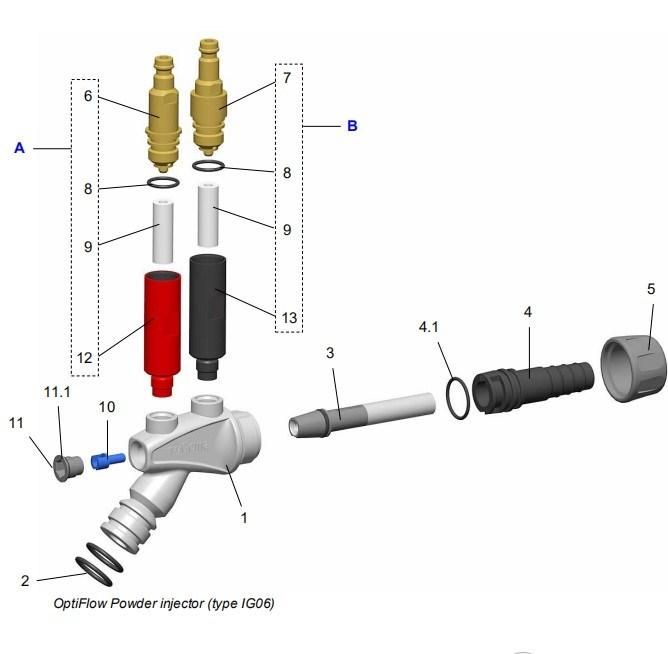

OptiFlow Powder injector (type IG06)

OptiFlow IG06 Powder injector - complete (pos. 1-13) 1007 780
A Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12) 1005 589
B Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and
13) 1005 590
C Injector body - complete (incl. pos. 1, 2, 10 and 11) 1006 530
1 Injector body (without pos. 2) 1006 484
2 O-ring - Ø 16x2 mm 1007 794#
3 Insert sleeve - Teflon, complete 1006 485#
4 Hose connection - Ø 10-12 mm, complete (incl. pos 4.1) 1006 531
4.1 O-ring - ? 16x1.5 mm 205 141#
5 Threaded sleeve     1006 483
6 Connector (conveying air) - NW 5.5    1004 366
7 Connector (supplementary air) - NW 5.5 1004 367
8 O-ring - ? 11x1.5 mm 1000 532#
9  Filter element - ? 9/4x27 mm 1003 698
10  Nozzle  1006 488
11  Nozzle fixation - complete (incl. pos. 11.1)  1007 792
11.1  O-ring - ? 8x1 mm  1007 793#
12  Body (red)  1004 369
13  Body (black) 1004 370

if you are interested in any parts of them, please don't hesitate to contact us !





 We supply a varity of spare parts for electrostatic powder coating guns, such as Flat nozzle, electrode holder ,round nozzles, gun deflector, powder pump, powder gun cascade, board system Price is low but high quality
