• Model NO.：Multi Cyclone Recovery Systemm
• Specification：9 small cyclones recovery system
• Trademark：COLO
• Origin：China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Multi Cyclone Recovery Systemm Specification 9 small cyclones recovery system Trademark COLO Origin China Production Capacity 100 Sets/Month

Product Description

Cyclone Recovery System for Powder Coating Booth

Multi-cyclone units are used as a powder recovery system for powder coating line booth.They are characterized by their compact design and high separation effciency.

ø Compact size
ø Small space requirements
ø High removal effciency
ø Low waste volume in after-filter
ø High specific suction capacity

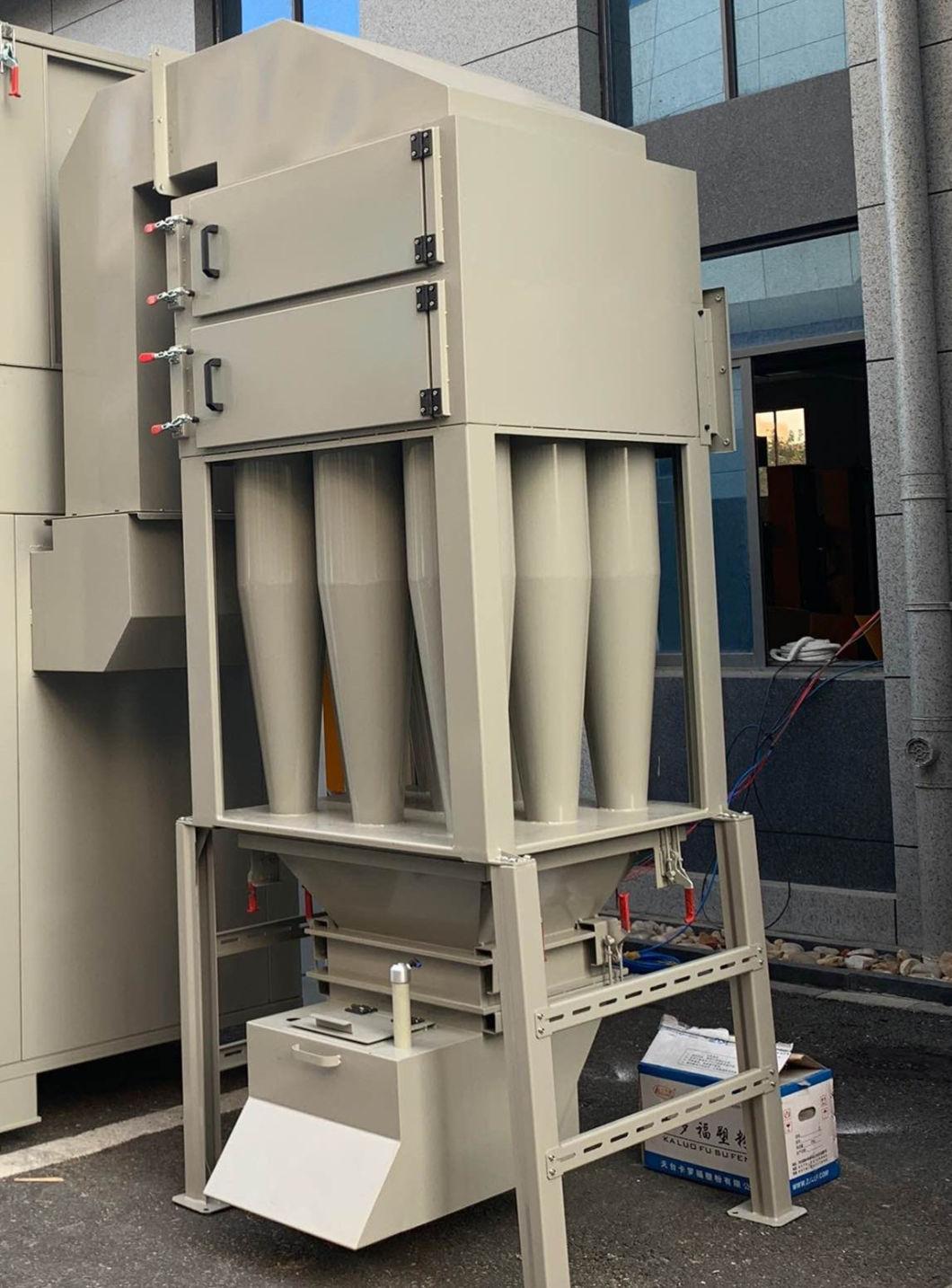

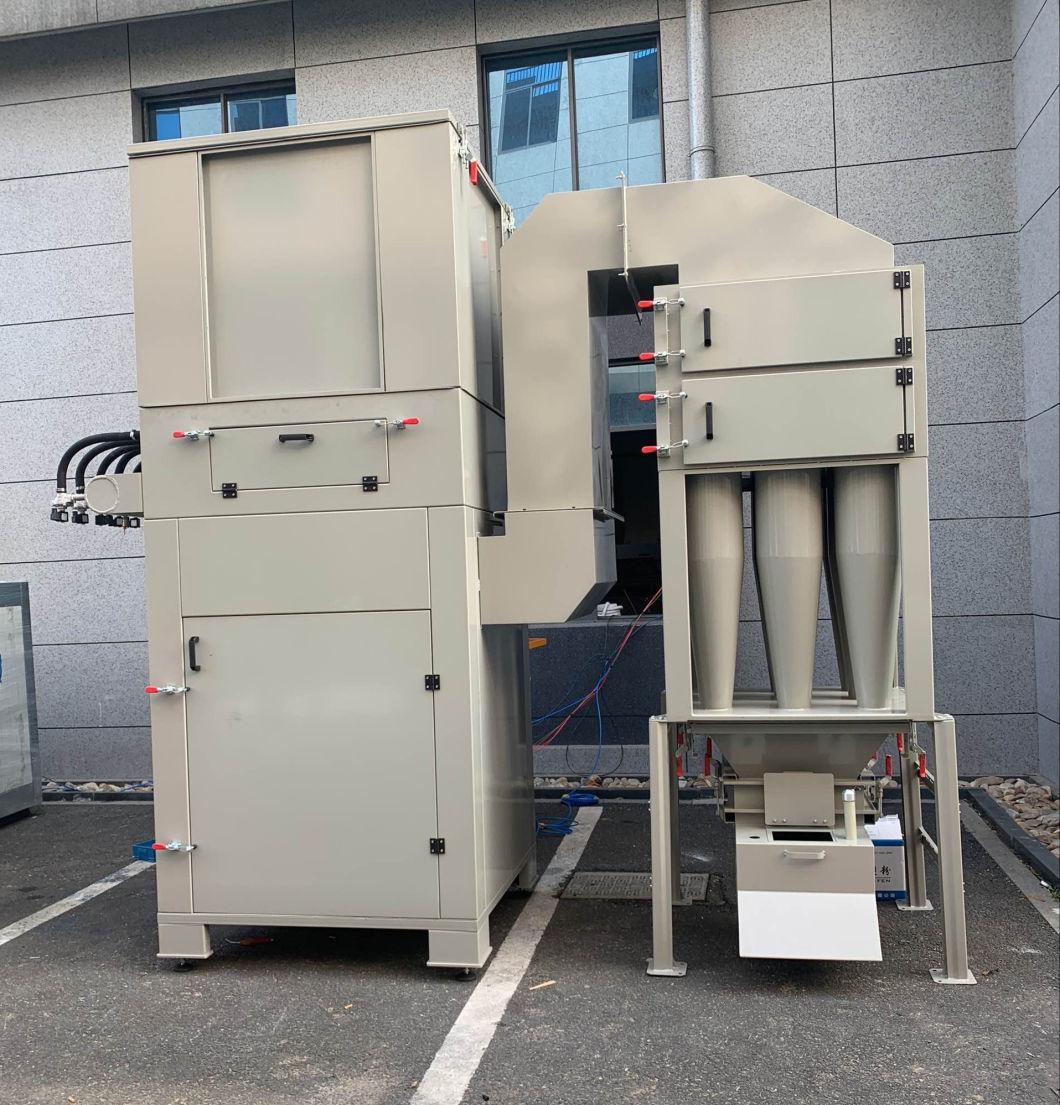

COLO Multi-Cyclone Recovery System

This is 9pieces cyclone with second filter recovery system,two recovery step, the powder recovery rate can reach 95% or more,realize fast color change,high efficiecy and reliable for powder coating recovery.System made of powder coated galvanized sheet.

Multi Cyclone Recovery System
Maximum powder efficiency of 98.5% with a very good life gives the Multicyclone an edge over other powder recovery systems. The high velocity of powder in the multicyclone reduces powder sticking, so cleaning time is negligible. Over sprayed powder is then sucked in by the blower through a cyclone recovery system, powder collected in the bottom bin, can be reused.

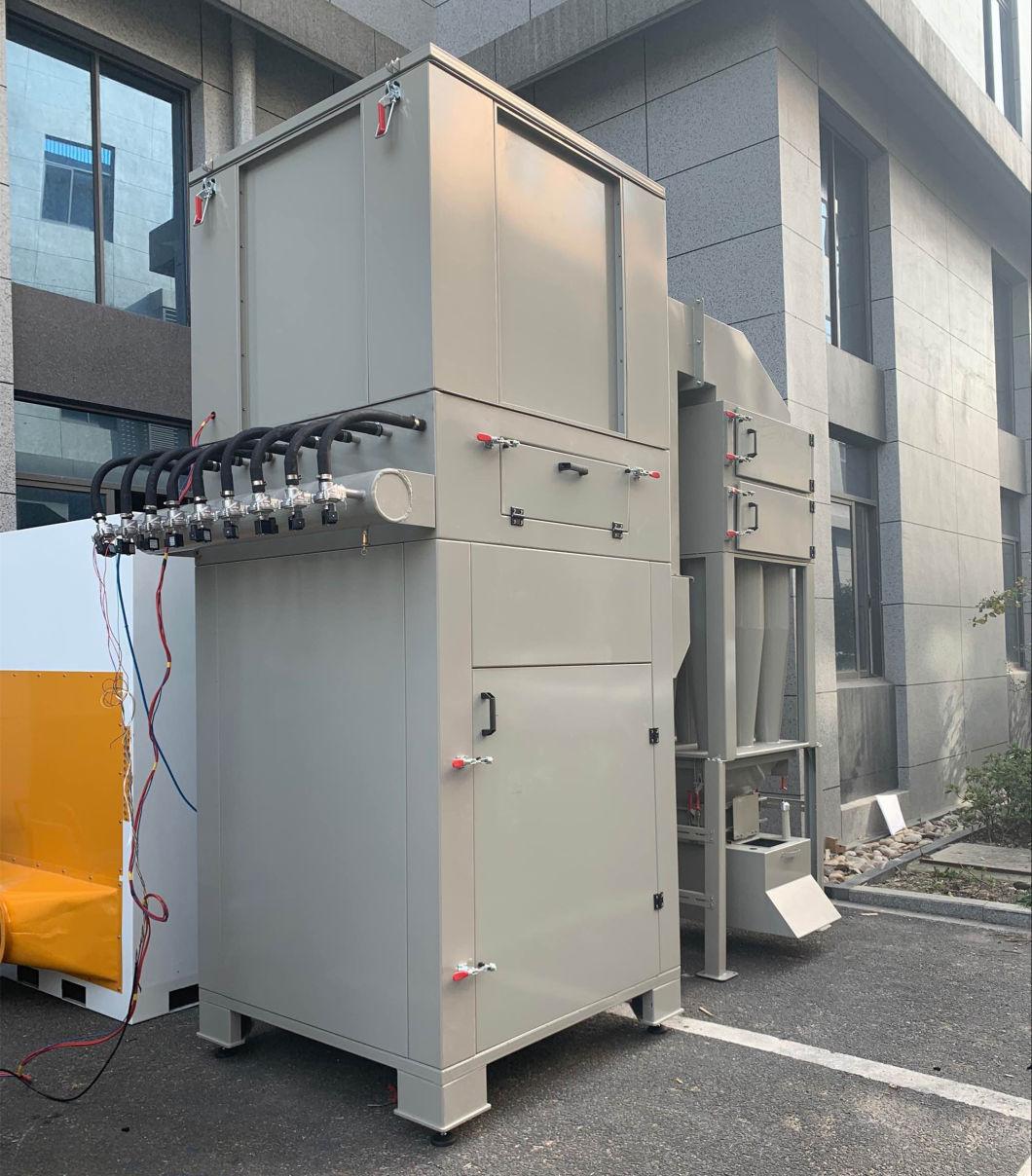

After Recovery system - Post Filter
Multi-cyclone helps in maximum utilization of chargeable powder. Very fine powder which is less than 0.5 micron (does not catch static charge) need to exhaust as per the pollution control laws, required to be arrested. The post filter arrests this powder and gives out breathable air.
A number of filter cartridge are mounted inside the sealed metallic chamber. The air enters the chamber and the filtration occurs 'outside in'. Periodic purge removes the powder and clean the cartridge. Clean air is given out through the blower outlet.
Bag filter is also used for recollecting such useless powder. These bags are made of non oven filter media.

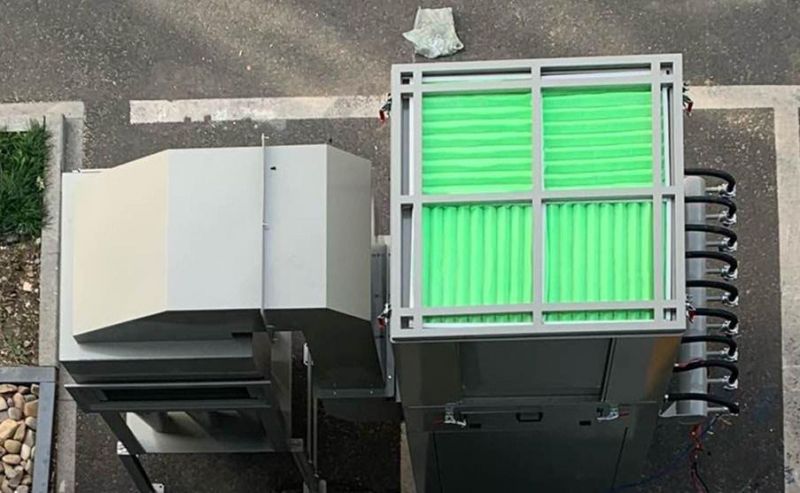

After filter recovery system roof covered with filters, to stop any filters fly into the air,keep clean air.

If you are looking for the cyclone powder recovery system for your booth, pls feel free to contact me.
