• Model NO.：6090
• Warranty：18 Months
• Customized：Customized
• Condition：New
• Service：Offering Oversea Service
• Voltage：110V,220V
• Xyz Transmission：Tbi Ball Screw and Hiwin Linear
• Table：Tab T-Slot
• Driver：Leadshine or Optional
• Inverter：Fuling
• Cutting Material：Stone Metal or Wood
• Service Provided：Engineers Available in Oversea
• Xyz：Xyz Axes Use Tbi Screw
• Spindle：1.5kw,2.2kw Water Cooling Spindle
• Transport Package：Woodencase
• Specification：600x600x140mm
• Trademark：ALLWIN
• Origin：Jinan, Shandong
• HS Code：8465990000
• Production Capacity：500,Month

Basic Info.

Model NO. 6090 Warranty 18 Months Customized Customized Condition New Service Offering Oversea Service Voltage 110V/220V Xyz Transmission Tbi Ball Screw and Hiwin Linear Table Tab T-Slot Driver Leadshine or Optional Inverter Fuling Cutting Material Stone Metal or Wood Service Provided Engineers Available in Oversea Xyz Xyz Axes Use Tbi Screw Spindle 1.5kw/2.2kw Water Cooling Spindle Transport Package Woodencase Specification 600x600x140mm Trademark ALLWIN Origin Jinan, Shandong HS Code 8465990000 Production Capacity 500/Month

Product Description

Technical Features:
1 whole machine cast by iron, very strong.
2 Taiwan Hiwin square rails and TBI ball screw for 3 axis
3 France schneider electrical parts and Japan OMRON limit switch
4 5 axis rotary with speed reducer, stainless steel water tank
5 stepper motor and leashine driver, 5 axis MACH 3 control system
Applicable materials:
PVC board,ABS, double-color board,acrylic,MDF,stainless steel,copper,alumnium, zinc etc materials.
Service. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsapp
B. Also, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.

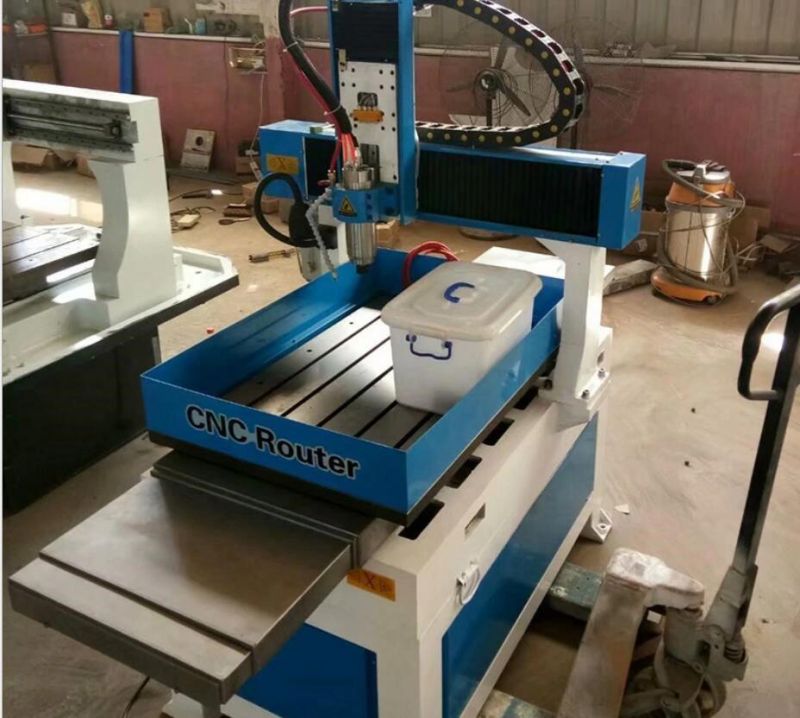

jade carving cnc router machine

Technical parameters:

Machine body:	ALLWIN 6060  Whole cast iron
Work dimensions:	600 x 600 x 120mm
Body dimensions:	950 x 950 x 1500mm
Z-axis working area:	120mm
Max. Feeding height:	120mm
Cut thickness of material:	<20mm
Max.Speed:	4200mm/min
Working speed:	0 - 3000mm/min
Mechanical precision:	0.01mm
Software:	Type 3 software, Artcut software, Artcam software
Max. Power consumption:	900W
Power supply :	AC 220/50Hz/AC380V/50HZ
Driver type:	Stepper motor
Memory:	1MB
Spindle:	1.2KW variable speed, water cooled motor
Spindle speed:	0 - 24000RPM
Blade diameter:	1 - 6m
Control system:	March3 or Wei hong (NCSTUDIO) or DSP (USB interface)
Command:	G code, u00, mmg, plt
Interface:	RS232

 Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
    If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
    factory.
 FAQ
1.How long is your machine's warranty?
3 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.How about package of shipment?
Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
