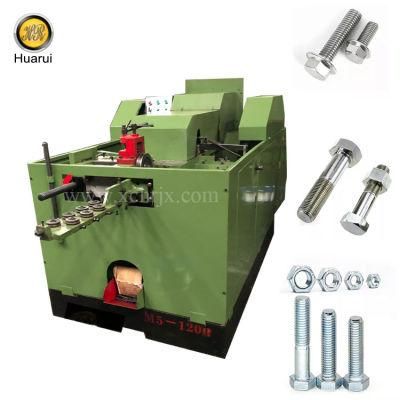

High Speed Cold Heading Machine Self Drilling Screw Making Machine
Xuchang Huarui Machinery Co., Ltd.- Type：Forging Operation
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：Automation
- Certification：CE
- Warranty：2 Years
Base Info
- Model NO.：M3-18A,B M3-28A,B M4-28B M4-40B M4-40D M5-40B
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- Voltage：380V, Customized
- Power(W)：0.75-15kw
- Weight：0.6t-11t
- Screw Diameter：3-14mm
- Screw Length：10-360mm
- Color：Green(or Customized)
- Transport Package：Sea Worthy Wooden Case or as Required
- Trademark：Huarui
- Origin：China
- Production Capacity：300 Sets,Month
Description

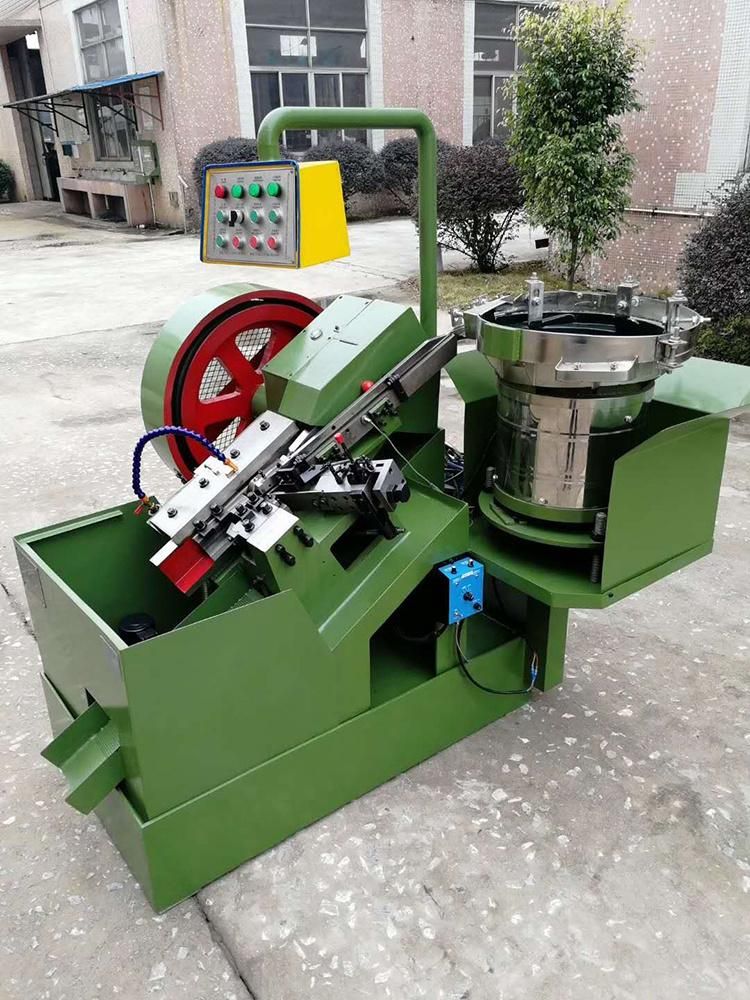

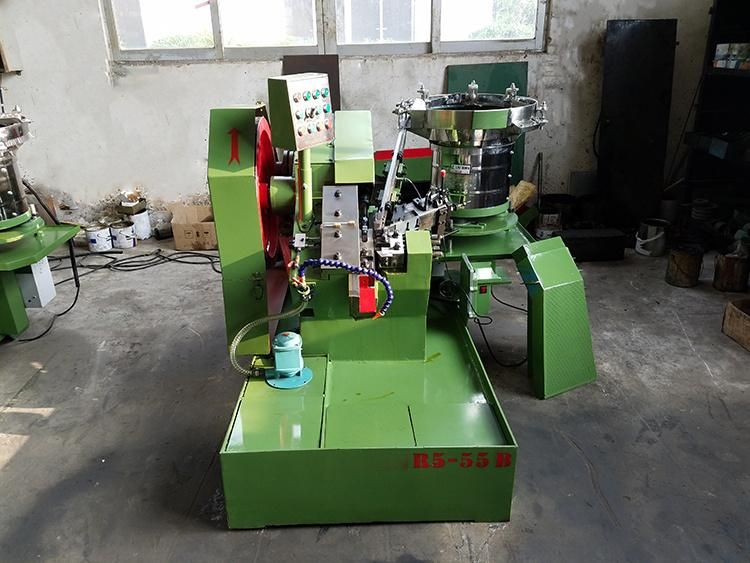

2. Full automatic thread rolling machine
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
Specification
| Model | Max. Screw Dia (mm) | Max. Screw length (mm) | Motor (kw) | Capacity (pcs/min) | Weight (Ton) | Overall size (m) |
| R3-20 | M2.6 | 20 | 1.1 | 370 | 0.3 | 1.1*0.53*1.2 |
| R3-25 | M3 | 25 | 1.1/0.12 | 320 | 0.4 | 1*0.6*1.2 |
| R4-25 | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
| R4-40A/B | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
| R5-55B | M5 | 55 | 3.6+0.37 | 160 | 1.2 | 1.74*1.32*1.55 |
| R5-65B/D | M5 | 65 | 2.2/0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
| R5-65C | M5 | 65 | 3 | 180 | 1.3 | 1.75*1.4*1.65 |
| R6-60A/B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
| R6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
| R8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
| R8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.7*1.7*1.3 |
| R8-120B | M8 | 120 | 5.5 | 100 | 2.1 | 2.4*1.8*1.4 |
| R10-120B | M10 | 120 | 7.5 | 80 | 1.8 | 2.35*1.95*1.4 |
| R12-120B | M12 | 120 | 11 | 60 | 3 | 2.45*2*1.45 |
| R12-160B | M12 | 160 | 13 | 60 | 3 | 2.45*2*1.45 |
| R12-220B | M12 | 220 | 15 | 50 | 3.5 | 2.5*2*1.45 |
| R16-120B | M16 | 120 | 15 | 50 | 3.8 | 2.5*2.1*1.45 |
| R16-160B | M16 | 160 | 15 | 50 | 4 | 2.5*2.1*1.45 |

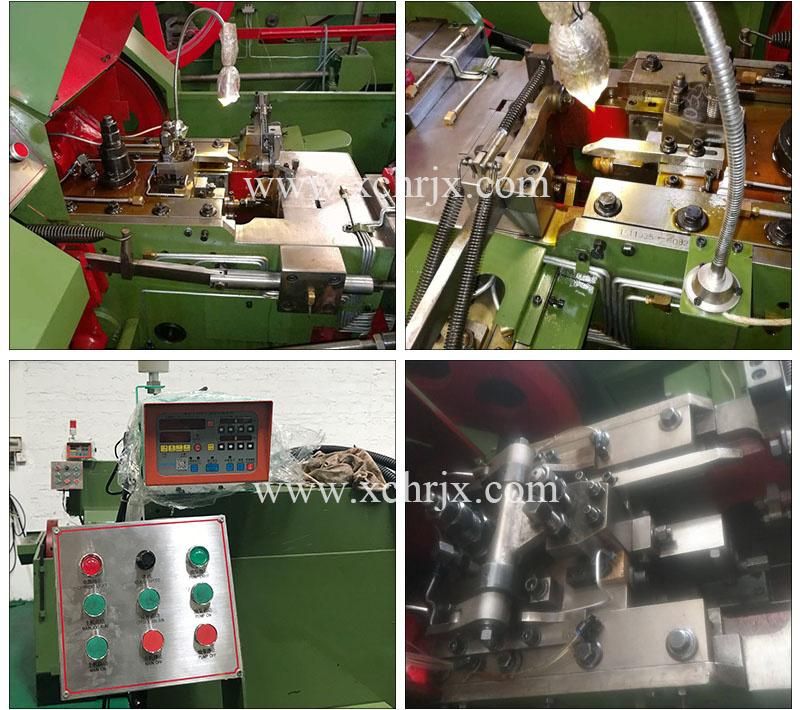

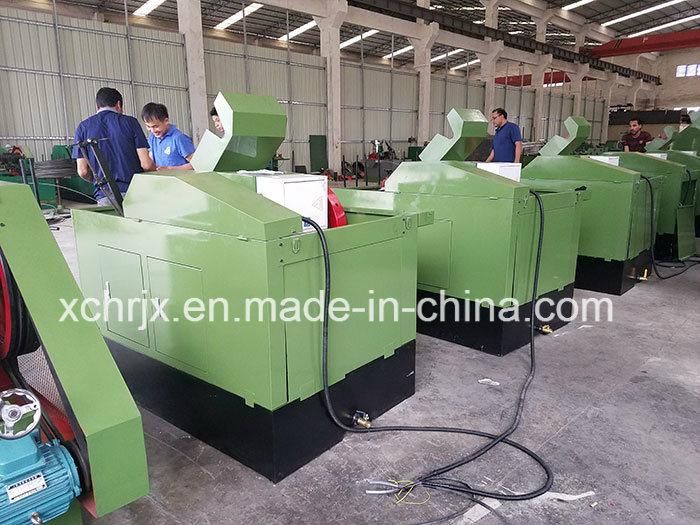

Detail pictures

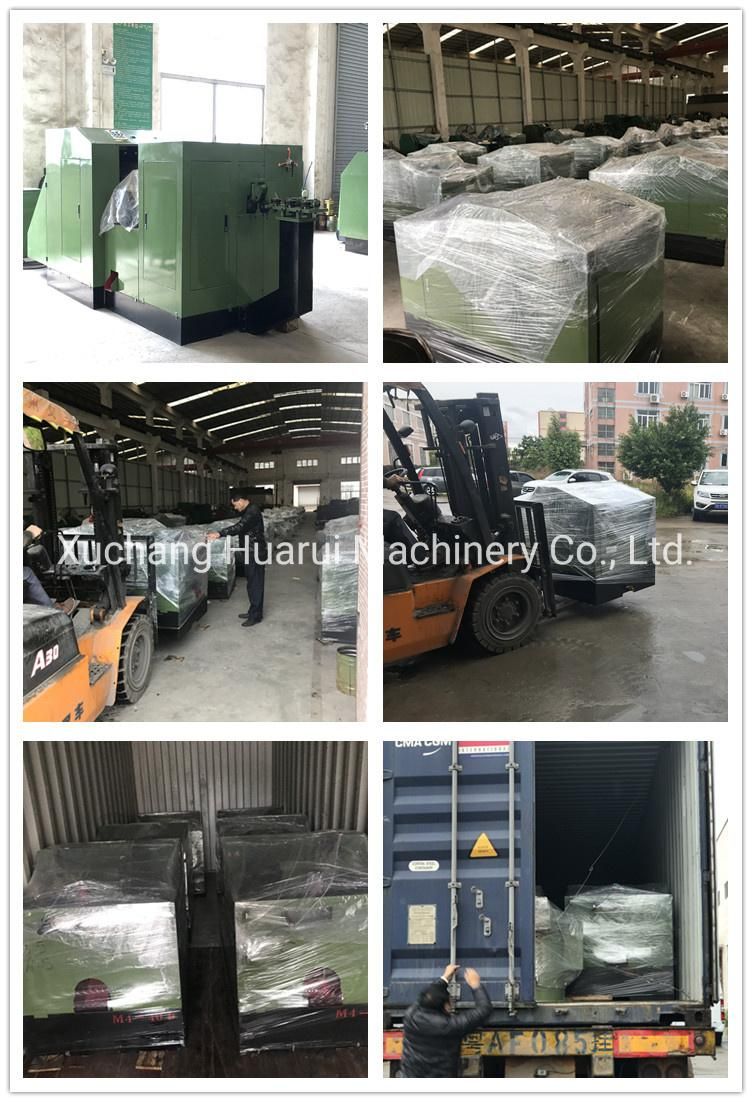

Packing and delivery
After - sales service
1.All products purchased in our company are guaranteed to keep in good repair for two years. If quality problems happen in guarantee period, our company will maintain for free.
2.Before sending the machine, we will test and adjust, so you can use directly when you get it. Operation video & instruction will be sent to clients, to help them use the machines better.
3. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
4. Any problems occur while using, professional advice will be offered.
5. All kinds of frequently used parts are supplied all the year round.
6. 24 hours on line service.
