• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Machine Color：Made-to-Order
• Place of Origin：China
• Machine Size：8500*1200*1500mm
• Operation Languge：English or as Required
• Rollers：No45 Forged Steel, Hard Chrome Covered
• Shafts：72mm Solid Steel
• Cutter：Cr12 Mould Steel
• Cutting Type：Cut to Length
• Control System：Mitsubishi PLC
• Guarantee：First Year for Free. Lifetime Services
• Transport Package：40gp Container for One Machine
• Specification：ISO SGS BV Soncap
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：30sets,Month

ItemSpecification TypePre-painted steel coil & galvanized coilsMaterialThickness (mm)0.4-0.7 Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)5.5 kw  (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)7.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 8.5*1.2*1.5m (Depend on final design)Components of machineDecoiler1set  Feeding & guiding device1setPost cutting device1setMain roll forming machine1setHydraulic cutting system1set Controlling system1set Run out table 1set  Process flow:Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table








Why this machine
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade.  Quenched treatment: Cr12 mould steel cutter

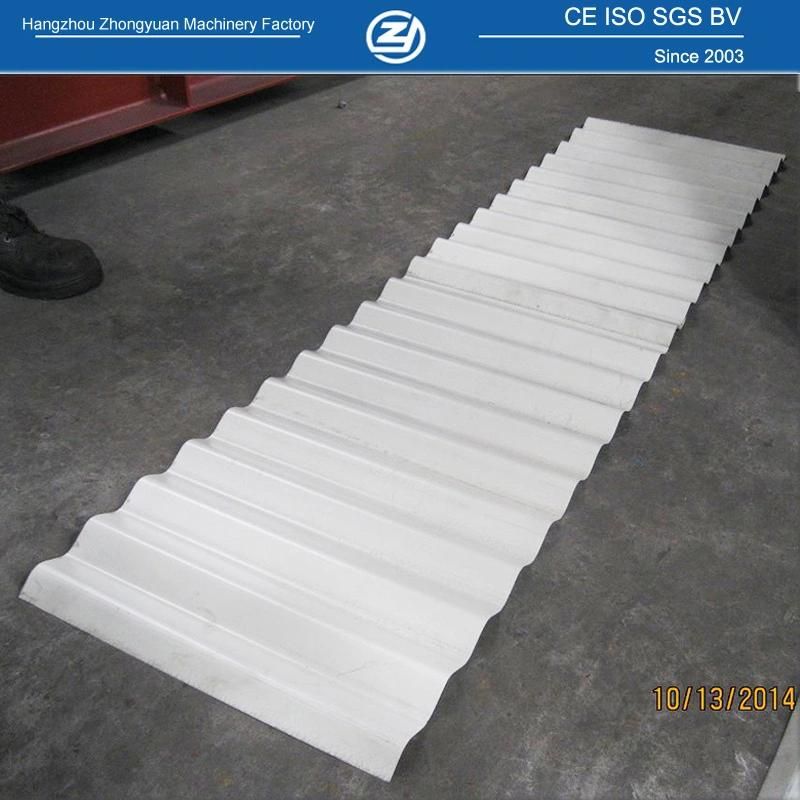

7. Product cut-to-length.
8.Technician overseas installing and training available


Why us
We care about QUALITY
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.

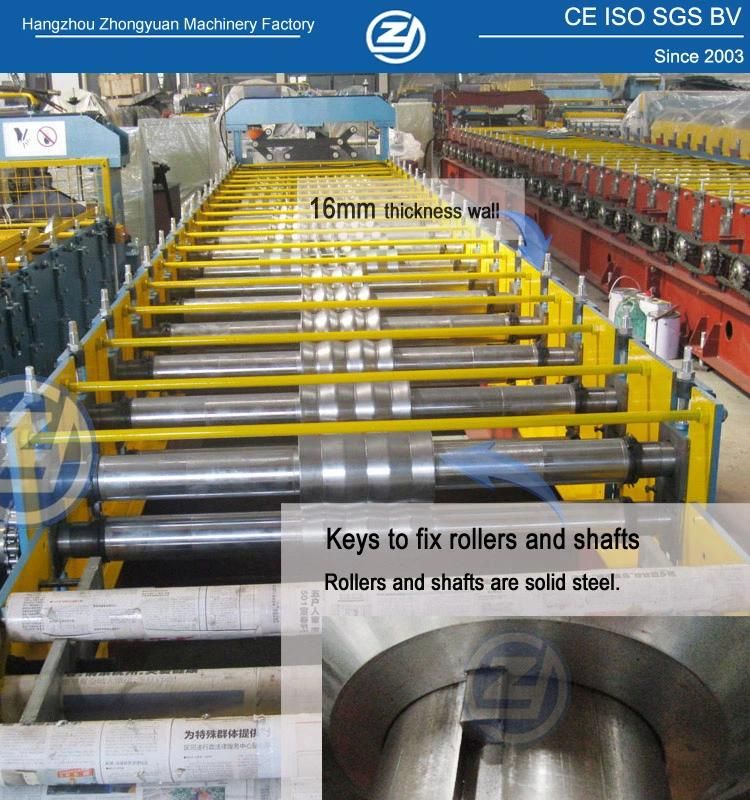

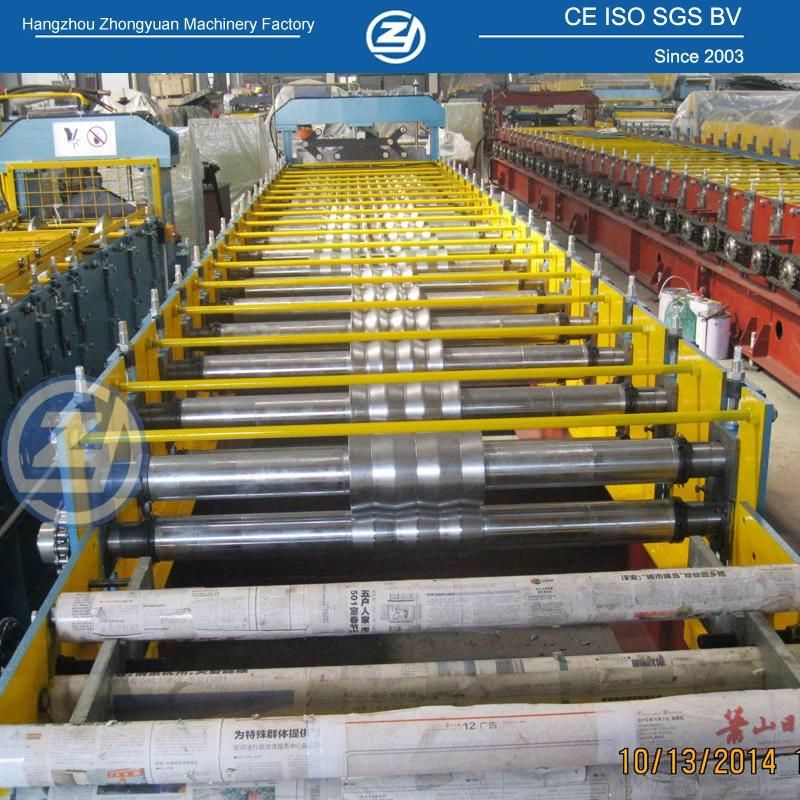

Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.

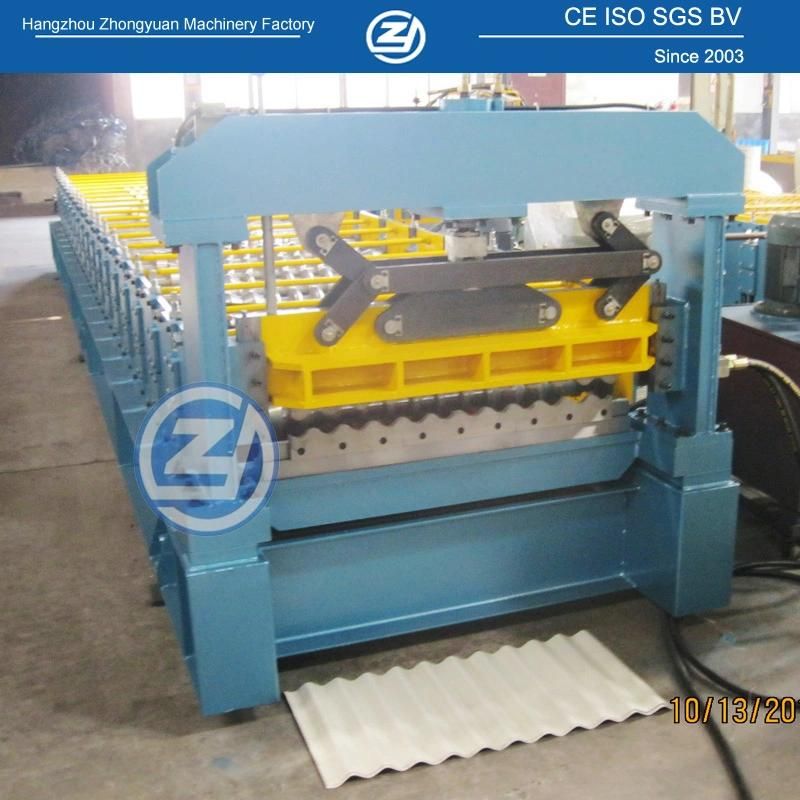

Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.

We care about USER EXPERIENCE
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

We care about YOUR CONCERN
 Delivery: in only 5-8 weeks

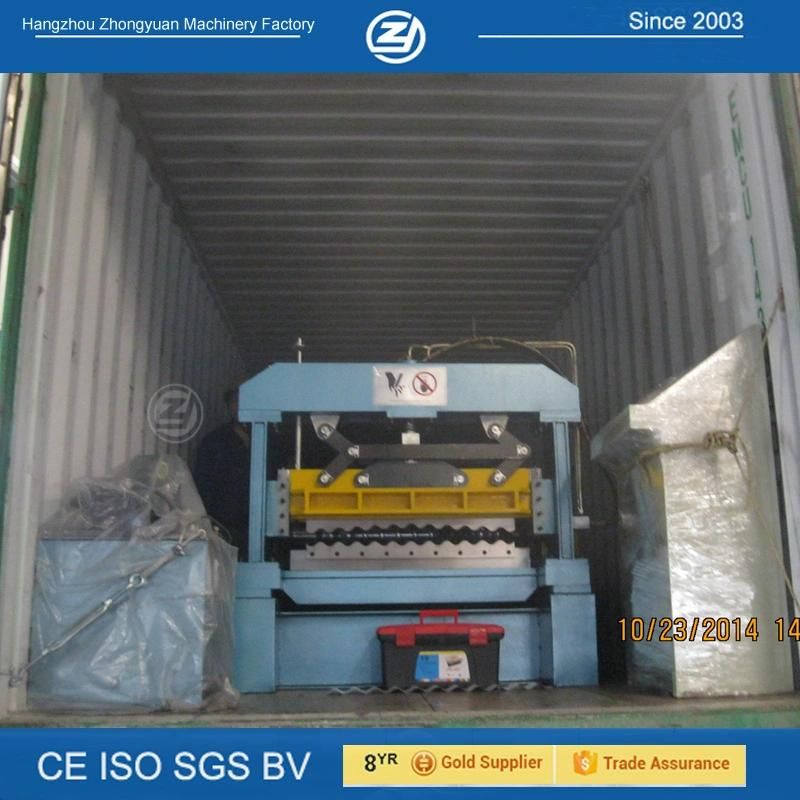

 Container was sealed
 Machine installing and training: engineer overseas sevices
 Inspecting and testing machine: before shiping

We care about the "SPECIAL"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
                    15 years experience engineers



About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.




Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
