Gmm-80A Steel Plate Beveling Machine for Shipyard Steel Structure
Shanghai Taole Machine Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Type：Plate Beveling Machine
- Style：Desktop
- Layout：Horizontal
- Automatic Grade：Semi-Automatic
Base Info
- Model NO.：GMM-80A
- Power Source：Electric
- Certification：CE, ISO
- Transport Package：Wooden Case
- Specification：Beveling width: 0-70mm
- Trademark：TAOLE
- Origin：Shanghai
- HS Code：8460310000
- Production Capacity：300 PCS
Description
Product Description
Product Application

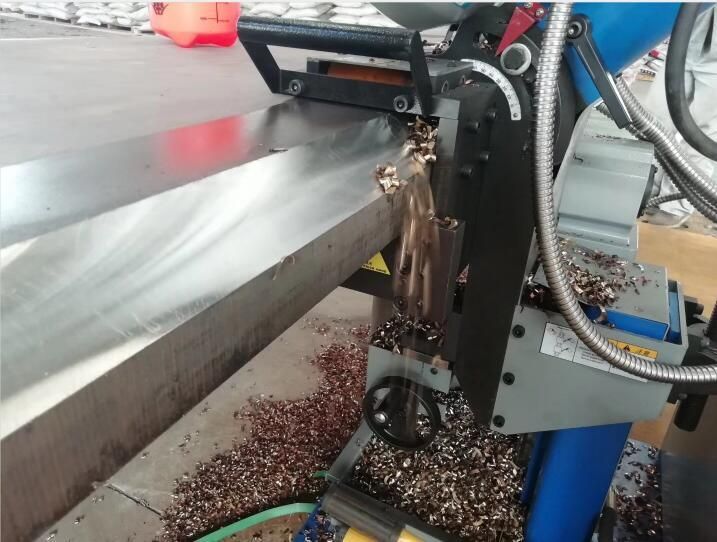

GMM-80A is specialized in the processing of the steel plate included the bronze , cast iron, carbon steel , stailness steel , etc. This kind of machine is easy to operation and maintains which is good at the steel plant , ship yard .

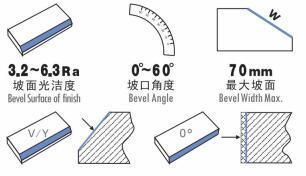

It is available for plate thickness 6-80mm, bevel angel 0 to 60 degree for vary type of welding joint such as V/Y/0 degree. Max bevel width could reach 70mm.
2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7. Models with different advantages as per customer's needs.
8.OEM/ODM available as a manufacture with own designing team and developing department.
9. Self-Moving and Cold working
10.High Efficiency milling Cutters with interchangeable Inserts.
certificate
Product Application
GMM-80A is specialized in the processing of the steel plate included the bronze , cast iron, carbon steel , stailness steel , etc. This kind of machine is easy to operation and maintains which is good at the steel plant , ship yard .
It is available for plate thickness 6-80mm, bevel angel 0 to 60 degree for vary type of welding joint such as V/Y/0 degree. Max bevel width could reach 70mm.
Main Features
1. Safety lock, Rear feed motor design and independent design of electric box. more sage.2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7. Models with different advantages as per customer's needs.
8.OEM/ODM available as a manufacture with own designing team and developing department.
9. Self-Moving and Cold working
10.High Efficiency milling Cutters with interchangeable Inserts.
certificate
