• Model NO.：TubeGiant 5.0
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting+ Flame Cutting
• Name：CNC Pipe Profile Cutting Machine
• Drive Motor：Japan Pansonic Servo Motor
• Cutting Diameter：Φ1000mm
• Control System：F6000
• Cutting Thickness：6 mm -200 mm
• Cutting Speed：50mm,Min~7000mm,Min
• Cutting Length：6m or 12m
• Voltage Supply：220V,50Hz
• Plasma Cutter：Seanor
• Machine Application：Gas Tube, Oil Tube, Pressure Tank
• Transport Package：Wooden Box Package
• Trademark：seanior
• Origin：Shandong, China (Mainland)
• HS Code：84564010
• Production Capacity：200 One Month

Basic Info.

Model NO. TubeGiant 5.0 Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting+ Flame Cutting Name CNC Pipe Profile Cutting Machine Drive Motor Japan Pansonic Servo Motor Cutting Diameter Φ1000mm Control System F6000 Cutting Thickness 6 mm -200 mm Cutting Speed 50mm/Min~7000mm/Min Cutting Length 6m or 12m Voltage Supply 220V/50Hz Plasma Cutter Seanor Machine Application Gas Tube, Oil Tube, Pressure Tank Transport Package Wooden Box Package Trademark seanior Origin Shandong, China (Mainland) HS Code 84564010 Production Capacity 200 One Month

Product Description

Best Price 5 Axis CNC Pipe and Tube Cutting Machine

Designed only for Heavy duty large diameter Pipe and tube Cutting
 Main Feature

Pipe CNC cutting machine for round pipe

It can cut and bevel carbon steel, stainless and other material are widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.

An automated solution for the various pipe related projects

Every equipment manufacturer wants to sell its own product will brag about how good it is. So if you can, please come to our company to see our product quality on site. Or do contact us for more machine info.

We hope that every user can see through the fog and find the best machine to their hearts, and we also help you to improve production efficiency.

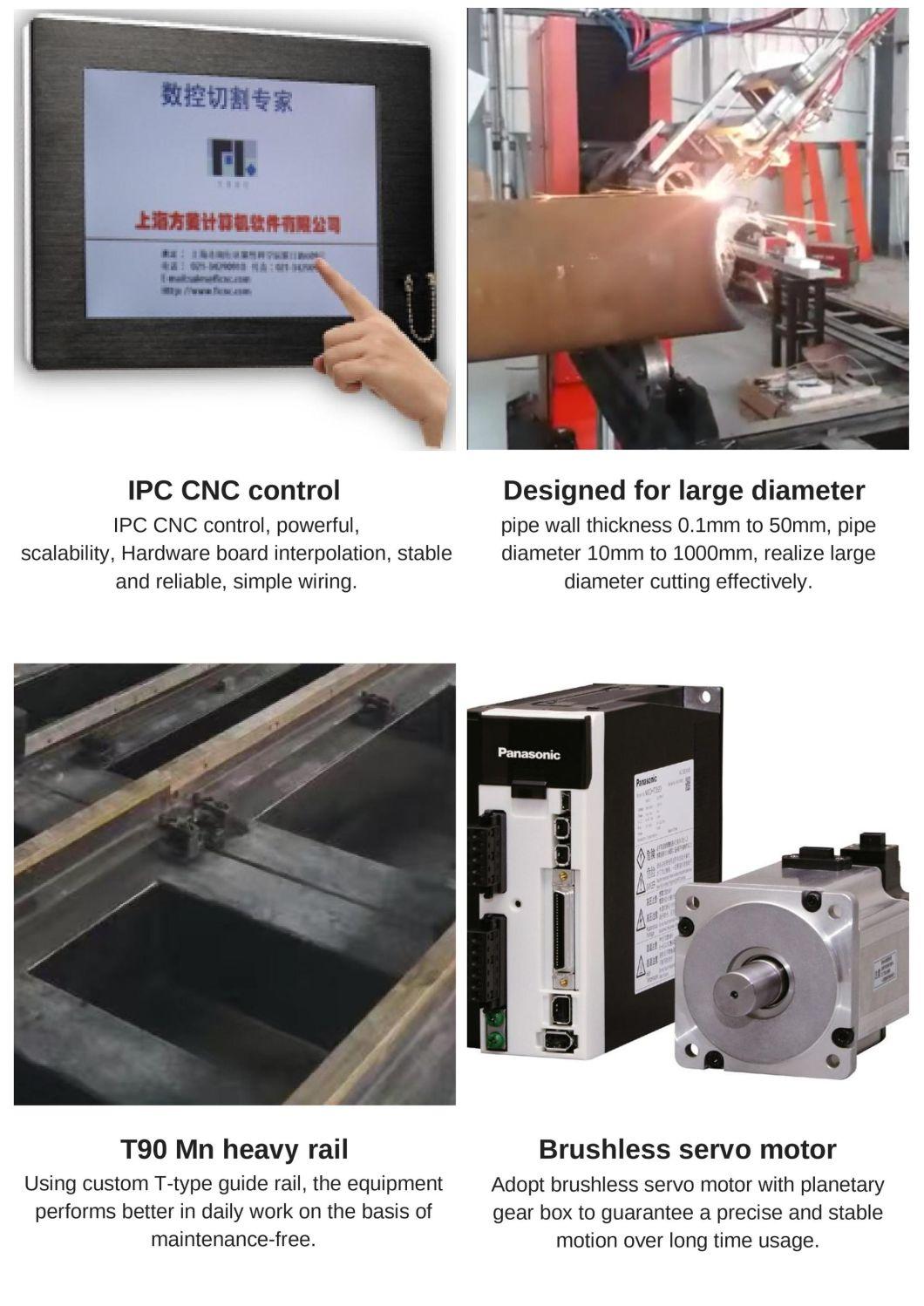

Professional CNC System

A simple interface requires you to fill in a few parameters or import DXF graphics directly to produce CNC code, which is easy to understand and is the best intersecting line system ever used.

Perfect balance between accuracy and speed

3 or 4 jaws high-hardness chuck can clamp forwardly and backwardly,fastening manually or electrically with endless rotation and small inertia.

Versatile with high productivity

Multiple axes linkage guaranteed

Realize various intersection line, intersection hole cutting

Reliable CNC control systems with superior performance and multiple processes

CNC control for fixed angle bevel, fixed point bevel, rotating angle bevel cut of tube with diameter 50-1000 mm

Product Parameter


Model	T500-bevel CNC Pipe&Tube Cutting Machine
Chuck And Motor Style	750W Panasonic Servo Motor + Reduce Gear Box
Input Power	Single Phase AC 220V, Approximately 2000W
Pipe Length	Produce according to clients' demand
Size of Chuck	φ250mm + Connected Jaw
Pipe Diameter	φ50~φ500 mm
Max. Weight of Pipe	≤1000 kg
Cutting Modes	Plasma Cutting (Working with plasma generator) and Flame Cutting
Reduction Ratio	1:175 (might be changed)
Max Pipe Rotate Speed	0-15 rpm(can be adjusted as special demand)
Ovality Of Pipe	≤2%
Numbers pf Pipe Supporter	Supply according to real pipe situation
Auto Controlled Axis	Four-axis linkage
Torch Lifting Distance (Z)	≤270mm
Working Precision	± 0.2 mm / meter
Max. follow speed of pipe bevel	15rmp
Bevel Accuracy	±1°
Max. Bevel Angle	±60°
Flame (Gas) Cutting Thickness	Piercing Capacity: 5 - 60 mm Edge Start: 5 - 120mm
Plasma THC	Not Optional
Gas Pressure	Acetylene Gas or Propane Gas Max 0.1Mpa
Oxygen Pressure	Oxygen Gas Max 0.7Mpa

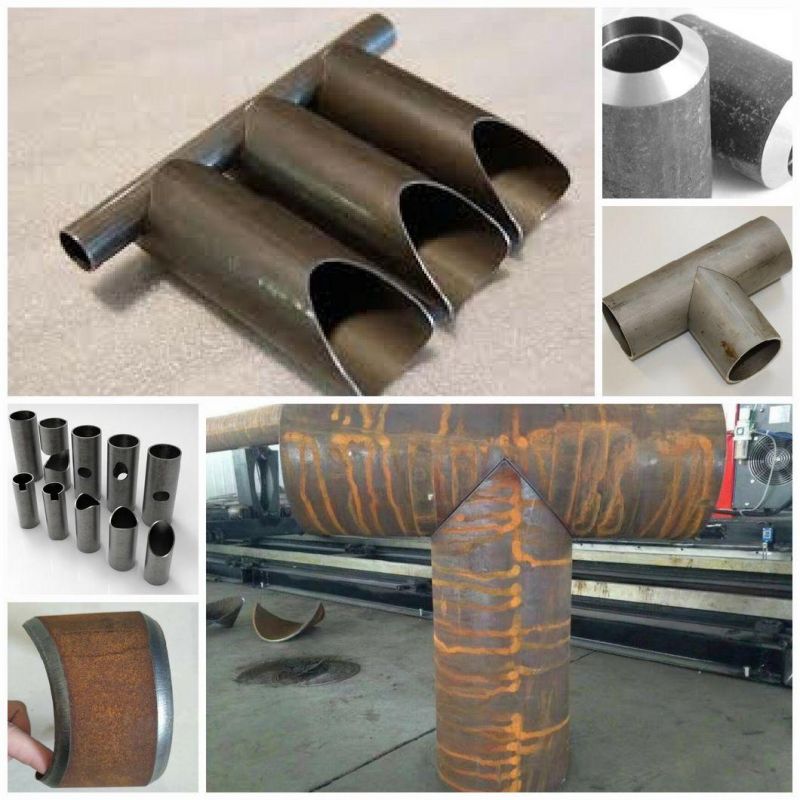

 Cutting Samples

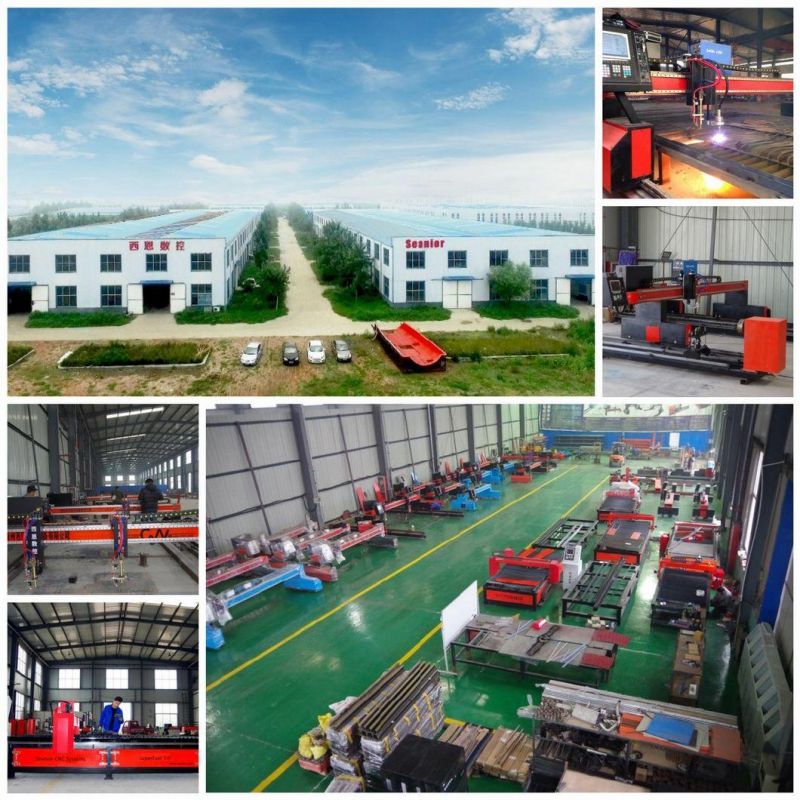

 Seanior CNC Systems

Established in2014, Seanior has enjoyed an expanding growth successfully and become a dynamic company focusing on building CNC cutting machines applied in different industries.
Seanior was first imagined as a brand in mind with a man named Sean working with our machine effortless and confidently .We aim to make great machines available to workshops strive for high efficiency and low cost.
