• Cutting Mode：Gas Cutting
• Name：Gantry CNC Cutting Machine
• Application：Industrial Metal Cutting
• Control System：F2300
• Cutting Speed：0-12000mm,Min
• Cutting Thickness：6-200mm,1-45mm
• Cutting Accuracy：±0.5mm
• Motor：Stepper Motor
• Torch Lifting Distance：150mm ( Electric Mode )
• Working Interface：Chinese and English (Other Languages Can Be Custo
• Transport Package：Wooden Box Package
• Specification：2200*3800*1650mm
• Trademark：seanior
• Origin：Dezhou, Shandong Province
• HS Code：8456901000
• Production Capacity：2000,Year

Basic Info.

Cutting Mode Gas Cutting Name Gantry CNC Cutting Machine Application Industrial Metal Cutting Control System F2300 Cutting Speed 0-12000mm/Min Cutting Thickness 6-200mm/1-45mm Cutting Accuracy ±0.5mm Motor Stepper Motor Torch Lifting Distance 150mm ( Electric Mode ) Working Interface Chinese and English (Other Languages Can Be Custo Transport Package Wooden Box Package Specification 2200*3800*1650mm Trademark seanior Origin Dezhou, Shandong Province HS Code 8456901000 Production Capacity 2000/Year

Product Description

High Speed Gantry CNC Plasma Flame Cutting Machine

(CNC Gantry Cutting Machine            CutMaster 4010)

Thank you for your interest in our CNC cutting machine and made time for me to introduce to you our best CNC Gantry plasma/flame cutting machine.

Product Introduction

1.This type of cutting machine for gantry structure, lateral span has various specifications such as 3m,4m,5m,6m,8m and so on, adopt bilateral power full servo drive, stable running, high configuration, high efficiency, can be used for all kinds of carbon steel, manganese steel, stainless steel and other metal materials of large, medium and small steel plate.

2.All steel frame is 8 mm thickness. The front beam is 20mm, after one-time large gantry milling machine milling together. This prevents deformation structure, ensure the working stability and improve the cutting precision.

3. The machine with high accuracy, high speed, low noise characteristics, can be carried out on steel plate cutting into straight lines and contour plates. Several cutting torches can work at the same time so as to improve the work efficiency.

Machine Feature

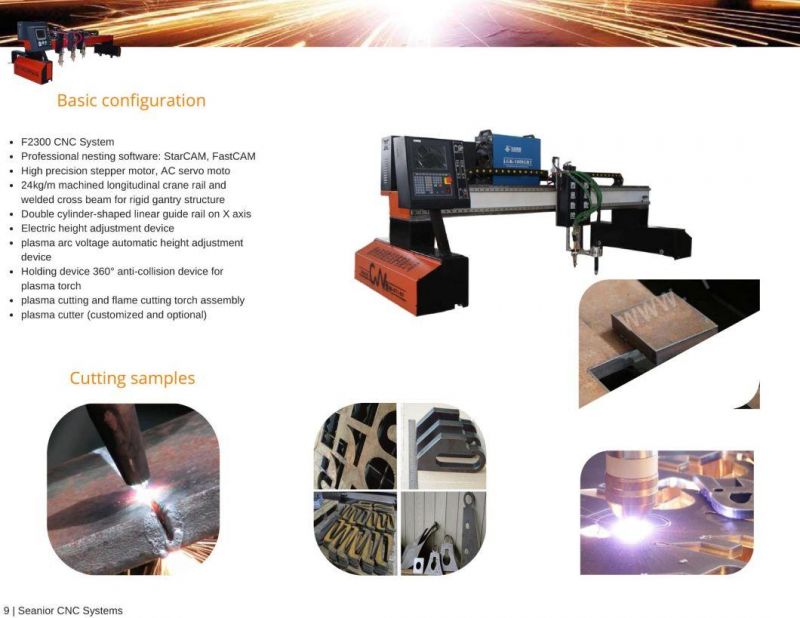

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.

2) High compliance digital drives provide a smooth cut edge with zero maintenance.

3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.

4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.

5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.

6) Up to 800 amp plasma depending on your choice.

7) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries.


Product Parameter

Technical item	Technical parameters
Effective cutting width	2000mm - 5500mm
Effective cutting length	4000mm - 20000mm
Tailor-made dimension	Accept tailor-made order
Flame piercing thickness	6mm -80mm
Edge cutting thickness	6mm -200mm for flame cutting
Plasma cutting thickness	1-45mm for plasma cutting
Torch lifter vertical traveling distance	≤150mm
Cutting precision	±0.5mm
Cutting speed	100-12000mm/min for plasma cutting50-600mm/min for flame cutting process
Number of lifter	Double (standard), accept tailor-made order
Cutting process	Plasma cutting and flame cutting
Torch lifting device	flame capacitance adjustment / plasma arc pressure adjustment
duty cycle	24h
processing material	Mild steel , stainless steel and aluminum

Contact Me:






Seanior CNC Systems

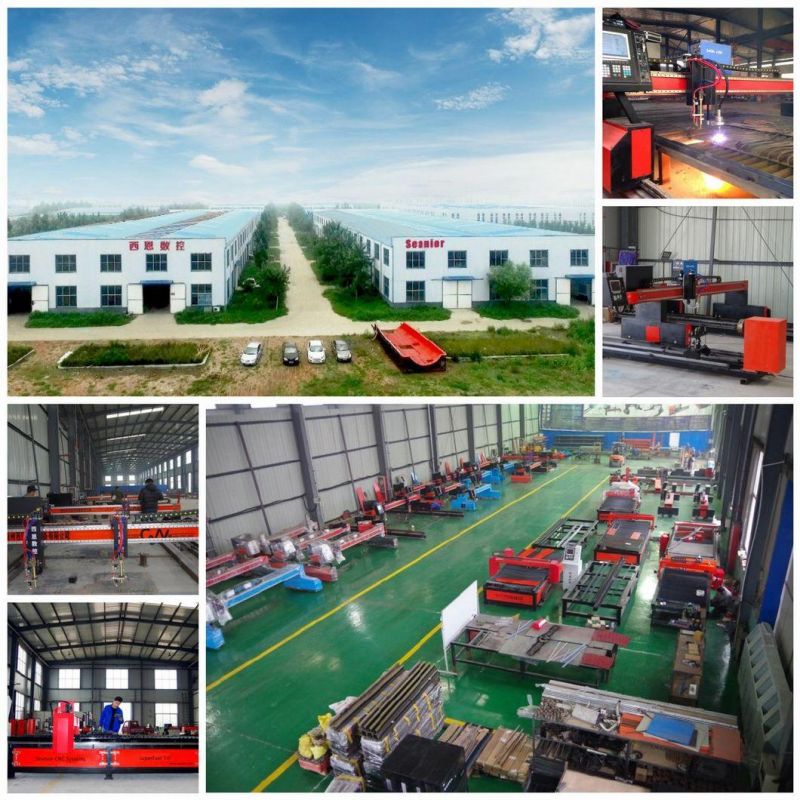

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.

Customer Photo
 Packing & Delivery

Stand exporting packing

1.Outside package:Standard marine export plywood cases for cnc plasma cutting machine table
2.Inner package:Stretch film and plastic film for humidity.
3.We can package according to your requests.
4. Shipped in 25-30 working days after payment.
 Certificates
