Ridge Cap Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type:Rolling Machine
- Forging Forming Method:Roll Forming
- Power Source:Electric
- Feature:High Efficiency
- Certification:ISO9001, CE
- Warranty:12 Months
Base Info
- Customized:Customized
- Advantage:Use Widely
- Condition:New
- Color:Blue and Yellow
- Transport Package:Sea Packing
- Trademark:SAIBO
- Origin:China
- HS Code:84552210
- Production Capacity:300set,Year
Description
Basic Info.
Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Transport Package Sea Packing Trademark SAIBO Origin China HS Code 84552210 Production Capacity 300set/YearProduct Description

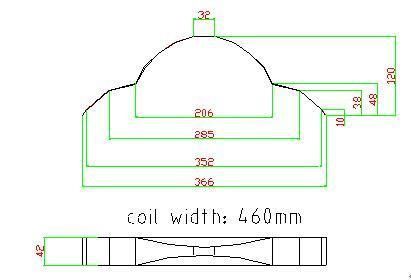

Profile drawing:Ridge cap roll forming machine can form metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this machine, the surface will be smooth and beautiful without any scratch on surface.
This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It is producted continuously as roll forming machine instead using bending machine to make angle tile saving human resources, lower labor cost.
Roll forming machine | Top ridge |
Rolling speed | 12-15m/min(not include cutting time) |
Rolling thickness | 0.4mm |
Control system | PLC (Panasonic) as list in the note |
Uncoiler | 2TON for each head |
Dimension | 5000× 800× 1200mm |
Material width | 395mm |
Effective width | 250mm |
Roller stations | 9 stations |
Roller material | 45#forge steel, coated with chrome |
Shaft diameter | Material is 45# forge steel |
Main motor power | 4kw |
Hydraulic station power | 5.5kw |
Hydraulic pressure | 12Mpa |
Material of cutting | Cr12MOV |
Tolerance | +-1.5mm |
Electric source | 380V, 50Hz, 3 phase |
Way of drive | 1 inch single chain |
Color of the machine | Yellow and blue |
Container need | 1 x20 feet |
Deliver time | 90 days |
Terms of payment | 30%T/T 70% pay before shipment |
