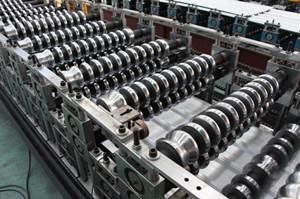

Panel and Corrugated Double Layer Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX18-76-762
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Transport Package：Sea Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

Specification of the material1
 Suitable MaterialColored Steel plate, Galvanized steel2
 Width of the raw material1220mm3Thickness0.3mm-0.8mm
1. Main power: 5.5KW

2. Roll station: Upper 18stations; Down 18 stations

3. Size of roll forming machine: About 9.4m*1.65m*1.2m

4. Diameter of shaft: 70mm

5. Thickness of formed steel: 0.3mm-0.8mm

6. Width of raw material: 1250mm (can depend on client request)

7. Material of the roller: 45#forge steel, machined with numerical control, polished and coated with chrome, surface with 0.05mm

8. Hydraulic power: 4KW

9. Computer adopt PLC, Panasonic

10. Computer operating board: Touch screen

11. Length tolerance: +/-1.5mm

12. Working speed: 12-30m/min(not including cutting)

13. Hydraulic pressure: 12Mpa

14. Machine with manual pre -cutter
