30mm Metal Steel Plate Cutter/4 Axis CNC Plasma Machine for Cutting Metal Pipe/3D Engraving CNC Plasma Cutter
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Model NO.：cnc plasma cutting machine
- Working Size：1500*3000mm
- Plasma Source：Lgk,Hypertherm
- Table：Sawtooth Table
- Control System：Starfire
- Rotary Axis：Option 100,150,200,250,300,400mm...
- Cooling System：Air,Water Cooling
- Flies Transfer：USB Interface
- Transmission：X,Y-Helical Rack Pinion, Z Ball Screw
- Arc：Untouched Arc Striking
- Traveling Speed：0-40000mm,Min
- Software：Fastcam
- Working Voltage：3 Phase 380V,50Hz
- Transport Package：Wooden Box Packing
- Specification：1500*3000
- Trademark：iGOLDENCNC
- Origin：Jinan
Description
Basic Info.
Model NO. cnc plasma cutting machine Working Size 1500*3000mm Plasma Source Lgk/Hypertherm Table Sawtooth Table Control System Starfire Rotary Axis Option 100/150/200/250/300/400mm... Cooling System Air/Water Cooling Flies Transfer USB Interface Transmission X,Y-Helical Rack Pinion, Z Ball Screw Arc Untouched Arc Striking Traveling Speed 0-40000mm/Min Software Fastcam Working Voltage 3 Phase 380V/50Hz Transport Package Wooden Box Packing Specification 1500*3000 Trademark iGOLDENCNC Origin JinanProduct Description

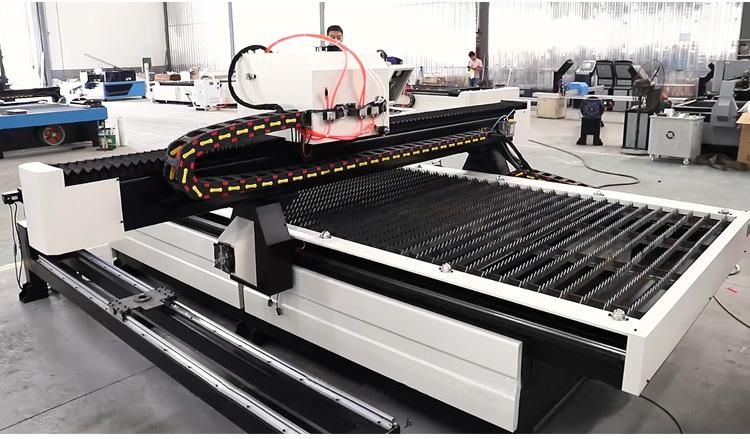

30mm metal steel plate cutter/4 axis cnc plasma machine for cutting metal pipe/3d engraving cnc plasma cutter

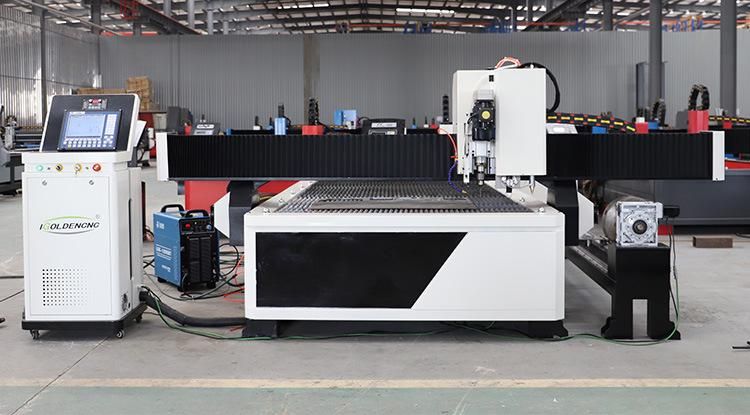

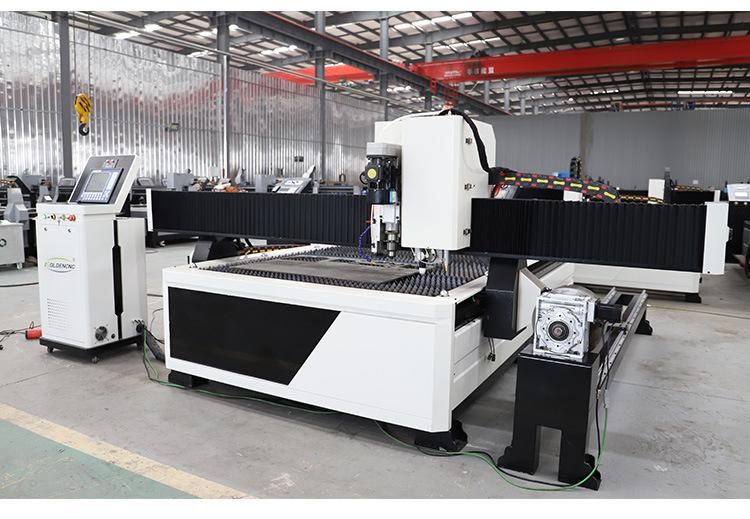

| NO. | Model | IGP-1530 Muti-function Plasma machine |
| 1 | Working area | 1500x3000mm |

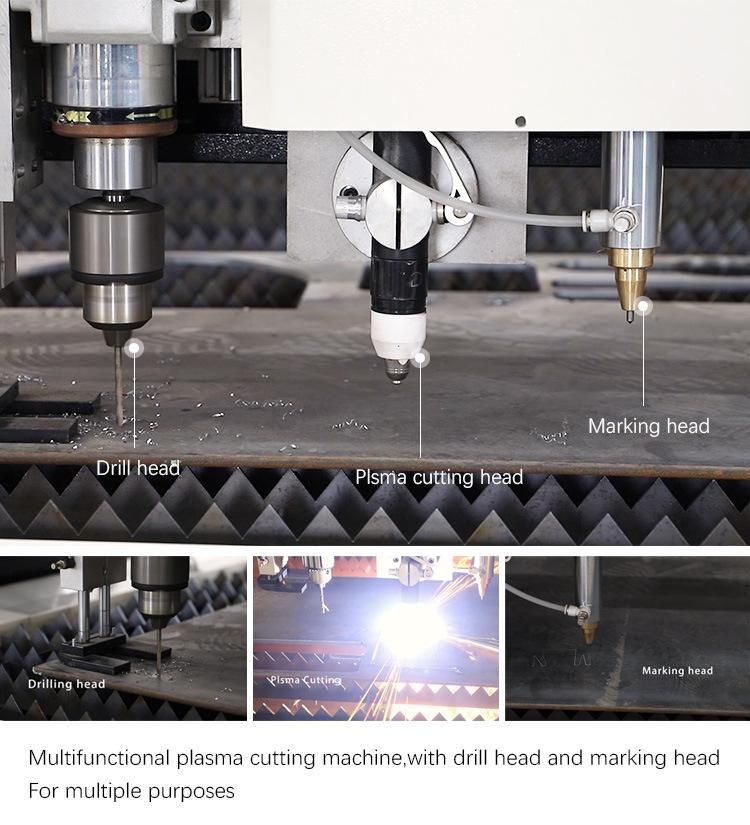

| 2 | Drilling head | With |
| 3 | Marking head | With |
| 4 | Torch height controller | with |

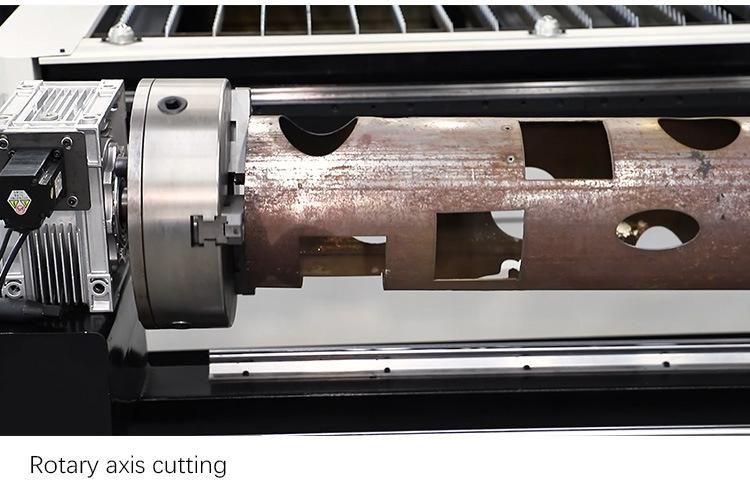

| 5 | Rotary axis | Option 100/150/200/250/300/400mm... |

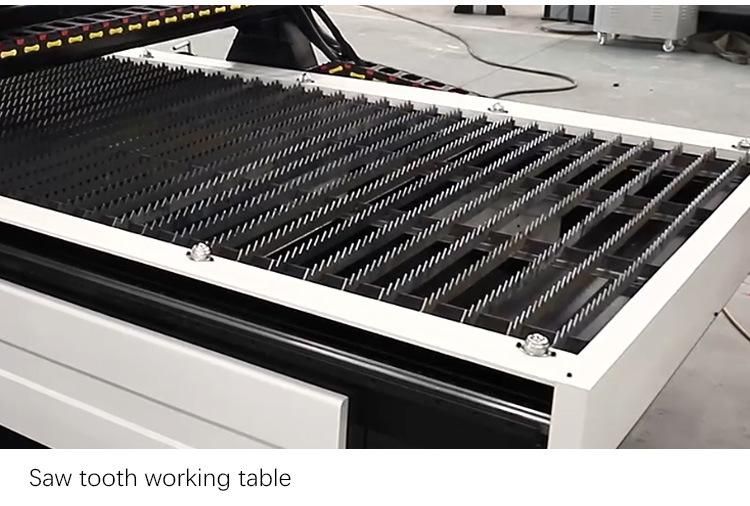

| 6 | Working table | Saw tooth table |

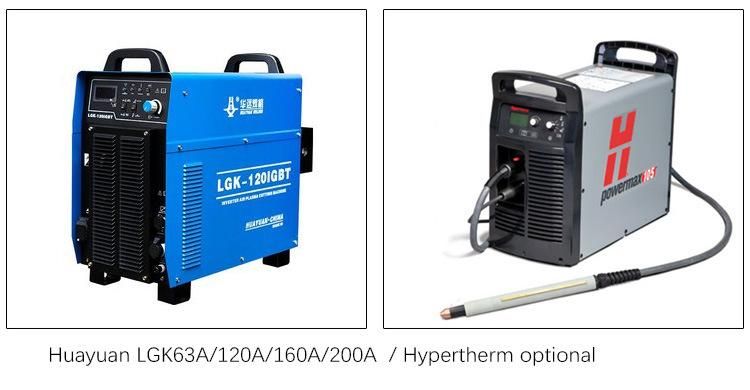

| 7 | Plasma power supply | Huayuan LGK63A/120A/160A/200A Hypertherm optional |
| 8 | Cooling system | Air/ Water cooling |

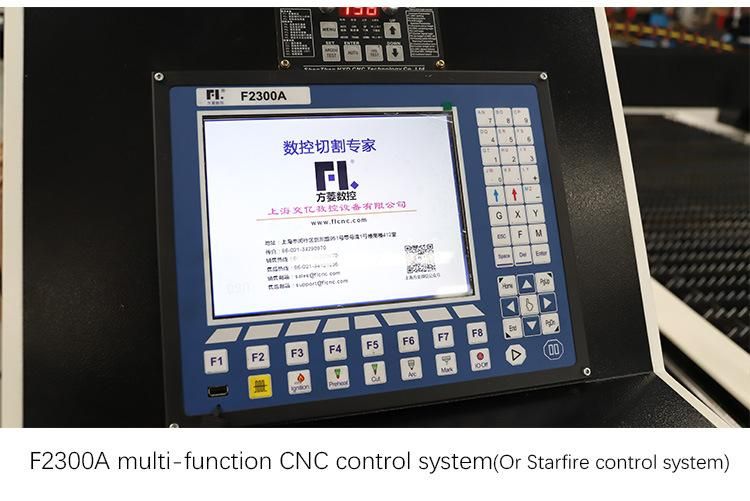

| 9 | Control system | Starfire control system/FangLing system |
| 10 | Flies transfer | USB interface |
| 11 | transmission | X,Y-helical rack pinion, Z ball screw |
| 12 | Guide rail | Taiwan Hiwin guide rail |
| 13 | Drive system | Stepper motor and drivers Optional Japan AC servo motor |
| 14 | Arc | Untouched Arc Striking |
| 15 | Traveling speed | 0-40000mm/min |
| 16 | Working speed | According to the cutting thickness |
| 17 | Working voltage | 3 phase 380V/50HZ |
| 18 | Software | Fastcam |
Company Information:
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
