• Model NO.：XYJ-2C,27
• Transport Package：Export Wooden Box
• Specification：27T
• Trademark：CHAOYING
• Origin：Jiangsu, China
• HS Code：8453800000
• Production Capacity：60sets,Month

Basic Info.

Model NO. XYJ-2C/27 Transport Package Export Wooden Box Specification 27T Trademark CHAOYING Origin Jiangsu, China HS Code 8453800000 Production Capacity 60sets/Month

Product Description

Aom type swing arm cutting machine
USE AND CHARACTER:
The machine is suitable for cutting single layer or multiple layers of leather, plastic, paperboard,
fabric and other materials by forming cutter. It is an ideal cutting device for shoemaking, luggage &
baggage, clothing, automobile, artwork, packaging, electronics and other industries.
1. There are two types of cutting modes for selection. The first type is small pressure stepless regulation.
The second type is that the cutting adopts intelligent pressure feedback design function without the
need of setting cutting point. The height of die cutter has no influence on the cutting and ideal cutting
effect can be obtained from each cutting point.
2. Through double oil way static pressure supporting lubricating system, the vertical column makes
operators' work more easy, flexible and worry-saving.
3. The main fittings are made of high quality imported assemblies, which have characteristics such as
reliable quality, low noise, high efficiency and energy saving.

TECHNICAL SPECIFICATION:

Maximum cutting force	270kN/27Tons
Travel adjustment range	0- 100mm
Range between the working tables	45- 145mm
Size of upper rocker	500× 500mm
Size of lower worktable	1000× 500mm
Motor power	1.5kW
Net weight	980kgs
Gross weight	1080kgs
Dimension	1080*1080*1600mm
Hydraulic oil	68# or 46 #
Adjust the stroke	automatic
OEM	Welcome
Motor information	50hz/60hz   single phase or three  220V /240V /380V

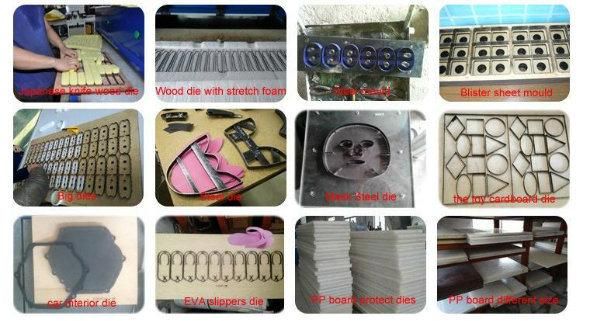

 The die cutter :


Application  industries :

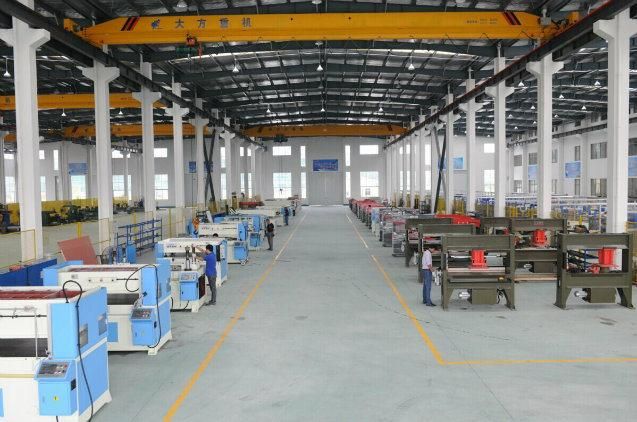

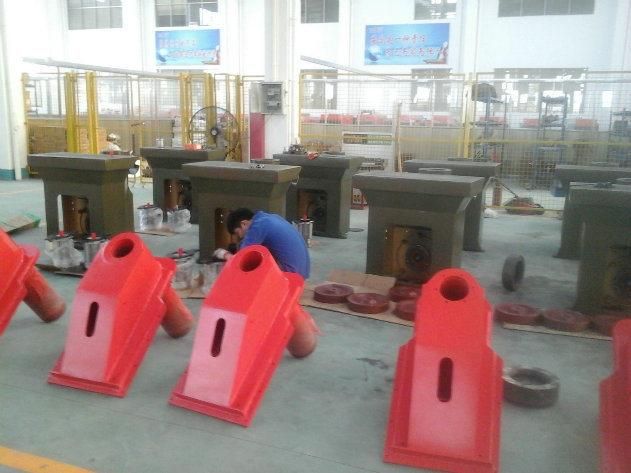

Factory views :





Attending Fairs :

FAQ :

Why choose us?
1. More than 20 years experience in the field of die cutting machine and we are a factory.
2. Strictly Quality control. Quality is our culture. With us your business in safe, your money in safe.
(We have our own quality control team compare with other company, every product will be checked
againand again before delivery according to SGS standard, so you can buy the goods with high quality.)
3. Competitive price and quick delivery time.
4. OEM and ODM service.(We have OEM for many oversea customers and we have our own ODM team
which can produce products on your demand)
5. Professional salesman and good service in 7 days in week and 24 hours one day .
6. Solving ability for problem and strong responsibility.
Not all the supplier have the problem - solving ability(Someone transfer the responsibility to customer,
someone lack the problem - solving ability),Xiongying will take full responsibility of your machine and your
money safety.
7. Payment term: T/T, L/C .
The contact information :
