• Model NO.：CUT40
• Name：Plasma Cutting Machine
• Mosfet：12PCS
• Diodes：12PCS
• Capacitor：4PCS
• Transport Package：Carton
• Specification：371x153x232mm
• Trademark：As required
• Origin：Shenzhen China
• HS Code：84569010
• Production Capacity：30000PCS,Month

Basic Info.

Model NO. CUT40 Name Plasma Cutting Machine Mosfet 12PCS Diodes 12PCS Capacitor 4PCS Transport Package Carton Specification 371x153x232mm Trademark As required Origin Shenzhen China HS Code 84569010 Production Capacity 30000PCS/Month

Product Description

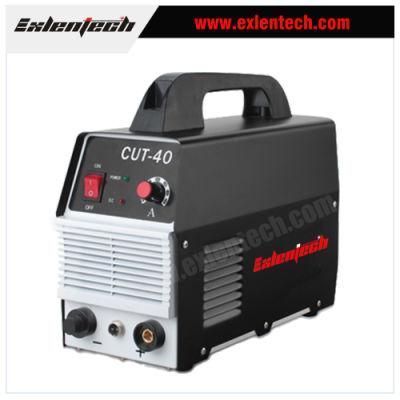

Plasma cutting machine product Characteristics:
*Adjustable cutting current,satisfy different requirement of material,thickness,cutting speed.esthetic cutting area.
*Plasma cutting machine can be used to cut carbon steel,stainless steel,galvanized steel,copper,aluminum etc.
*Buildin default phase protection,over and low voltage protection,over heat protection,and low pressure of compressed air protection etc,make the machine work reliably.
*Plasma cutting machine easy to operate, flat,smooth cutting area.

Model	CUT-40
Input power Voltage Frequency(V,Hz):	AC220(single phase)±15%,50/60
Rated input power capacity(KVA):	4.8
No-load voltage(V):	230
Output current range.(A):	10-40
Rated output voltage(V):	96
Duty cycle (%)(25ºC):	60
No-load loss(w):	40
Arc-starting:	H/F
Efficiency(%):	85
Power factor (COSφ):	0.93
Insulation class:	F
Weight(KG):	9
Overall dimension(mm):	365×138×238
Case protection degree :	IP21S
Air compressor displacement(S):	0.17
Fine cutting  thickness(mm):	5
Max cutting  thickness(mm):	12
