Corona Electrostatic Powder Coating Spray Gun

Hangzhou Feifu Import and Export Co., Ltd.
  • After-sales Service:12 Moths
  • Warranty:12 Moths
  • Type:Coating Spray Gun
  • Coating:Powder Coating
  • Substrate:Steel
  • Certification:CE, ISO

Base Info

  • Model NO.:KF-X1
  • Condition:New
  • Name:Corona Powder Coating Spray Gun
  • Application:Any Metal Surface
  • Voltage:220V,110V
  • Frequency:50-60Hz
  • Max Voltage:100kv
  • Gun Weight:500g
  • Packaging:Wooden Case,Carton
  • Delivery:1-3 Working Days
  • Payment:100% in Advance
  • Item:Electrostatic Powder Coating Gun
  • Transport Package:Carton
  • Specification:123x80x49 cm
  • Trademark:COLO
  • Origin:China
  • HS Code:8424899990
  • Production Capacity:800sets,Year

Description

Basic Info.

Model NO. KF-X1 Condition New Name Corona Powder Coating Spray Gun Application Any Metal Surface Voltage 220V/110V Frequency 50-60Hz Max Voltage 100kv Gun Weight 500g Packaging Wooden Case/Carton Delivery 1-3 Working Days Payment 100% in Advance Item Electrostatic Powder Coating Gun Transport Package Carton Specification 123x80x49 cm Trademark COLO Origin China HS Code 8424899990 Production Capacity 800sets/Year

Product Description

Corona Electrostatic Powder Coating Spray Gun

KF-X1 powder coating gun is optimized perfection of functions and precision on the original basis, intelligent powder gun controller offers more precise powder output and adjustment of parameters to ensure an optimum powder coating result.

Corona powder coating offers a relatively controllable charge source, it is to charge the powder coating whilst the powder passes through an electric field. Due to the structure of corona powder coating gun that there are no parts exposed to the powder except the powder nozzle, corona powder coating process is more economical without having any parts exposed to wear.

 Corona Electrostatic Powder Coating Spray GunCorona Electrostatic Powder Coating Spray Gun
KF-X1 Corona Electrostatic Powder Coating Spray Gun Corona Electrostatic Powder Coating Spray Gun

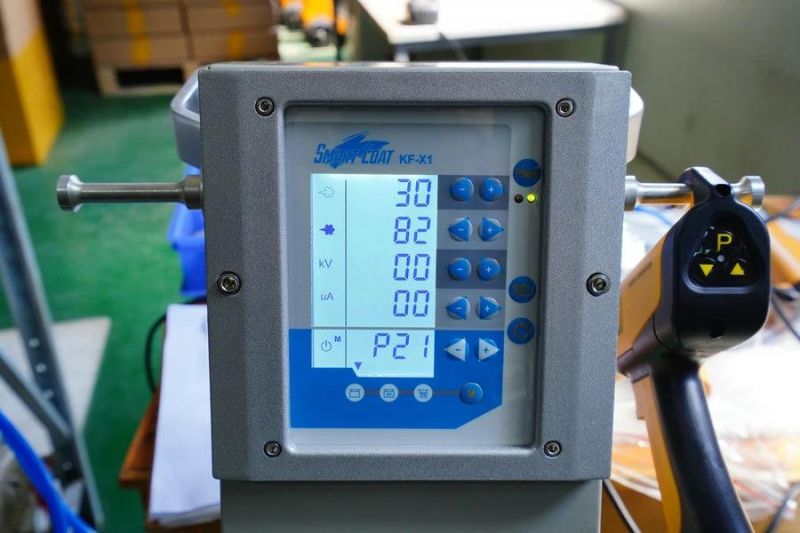

1. Three preset standard programs:
Flat parts program is ideal for spraying panels and flat parts.
Complex parts program is designed for some parts with complex shapes and deep corners.
Recoat program is optimized for parts which have already been coated.

2. Support to store coating programs up to 20, features convenient to spray the same type products next time.

3. Digital air flow technology for more accurate pneumatic data setting, ensures better atomization.

4. The precise powder output is able to control the thickness of coating film, results a consistent powder coating effect.

5. Voltage and current could be adjusted flexibly ( Voltage 0-100kV, Current Max.180μa ).


COLO-08 Powder Coating Spray Gun

Corona Electrostatic Powder Coating Spray Gun Corona Electrostatic Powder Coating Spray Gun

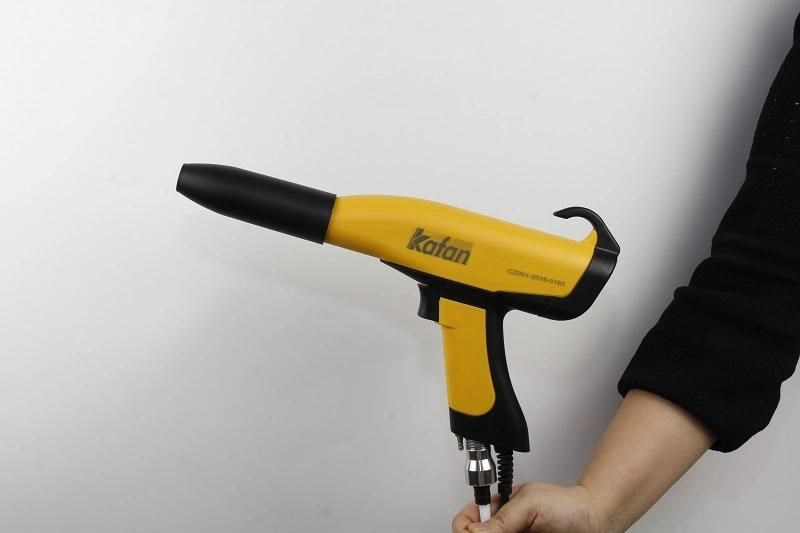

1. Only 500g powder gun body maintains all practical functions, ergonomical design is able to reduce operators' fatigue from working long hours.

2. 100 kV manual spray gun maximizes powder charging capacity meanwhile ensures safe operation and efficiency during long lasting use.

3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.



Technical Specifications of KF-X1 Corona Electrostatic Powder Coating Spray Gun

VoltageAC 220V / 110V
Frequency50-60Hz
Power50W
Output VoltageDC24V
Max Voltage0-100 KV adjustable
Max Powder Injection600 g/min
Max input air pressure10 kg/cm
Optimum input-air pressure6 kg/cm
Minimum input-air pressure4 kg/cm
Maximum water vapor content or compressed1.4 g/Nm3
Maximum oil vapor content of compressed air0.1 ppm
Maximum compressed -air consumption13.2 m3/h
Temperature Range in Use-10 ºC-50 ºC
Gun Weight500g
Maximum Output Current180μA
Polaritynegative
