• Model NO.：KF-X2
• Condition：New
• Name：Powder Coating Equipment for Bike Frame
• Application：Any Metal Surface
• Voltage：220V,110V
• Frequency：50-60Hz
• Max Voltage：100kv
• Gun Weight：500g
• Packaging：Wooden Case,Carton
• Delivery：1-3 Working Days
• Payment：100% in Advance
• Item：Powder Coating Equipment
• Transport Package：Carton
• Specification：123x80x49 cm
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：800sets,Year

Basic Info.

Model NO. KF-X2 Condition New Name Powder Coating Equipment for Bike Frame Application Any Metal Surface Voltage 220V/110V Frequency 50-60Hz Max Voltage 100kv Gun Weight 500g Packaging Wooden Case/Carton Delivery 1-3 Working Days Payment 100% in Advance Item Powder Coating Equipment Transport Package Carton Specification 123x80x49 cm Trademark COLO Origin China HS Code 8424899990 Production Capacity 800sets/Year

Product Description

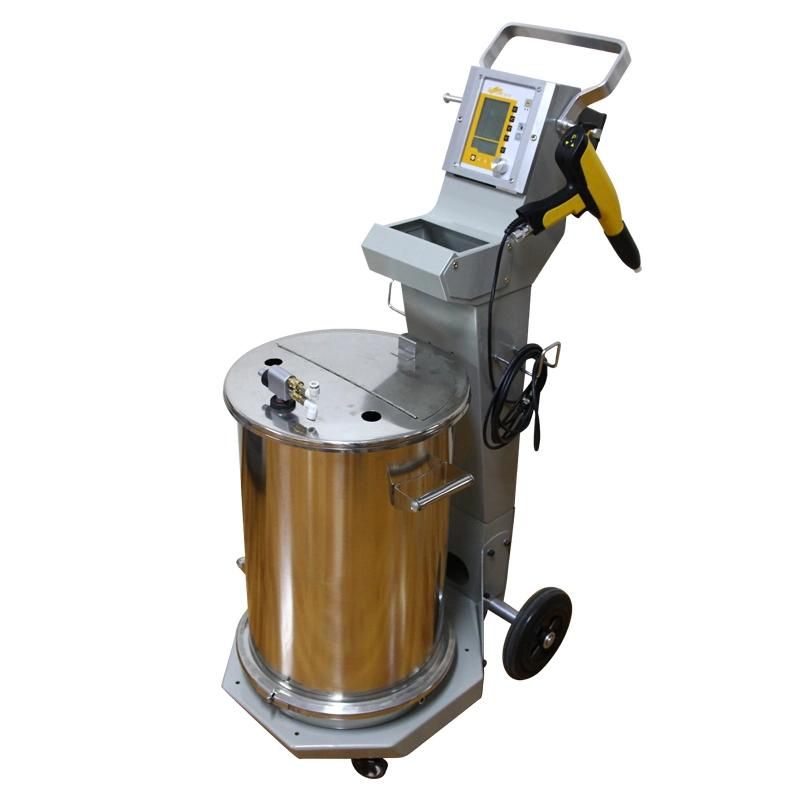

Powder Coating Equipment for Bike Frame

KF-X2 Powder Coating Equipment provides an ideal sulotion for spraying bike frame and other complex shape workparts. This powder coating equipment is utilized latest digital control technology, supports to set and adjust parameters more precisely, the optimum setting can be adjusted quickly when spraying different parts. Deep corners and hard-to-reach areas could also be spraying uniformly and consistently.

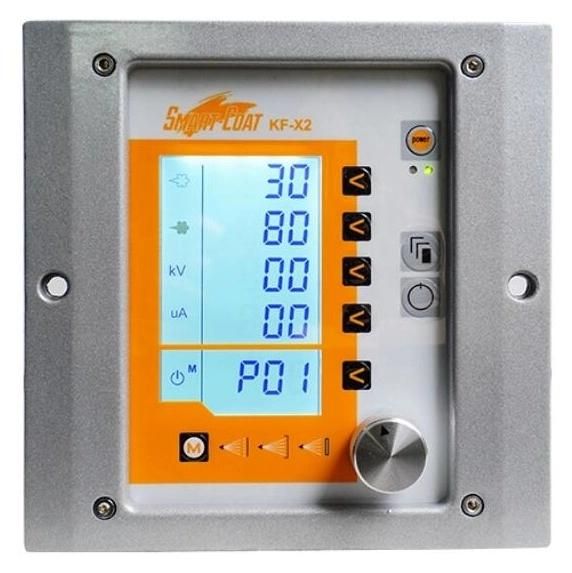

Powder Gun Controller of KF-X2 Powder Coating Equipment



1. Button type control is more convenient to operate, and switch from different application programs flexibly.
Functions of controller include: 3 pre-set programs, store programs, dosing air, adjust powder output, voltage and current.

2. Offers 3 pre-set standard application programs for flat parts, profiles and recoating jobs, features very easy to operate for beginners.

3. Support to create and store coating programs up to 20, different workparts could be powder coated with the optimum settings.

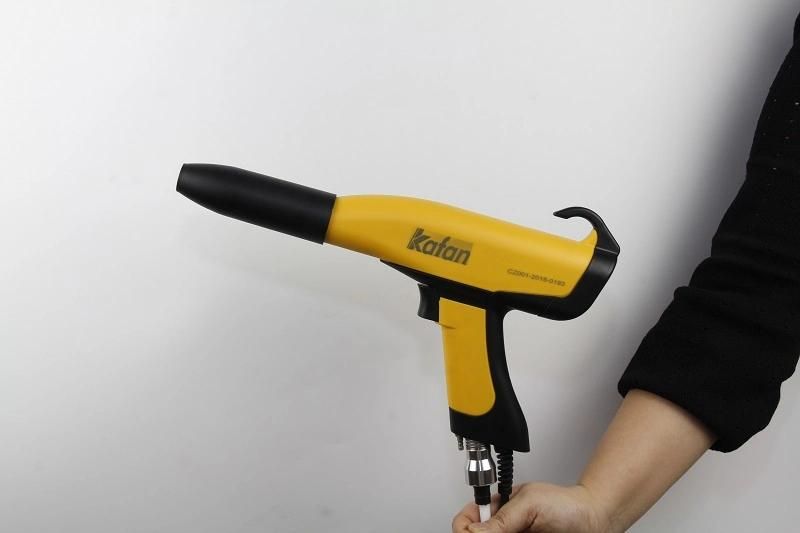

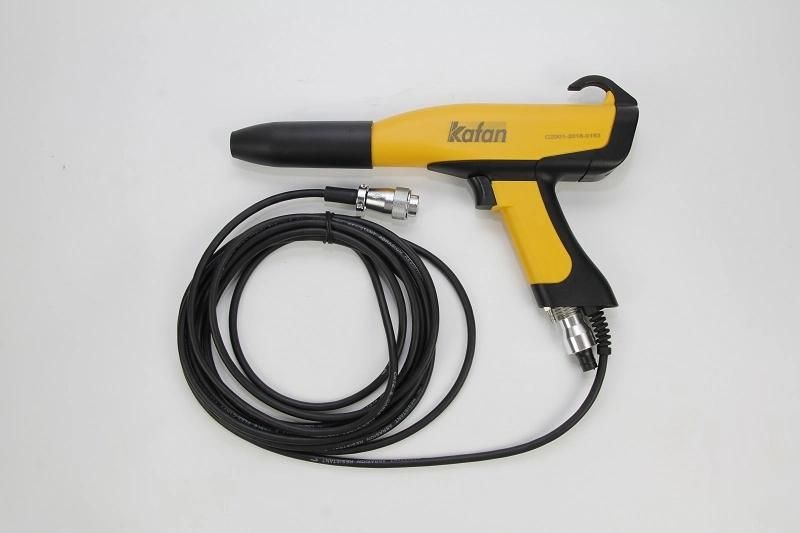

COLO-08 Powder Coating Spray Gun



1. Only 500g powder gun body maintains all practical functions, ergonomical design is able to reduce operators' fatigue from working long hours.

2. 100 kV manual spray gun maximizes powder charging capacity meanwhile ensures safe operation and efficiency during long lasting use.

3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.

Technical Specifications of KF-X2 Powder Coating Equipment


Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative

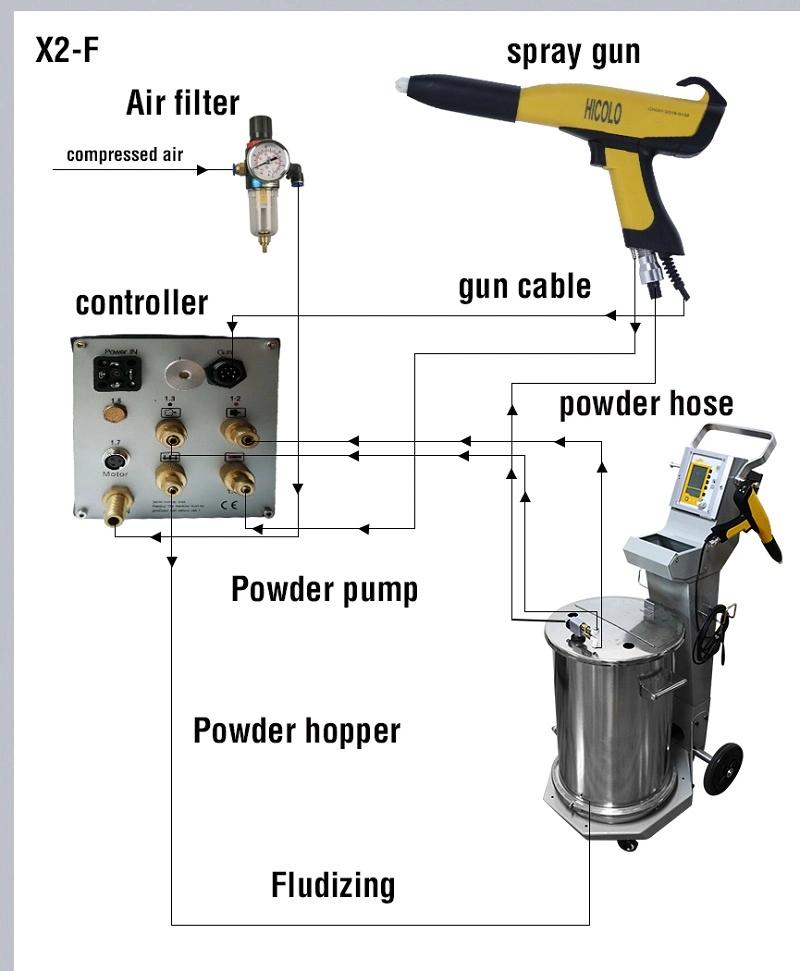

How to install the KF-X2 Powder Coating Equipment?

Any question,welcome contact with me
