Aluminum Window Profile Double-Head Cutting Saw 3700A

Shandong Eworld Machine Co., Ltd.
  • After-sales Service：on Line
  • Warranty：One Years
  • Input Voltage：230,460V ,3,60Hz
  • Input Power：3kw
  • Air Pressure：0.5~0.8MPa, 120psi
  • Air Consumption：60L,Min

Base Info

  • Model NO.：3700A
  • Motor Rotation Speed：2800r,Min
  • Cutting Length：400~3700mm
  • Cutting Length Tolerance：+ 0.005â€
  • Cutting Angles：90degree 45 Degree
  • Cutting Width：10~120mm
  • Cutting Height：10~200mm
  • Saw Feeding Speed：0~3m
  • Saw Blade Standard：450mmx4.4X30xz120
  • Transport Package：Seaworthy Package
  • Specification：450-3700
  • Trademark：Eworld
  • Origin：China
  • HS Code：84752919
  • Production Capacity：10 Sets,Month

Description

Basic Info.

Model NO. 3700A Motor Rotation Speed 2800r/Min Cutting Length 400~3700mm Cutting Length Tolerance + 0.005†Cutting Angles 90degree 45 Degree Cutting Width 10~120mm Cutting Height 10~200mm Saw Feeding Speed 0~3m Saw Blade Standard 450mmx4.4X30xz120 Transport Package Seaworthy Package Specification 450-3700 Trademark Eworld Origin China HS Code 84752919 Production Capacity 10 Sets/Month

Product Description

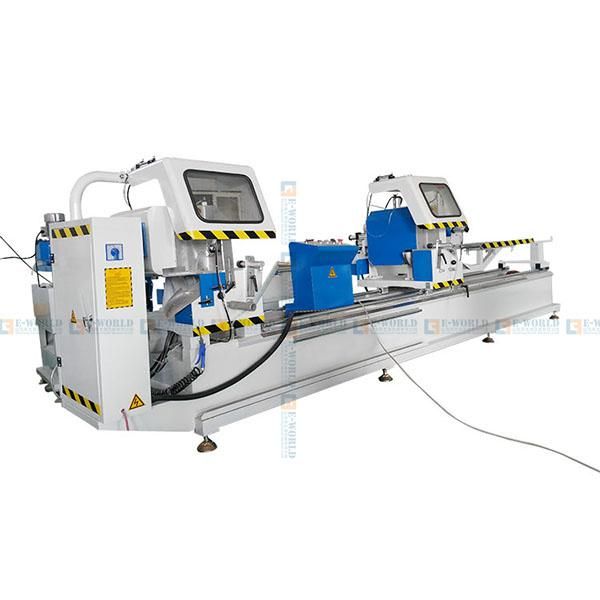

Aluminum Window Profile Double-Head Cutting SawDouble-head Saw machine is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle and 90 angles
 Aluminum Window Profile Double-Head Cutting Saw 3700A
2.Feature
  1. Imported carbide saw blade gives accurate processing and high endurance.

  1. Imported linear guide rail and linear bearing motion pair ensures steady processing accuracy.

  1. Saw blade rotates smoothly due to high accuracy main shaft.

  1. Uniform speed feeding and smooth motion due to airdraulic damping.

  1. Auto-opening guard shield ensures saft operation.

  1. Auto-induction middle profile supporter and following convenient mak the loading and clamping convenient.

  1. Adopts imported linear guide pair,with high accuracy and long service life. 45°and90°cutting is available
3.Technical parameter
MODEL450*3700A
Input voltage230/460V /3/60Hz
Input power3Kw
Air pressure0.5~0.8MPa/ 120psi
Air consumption60L/min
Motor rotation speed2800r/min
Cutting length400~3700mm
Cutting length tolerance+ 0.005â€
Cutting angles90, 45
Cutting width10~120mm
Cutting height10~200mm
Saw feeding speed0~3m
Saw blade standard450mmx4.4x30xZ120
Overall dimensions4.5x1.2x1.4M€
