• Model NO.：XM
• Wire Diameter:1.3mm-4.5mm：Mesh Hole:25-100 mm
• Mesh Width:500-4000 mm：Motor Power:5.5 Kw+0.75 Kwx3 +2.2 Kw
• Machine Weight:2.2tona：Delivery Detail:30 Days After Receiving Payment
• Transport Package：Wooden Box
• Specification：5000mm*2000mm*1800mm
• Trademark：XM
• Origin：China
• HS Code：8463300000
• Production Capacity：8 Set,Sets Per Month

 ANPING XINGAO METAL WIRE MESH CO.,LTDContact NameAngelMesh width3000mmMaximum mesh hole size100mmMinimum mesh hole size25mmMaximum Wire diameter4.5mmMinimum Wire diameter1.3mmMaterial typeGalvanized wire, Black wire or cold-drawn uncoated wireSelvage typeHook edge or Screw edgeMachine speed80-120 Square meters / hoursMachine weight2.2TMachine size5.0x2.0x1.8mMachine voltageThat we can do 415 v - 240 v, 50 HZNumber of moulds included2 set(1Knife plate, 1Mold barrels).Drive system typeServo motor(EURA) 5.5KWPLC brandDeltaControl system typeYouKongControl system brandYouKongAdjustment parametersOn the touch screenDelivery time30 day

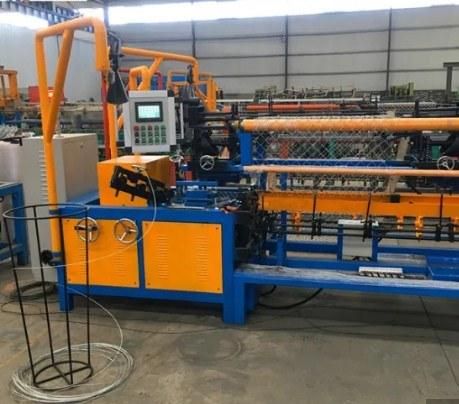

Feature /advantage of chain link fence machine

1. Two sets mold for free.
2. Automatic alarm system.
3. Double wire system, more efficient.
4. Mechanical automatic roll wire mesh.
5. The main motor uses the servo motor.
6. The wire mesh width is adjusted automatically.
7. The machine is controlled by the touch screen.
8. Can be used with kinds of galvanized or pvc wire.

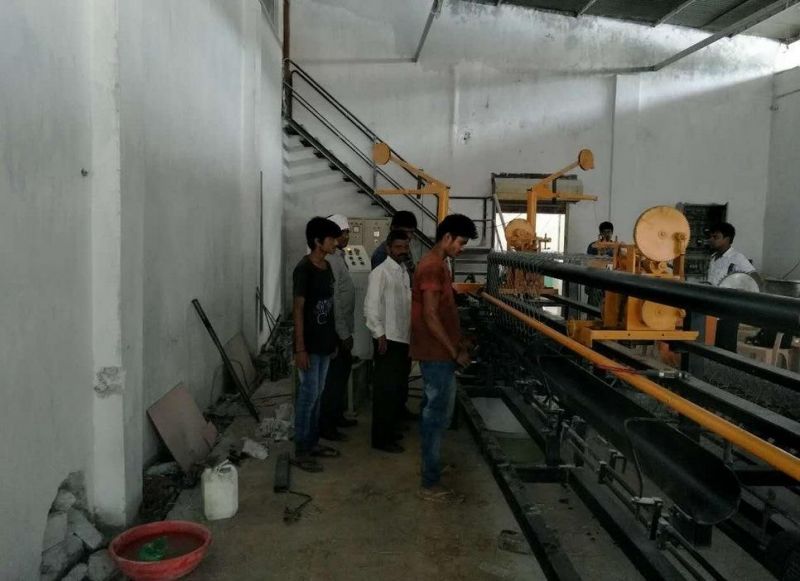

About after-sales service and installation machinery.

The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary $80 per day, and the air ticket, accommodation,
eating and some related fees should be your responsibility.


Contact :Angel
