Hat Profile Cold Steel Roll Tile Forming Metallic Processing Machine

Xiamen Xinhonghua Machinery Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Cold Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：SGS
  • Warranty：12 Months

Base Info

  • Model NO.：YX33-56
  • Customized：Customized
  • Advantage：Work Flexible
  • Condition：New
  • Dimension：9000*1600*1500mm
  • Weight：7500kgs
  • Motor Power：22kw
  • Voltage：380V,60Hz,3pH
  • Forming Width：310mm
  • Forming Step：17 Steps

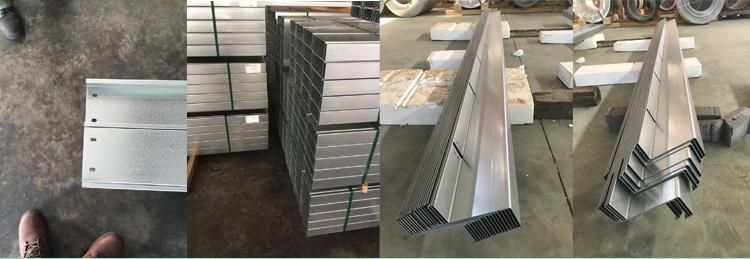

  • Usage：Roll Forming Highway Guardrail
  • Delivery Time：Delivery Immediately After The Machinery Is Assemb
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Tolerance：±2mm
  • Transport Package：Standard Export Package
  • Specification：SGS
  • Trademark：XHH
  • Origin：Xiamen of China
  • HS Code：8455229090
  • Production Capacity：20 Sets,Month

Description

Dimension9000*1600*1500mmMotor Power22KWVoltage380V/60HZ/3PHForming Step17 stepsForming Width310mmWeight3000KGS
Main Machine Accessories:

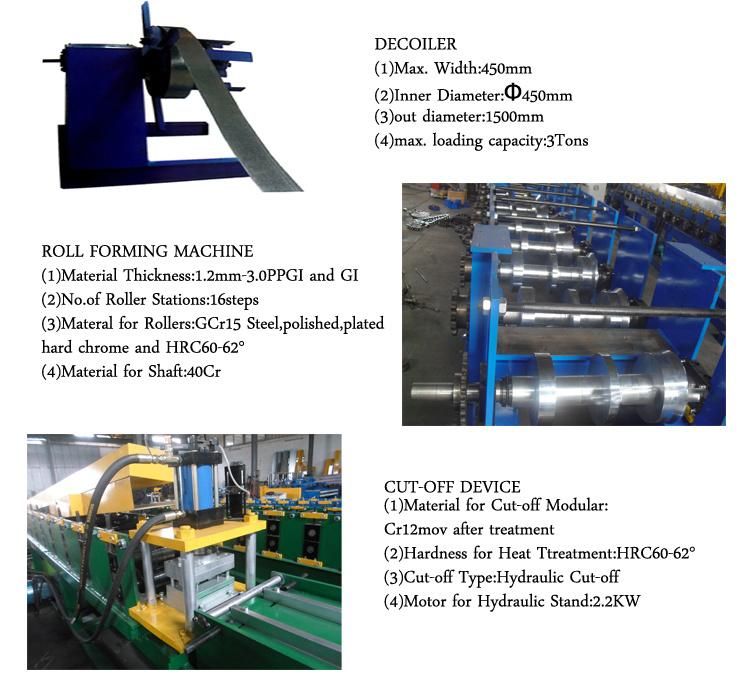

(1) Main Highway Guardrail Forming Machine;

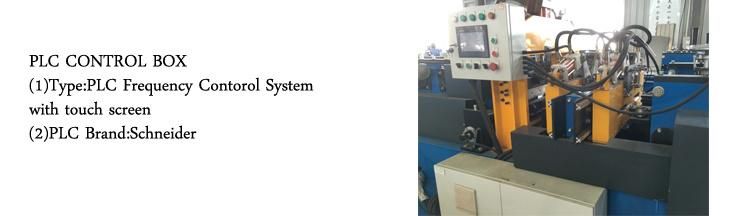

(2) PLC computer controlling system with touch screen;
(3) tools;
(4) Operational manual.Hat Profile Cold Steel Roll Tile Forming Metallic Processing Machine
