Basic Info.

Customized Customized Advantage Use Widely Condition New Roll Speed 20m/Min-40m/Min Material of Roller Gcr15 Main Power 11kw Hydraulic Power 7.5kw Transport Package Suitable for Sea Packing Specification CE, SGS Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

High Speed Track Cutting Keel Roll Forming Machine
Main technical data:
A: Manual Uncoiler
(1)     Dimensions: 1700mm*1000mm*800mm
(2)     Width of feeding: 300mm
(3)     Capability: 3Ton
(4)     Bound of expand &fight: 480mm-520mm
(5)     Mode of expand &fight: inner expand &fight by manual
(6)     Way of feeding: manual

B.     Roll forming main machine
1: Coil width: depend on profile
2: Working speed: 30m/min cut length in 3m
3: Roll station: depend on profile
4: Material of roller: Gcr15 forge steel, polished and coated with chrome HRC58-62°
5: Material of main shaft:45forge steel, diameter roller: 65mm
6: Main power: 7.5kw
7: Forming thickness: 0.5-0.8mm galvanized steel   195-235Mpa
8: Transmission: by Chains
9: All the drive parts should have protective cover
10: Size of machine: about 6m*1.2m*1.4m
11: Color of machine: dark blue and red
12. Seller will design the machine according to the middle thickness 0.65mm.
13:  Cutting:
(1) Machine adopts hydraulic track cutting
(2) Cutting after forming: Cut the sheet after roll forming to required length
(3) Cutting motion: The roll forming part NON-STOP when cutting.
(4) Material of blade: CR12with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: +/- 1.5mm
(7) Drive by servo motor
(8) Power of servo: 3KW
(9) Brand of servo: Yaskawa

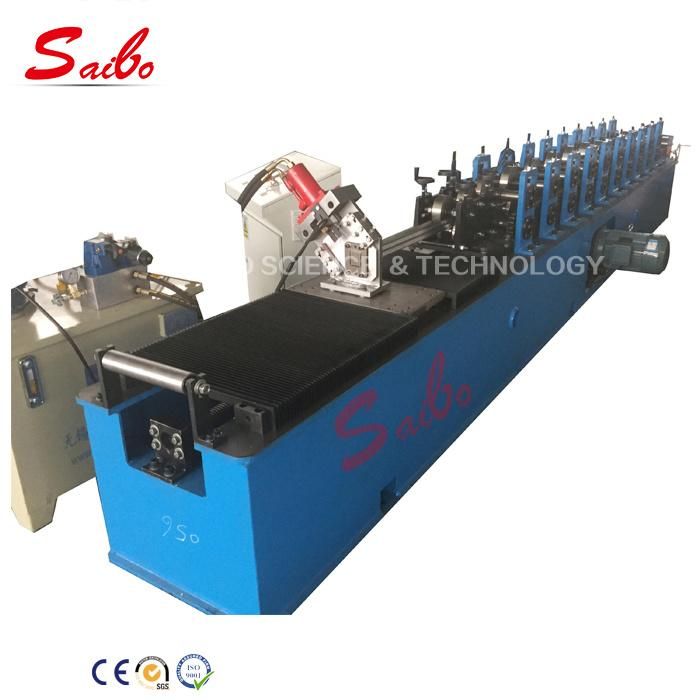

Sample photo for reference

C: Control panel
(1)     Voltage, Frequency, Phase: 415V, 50 Hz, 3Phase (according to customer's request)
(2)     Automatic length measurement:
(3)     Automatic quantity measurement
(4)     Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)     Length inaccuracy can be amended easily.
(6)     Control panel: Button-type switch and touch screen
(7)     Unit of length: millimeter
(8)     Language: English and Chinese
(9)     Brand of PLC: Panasonic
(10) Brand of touch screen: Weinview of Taiwan
(11) Brand of transducer: Yaskawa
(12) Brand of Relay: Schneider
(13) Brand of encoder: Omron
(14) Color of control panel: grey

D: Hydraulic station
(1)     Power: 7.5KW
(2)     Hydraulic pressure: 20Mpa
(3)     Brand: China domestic brand
(4)     Color of hydraulic station: dark

E: manual out table: 2 pieces
(1)     Jointed by 60mm*40mm tube
(2)     Size: 1.0m long*0.8mwide*0.6-1mhigh
(3)     One out table with two support rollers( add more rollers)
(4)     Color of out table: dark blue
