• Model NO.：FC36
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Color：Green
• Button Dia.：2-8mm
• Transport Package：Wooden Box
• Specification：SGS
• Trademark：Rainbow
• Origin：China
• Production Capacity：200sets

Basic Info.

Model NO. FC36 Warranty 12 Months Customized Customized Advantage Use Widely Condition New Color Green Button Dia. 2-8mm Transport Package Wooden Box Specification SGS Trademark Rainbow Origin China Production Capacity 200sets

Product Description

Machine Instruction

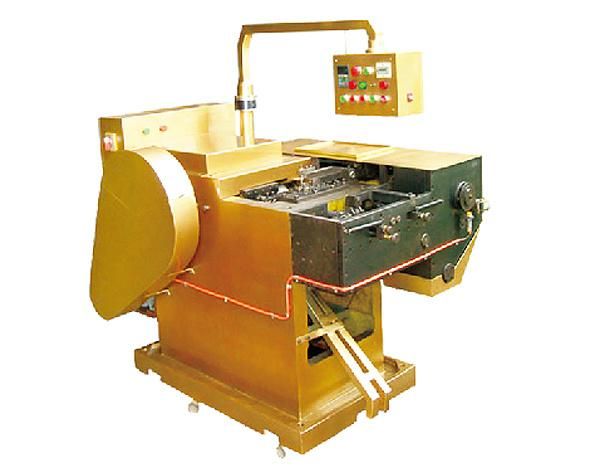

Bimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.

Technical specification


  FC36-3 Tri-metal Rivet Automatic Machine
   Round Button Dia. (mm)       Φ2-Φ8
   Max. thickness of head (mm)       3
   Dia. of rivet shank (mm)       Φ1-Φ4
   Length of rivet shank (mm)    Max 9mm
   Head Silver thickness (mm)    Min 0.25mm
   Foot silver layer (mm)         0.4-2.5
   Rivet output                4000-8000pcs/hr
   Power                      3.0kw, 440v, 50hz
   Net weight                     1800kgs
   Quantity                        1






Our company
Our company comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation,now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.

  We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service,our main products include wire drawing machine,Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.

  With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and we invested in some fastener equipment manufacturers and built our own bolt maker,mesh belt furnace and zinc plating line factories.We do these factories' foreign market developing and have received highly praises from a lot of customers.

  We have established reputation in countries such as India, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
