• Model NO.：YX32-49
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Vineyard Posts Roll Forming Machine
• Power：7.5kw+5.5kw
• Steel Thickness：1.5mm
• Transport Package：No Packing
• Trademark：Saibo
• Origin：China
• HS Code：84552210
• Production Capacity：300sets,Year

NoSpecification of the material1Suitable MaterialCarbon steel2Width of the raw material110mm3Thickness1.5mm4ToleranceProfile size ±1mm length: ±1.5mm

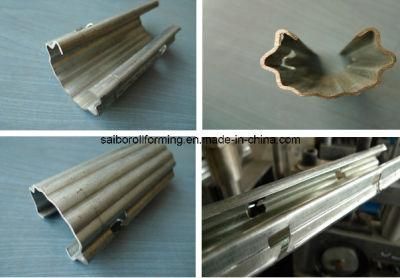

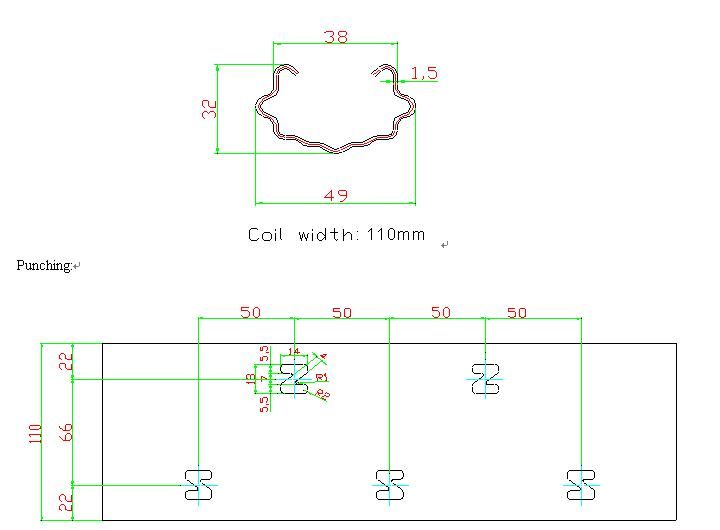

Profile drawing:

The Chart of Process Flow

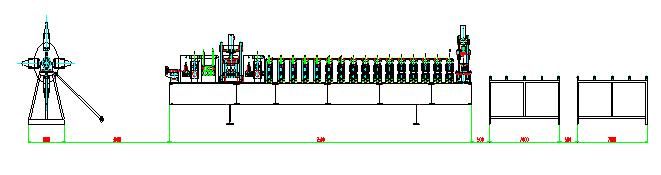

Manual Uncoiler-Feeding -Punching -Roll Forming-Cutting-Out table

Specification of ComponentsNo Technical Specification & Remark1Leveling part
The quantity of leveler rolls must be planned according to thickness 1.5 mm.
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft:¢65mm, material is SAE 1045, hardening and tempering2Punching
Base on customer provide punching drawing, this machine need adopt one unit hydraulic punching system before roll forming.
Punching mould:Cr1mov HRC58-62 °
Hydraulic power: 5.5kw

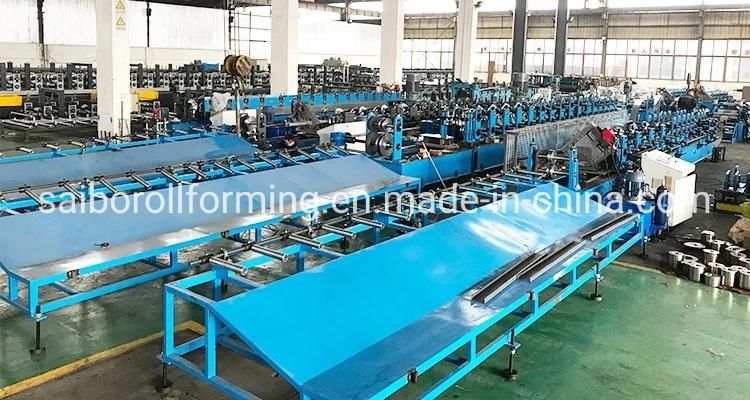

Punching postion and quantity is controlled by PLC3Main Roll Forming Machine
Main frame by 350H beam welding
Machine structure: Wire-electrode cutting
Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ¢56mm material: SAE1045 with tempering
To avoid accidents, the driven parts will be covered with the protective cover4Hydraulic cutting system
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade/punching mould:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,5.5KW
Working pressure: 10-12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product
Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

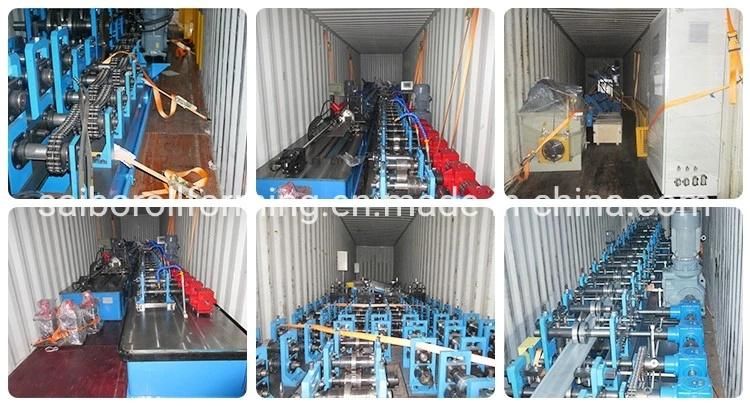

  Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
