• Model NO.：DN25-DN630
• Application：Production of Steel Wire Braids
• Transport Package：Standard Seaworthy Package
• Specification：SGS, ISO, CE
• Trademark：Longterm
• Origin：China
• Production Capacity：1000sets,Year

Product nameStainess steel wire braiding machine for flexible metal hoseWire diameter0.3-0.8mmNo. of spindles16, 24, 36, 48, 72, 96, 128 spindle braiding machineID of the braids

4-600mm

Material of the wireStainless steel, galvanized carbon steel, copper wire

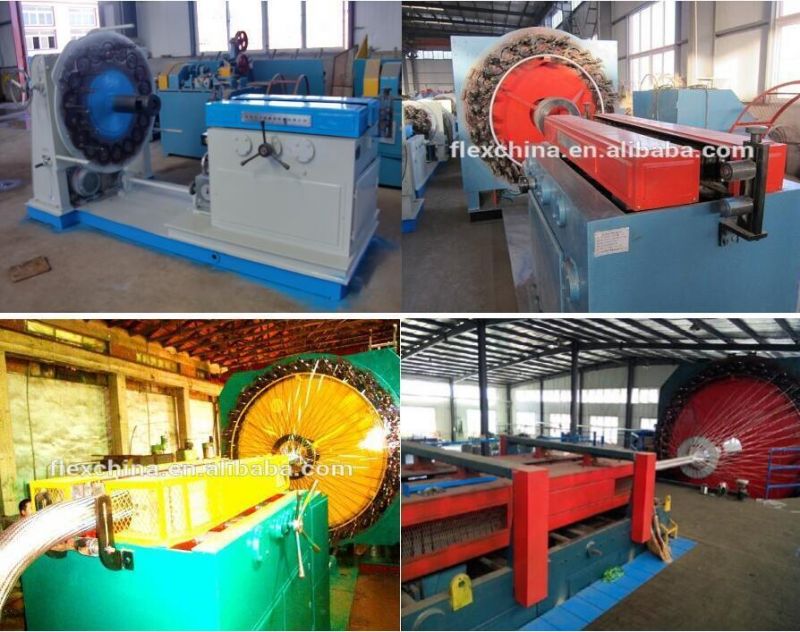

Product Show
20-carrier wire braiding machine
Braid ID: 6-13mm
Rotation speed of spindle: 19.8r/min
Braiding angle:54°44'
Pitch: 13-29mm
Pulling speed: 15-34.5m/h
No. of carriers: 20
Motor power: Y132M1-6   4.0KW
48-carrier wire braiding machine
Braid ID: 30-75mm
Rotation speed of spindle: 7.25r/min
Braiding angle:54°44'
Pitch: 66-166mm
Pulling speed: 29-72m/h
No. of carriers: 48
Motor power: Y132M1-6   7.5KW
96-carrier wire braiding machine
Braid ID: 150-400mm
Rotation speed of spindle: 2.75r/min
Braiding angle:54°44'
Pitch: 240-750mm
Pulling speed: 50-120m/h
No. of carriers: 96
Motor power: Y160L-6   11KW
128-carrier wire braiding machine

Option
Name: Sound proof box
Brand: Comflex
Original: China

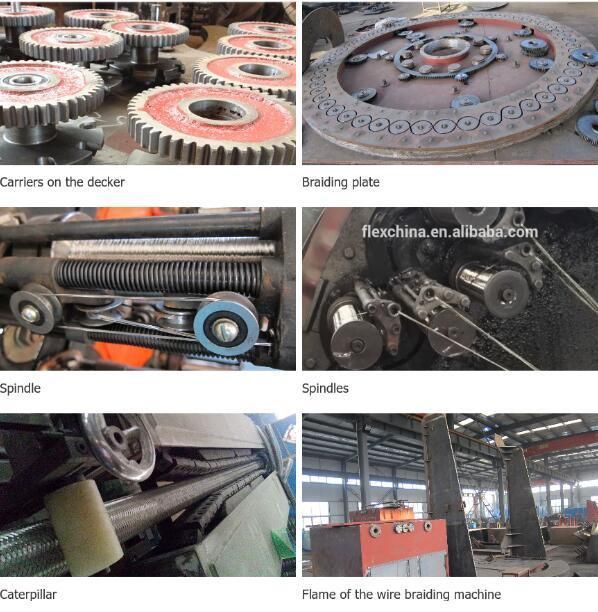

Detailed Image


Related products

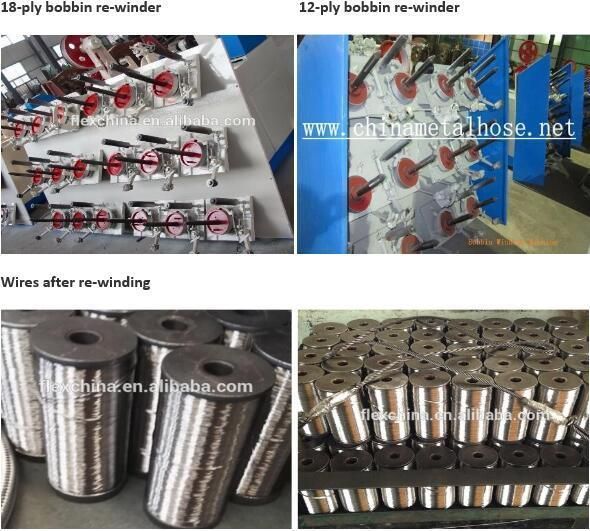

Bobbin re-winder



FAQ:

Q: Are you trading company or manufacturer?
A: We are manufacturers.
Q: Why choose us as your supplier?
A: We are most professional in steel wire braiding machine with 30 years of experience.
Q: What wires can your machine braid?
A: Stainless steel wire; copper lad steel wire; copper wire.
Q: What application of your braiding machine?
A: Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quato you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Structure of braid?
3. How many carriers/bobbins you need for braiding your hose?

For instance, 24,36,4,72,96,128 carrier, etc...

If you have another question, pls feel free to contact us.

Single decker steel wire metal hose braiding machine
