High Speed Wire Braiding Machine with Good Price
Comflex Industrial Co., Ltd.- Motor Power：9.5kw
- Pulling Speed：29-72m,H
- Rotation Speed of Spindle：7.25r,Min
- Application：Production of Steel Wire Braids
- Transport Package：Standard Seaworthy Package
- Specification：SGS, ISO, CE
Base Info
- Model NO.：GBG16-128
- Trademark：Longterm
- Origin：China
- Production Capacity：1000sets,Year
Description
4-600mm

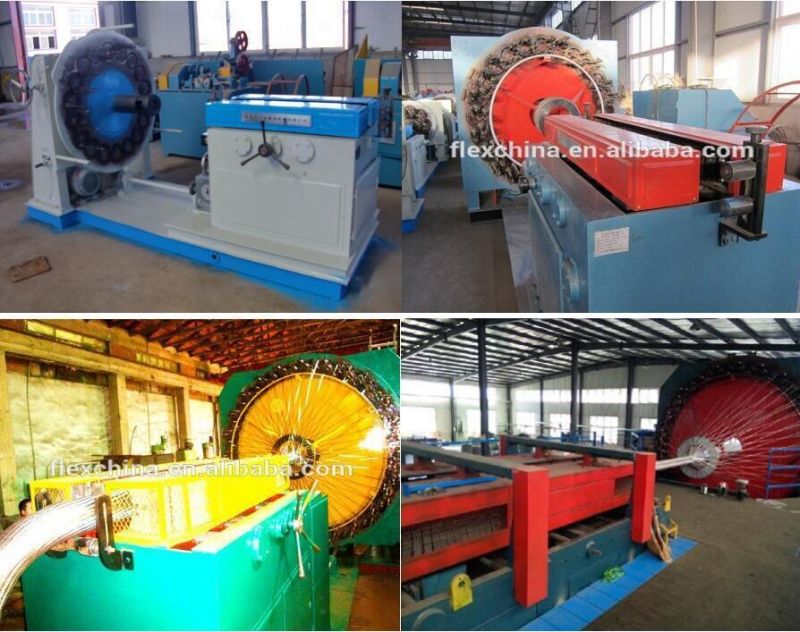

Product Show

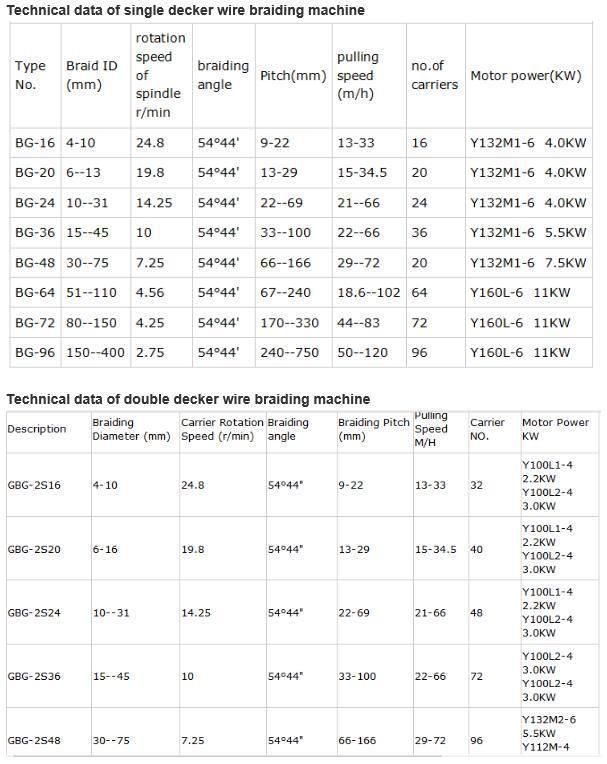

20-carrier wire braiding machine
Braid ID: 6-13mm
Rotation speed of spindle: 19.8r/min
Braiding angle:54°44'
Pitch: 13-29mm
Pulling speed: 15-34.5m/h
No. of carriers: 20
Motor power: Y132M1-6 4.0KW
48-carrier wire braiding machine
Braid ID: 30-75mm
Rotation speed of spindle: 7.25r/min
Braiding angle:54°44'
Pitch: 66-166mm
Pulling speed: 29-72m/h
No. of carriers: 48
Motor power: Y132M1-6 7.5KW
96-carrier wire braiding machine
Braid ID: 150-400mm
Rotation speed of spindle: 2.75r/min
Braiding angle:54°44'
Pitch: 240-750mm
Pulling speed: 50-120m/h
No. of carriers: 96
Motor power: Y160L-6 11KW
128-carrier wire braiding machine
Option

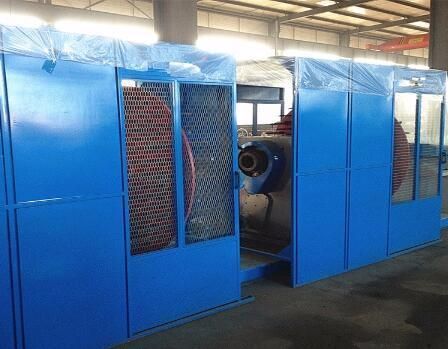

Name: Sound proof box
Brand: Comflex
Original: China
Related products

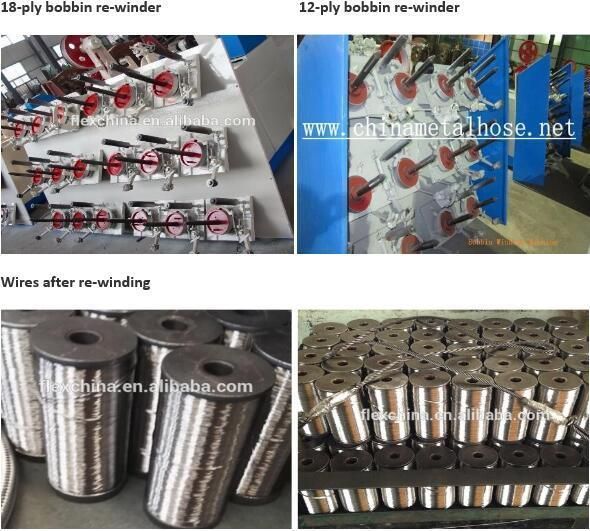

Bobbin re-winder
FAQ:
Q: Are you trading company or manufacturer?
A: We are manufacturers.
Q: Why choose us as your supplier?
A: We are most professional in steel wire braiding machine with 30 years of experience.
Q: What wires can your machine braid?

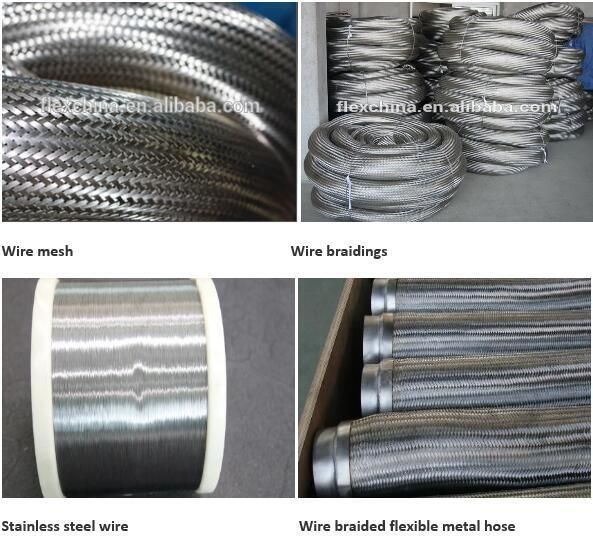

A: Stainless steel wire; copper lad steel wire; copper wire.
Q: What application of your braiding machine?
A: Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quato you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Structure of braid?
3. How many carriers/bobbins you need for braiding your hose?
For instance, 24,36,4,72,96,128 carrier, etc...
If you have another question, pls feel free to contact us.
