Widely Used Low Noise Nail Machine, Automatic Nail Making Machine Hot Sale in Nigeria/Algeria/Egypet/Ethiopia
Wuxi Shenda Nail Machinery Factory- After-sales Service：Video and on Line Demonstration
- Warranty：1 Year
- Transport Package：Plywood Cases
- Specification：1500x1300x1200mm
- Trademark：Shenyida
- Origin：Wuxi China
Base Info
- Model NO.：Z94-1C
- HS Code：8463300000
- Production Capacity：100PCS,Month
Description

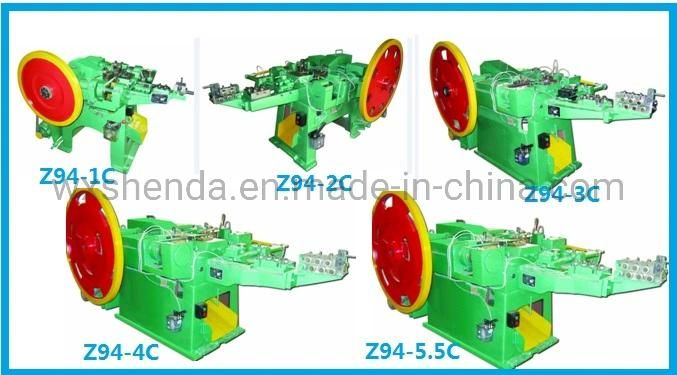

Other related model nail making machine
| parameter | unit | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Dia of nail max | mm | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | mm | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 150 | 100 | 80 | 50 | 25 |
| Length of nail min | mm | 80 | 50 | 30 | 16 | 9 |
| Dsigned out put | pcs/min | 200 | 260 | 320 | 350 | 450 |
| Moter power | kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 2500 | 2000 | 1400 | 1200 | 560 |
| Overall dimensions | mm | 3200x2200x2200 | 2800x1800x1800 | 2200x1600x1650 | 2000x1400x1400 | 1700x1300x1400 |

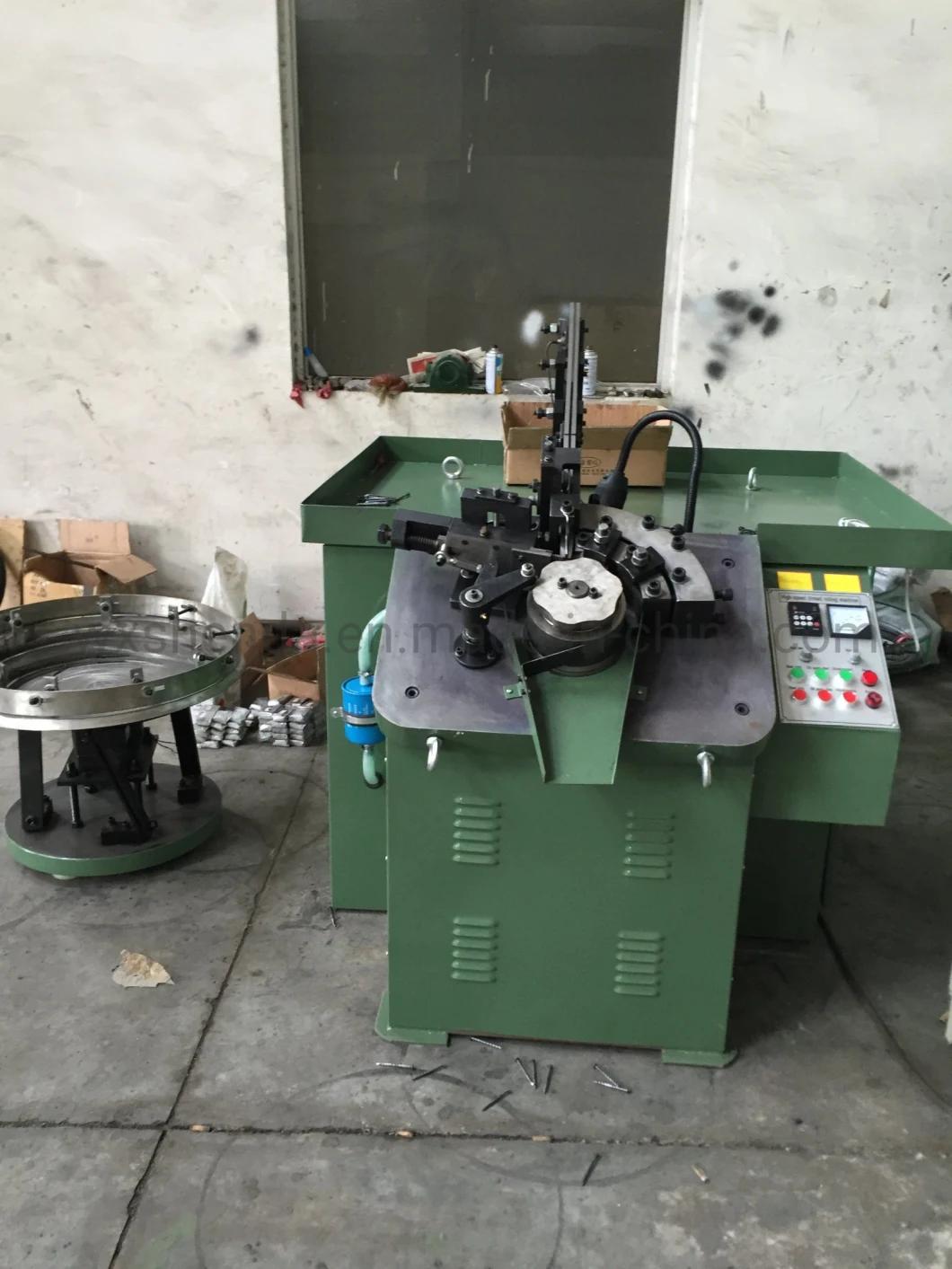

High speed nail rolling machine for screw nail/ring shape nail
| Thread rolling dia | 2.0-4.1mm |
| Nail length | 30-90mm |
| Production rate | 500-1000 poa/min |
| Main motor power | 3.0kw |
| Vibrate hopper capacity | 5.0kg |
| Total weight | 1300kg |
| Overall(LxWxH) | 1300x1300x1500mm |

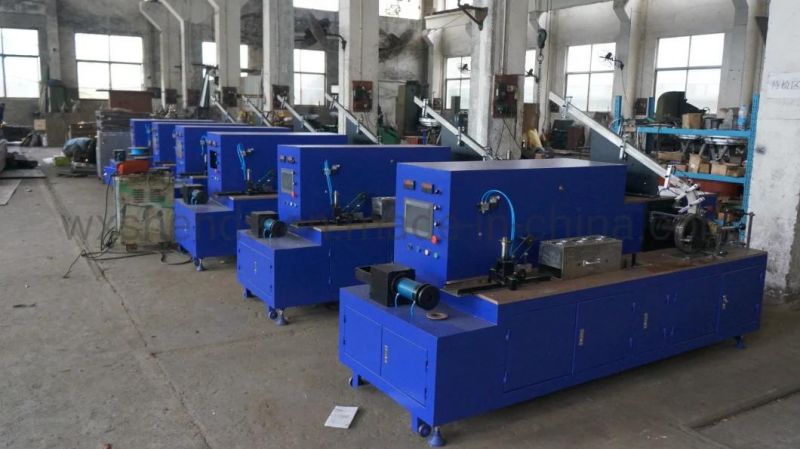

Coil nail welding machine
| Model THN-1 | |
| Range of Nail Dia.: | 1.8mm-4.0mm |
| Range of Nail Length: | 25mm-130mm |
| Output: | 800-2000pcs/min. |
| Rated Power: | 8kw |
| Power of Nail Feeding System: | 0.75kw |
| Power of Welding System: | 20kw, 1000-2000A |
| Power Supply: | 3 phases AC 380V 50-60HZ |
| coil nail welding angle | 15/16degree |
| coil nail welding wire diameter | 0.6/0.7/0.8mm |
| PLC brand | Japan Omron |
| Touch panel brand | TaiWan WEINVIEW |
| convetor brand | Japan Omron |
| replay brand | Japan Omron |
| Packing: | packed in 2 wooden cases |
| Packing Size: | 3000X1500X1800mm |
| 2000×1200×800mm | |
| Weight: | 1600kg |
Machine packing &delivery:
