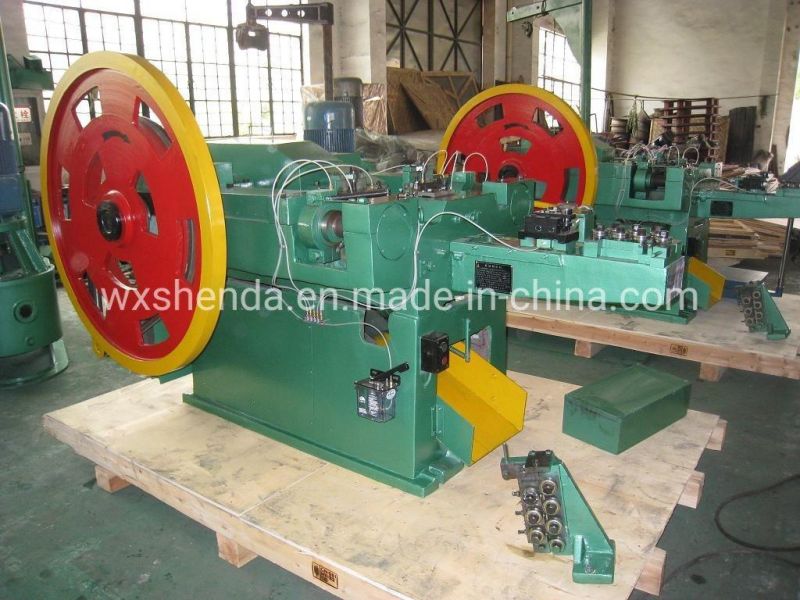

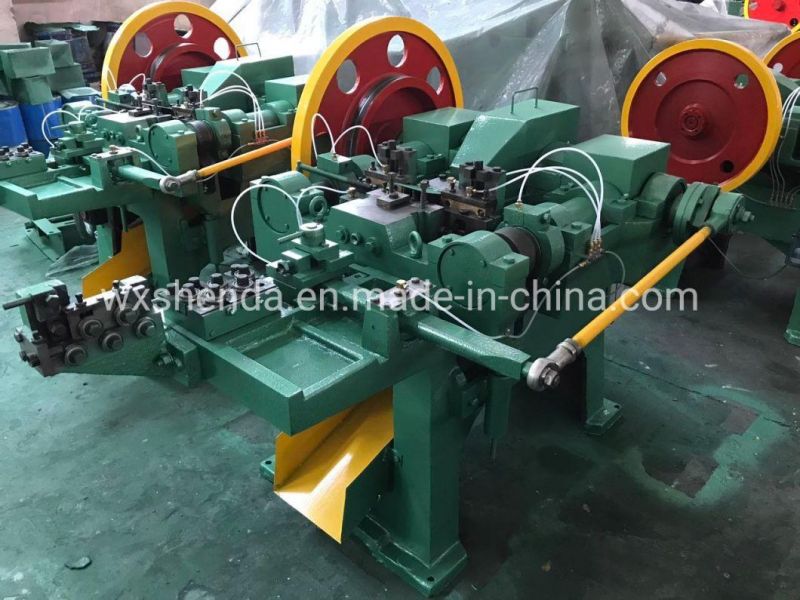

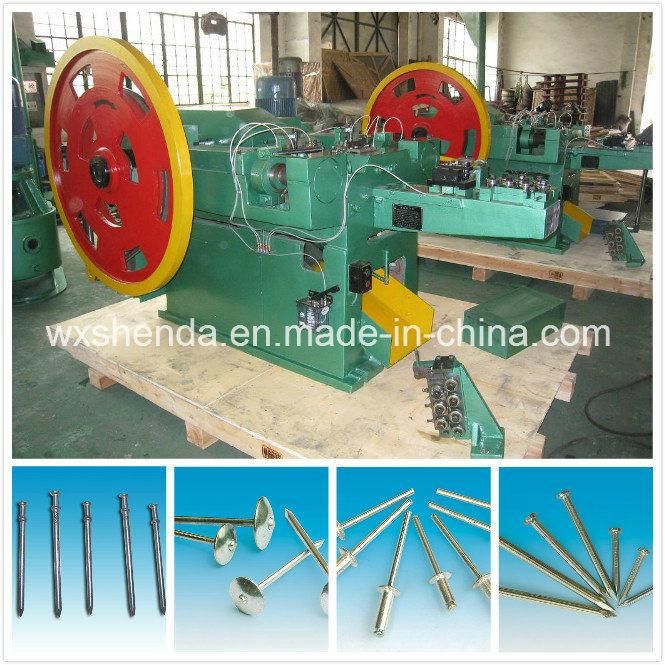

Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine

Wuxi Shenda Nail Machinery Factory
  • After-sales Service：Video and Online Demonstration
  • Warranty：1 Year
  • Transport Package：Plywood Cases
  • Specification：2000x1400x1400mm
  • Trademark：Shenyida
  • Origin：Wuxi China

Base Info

  • Model NO.：Z94-3C
  • HS Code：8463300000
  • Production Capacity：100PCS,Month

Description

parameterunitZ94-3CDia of nail maxmm3.4Dia of nail minmm1.8Length of nail maxmm75Length of nail minmm30Dsigned out putpcs/min350Moter power kw3Weight(approx)kg1400Overall dimensionsmm2000x1400x1400Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine
Othere related model nail making machine parameterunitZ94-5.5CZ94-4CZ94-3CZ94-2CZ94-1CDia of nail maxmm5.54.53.42.81.6Dia of nail minmm3.72.81.81.20.9Length of nail maxmm150100805025Length of nail minmm805030169Dsigned out putpcs/min200260320350450Moter powerkw5.5432.21.5Weight(approx)kg2500200014001200560Overall dimensionsmm2800x1800x
18002200x1600x
16502000x1400x
14001700x1300x
14001500x1300x
1200

Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine
Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making MachineSteel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine

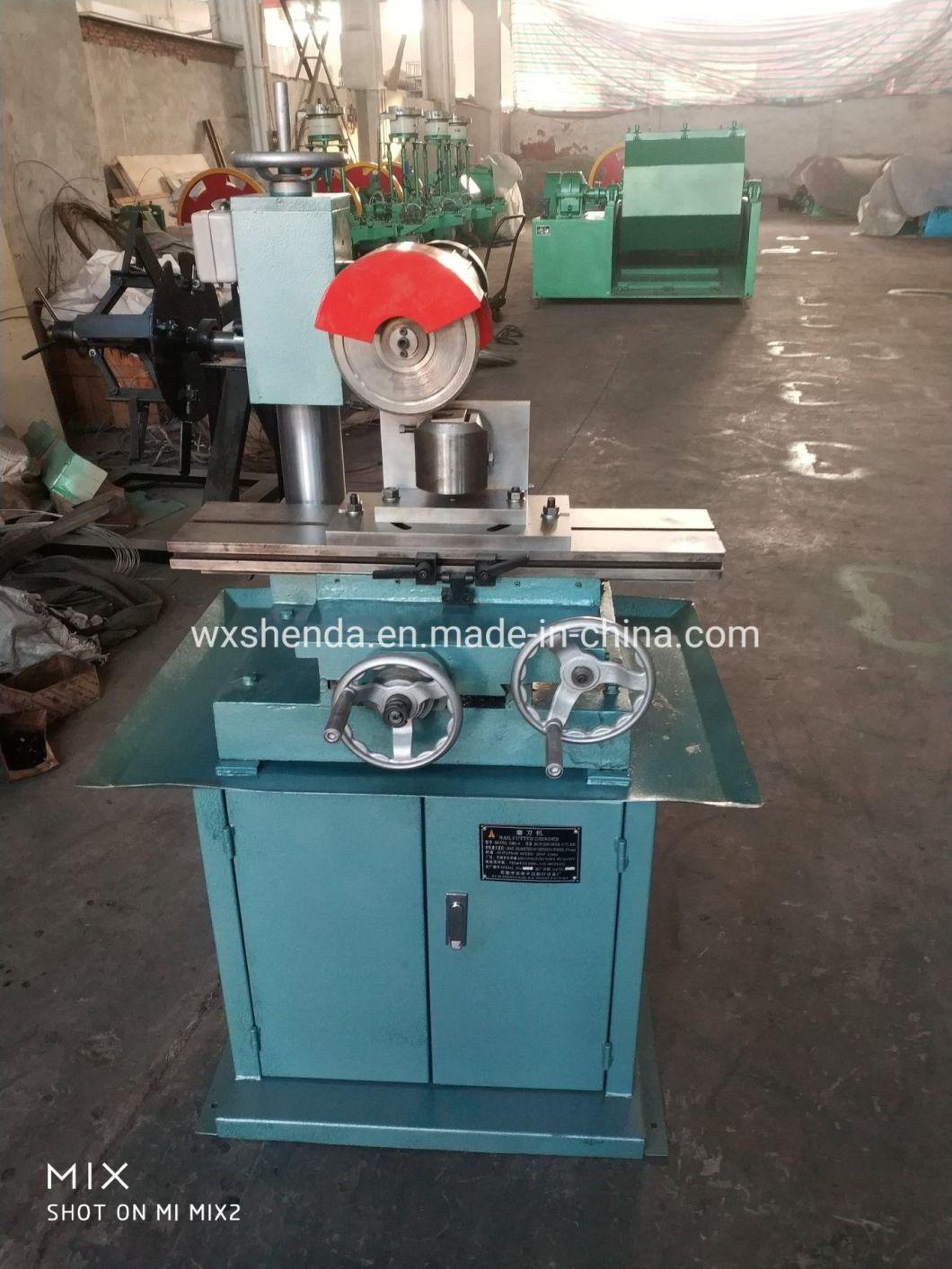

Nail Auxilary machine--nail cutter grinder


Grinding wheel diameter Max200mm
Speed2800r/S
Voltage220V 60HZ 250W
Machine weight200kg
Diamension (mm_900x900x1300

Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine

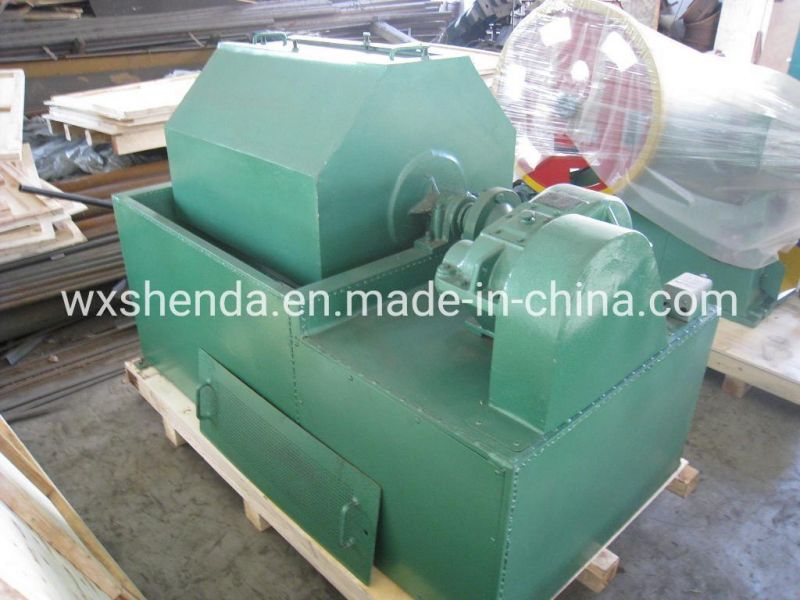

Nail Auxilary machine--nail polish machine


TypeSD-400SD-600SD-1000SD-2000
Capacity400kg600kg1000kg2000kg
Power of motor3kw4kw7.5kw11kw
Overall size1640x90x10001960*1070*14002000x1500x14002500x1500x1600



Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making MachineNail making machine spare parts

Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine

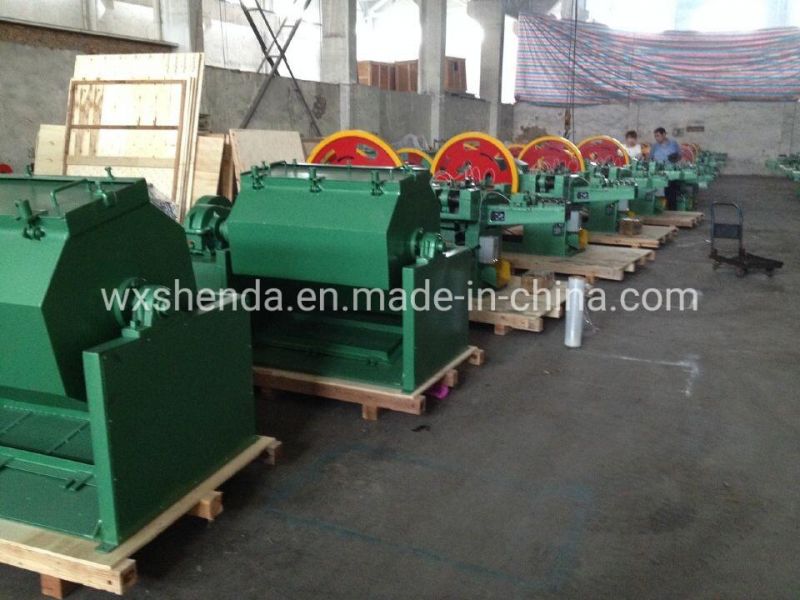

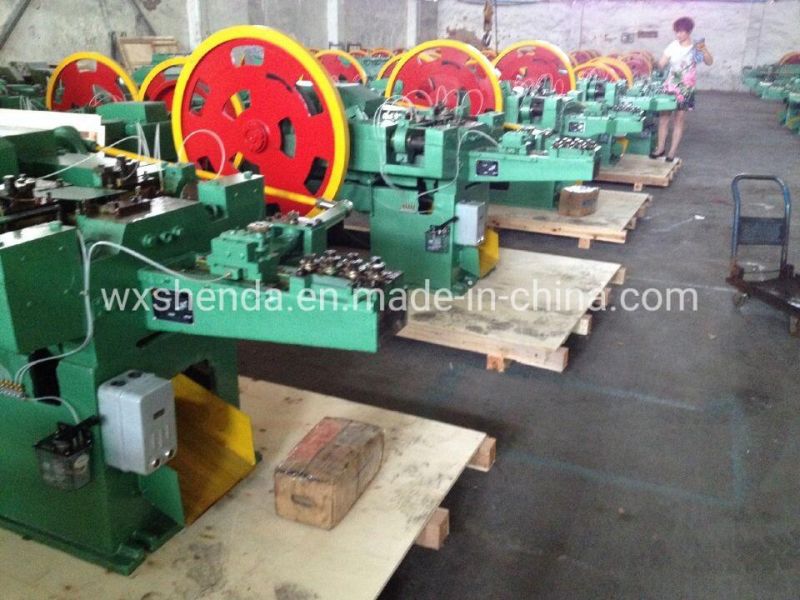

Machine machine working in factory



Our Services


Your concern is our concern! Your request is our request! Your value is our value!

1.27years experience in nail &wire machinery manufacture, strictly cover all requirements for customer.

2. Offer ultimate customization and personalized solutions

3. Factory lay-out and Installation support

4. Engineer available for machine adjusting and testing abroad




Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine

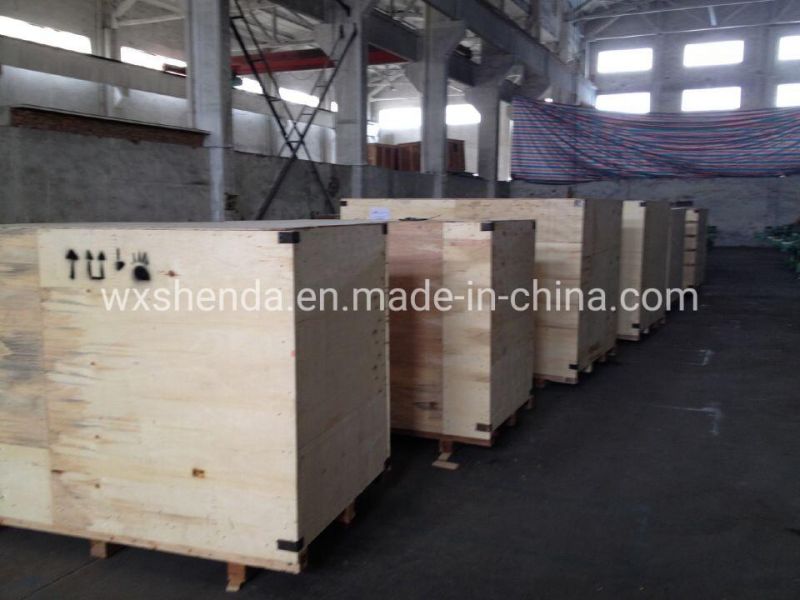

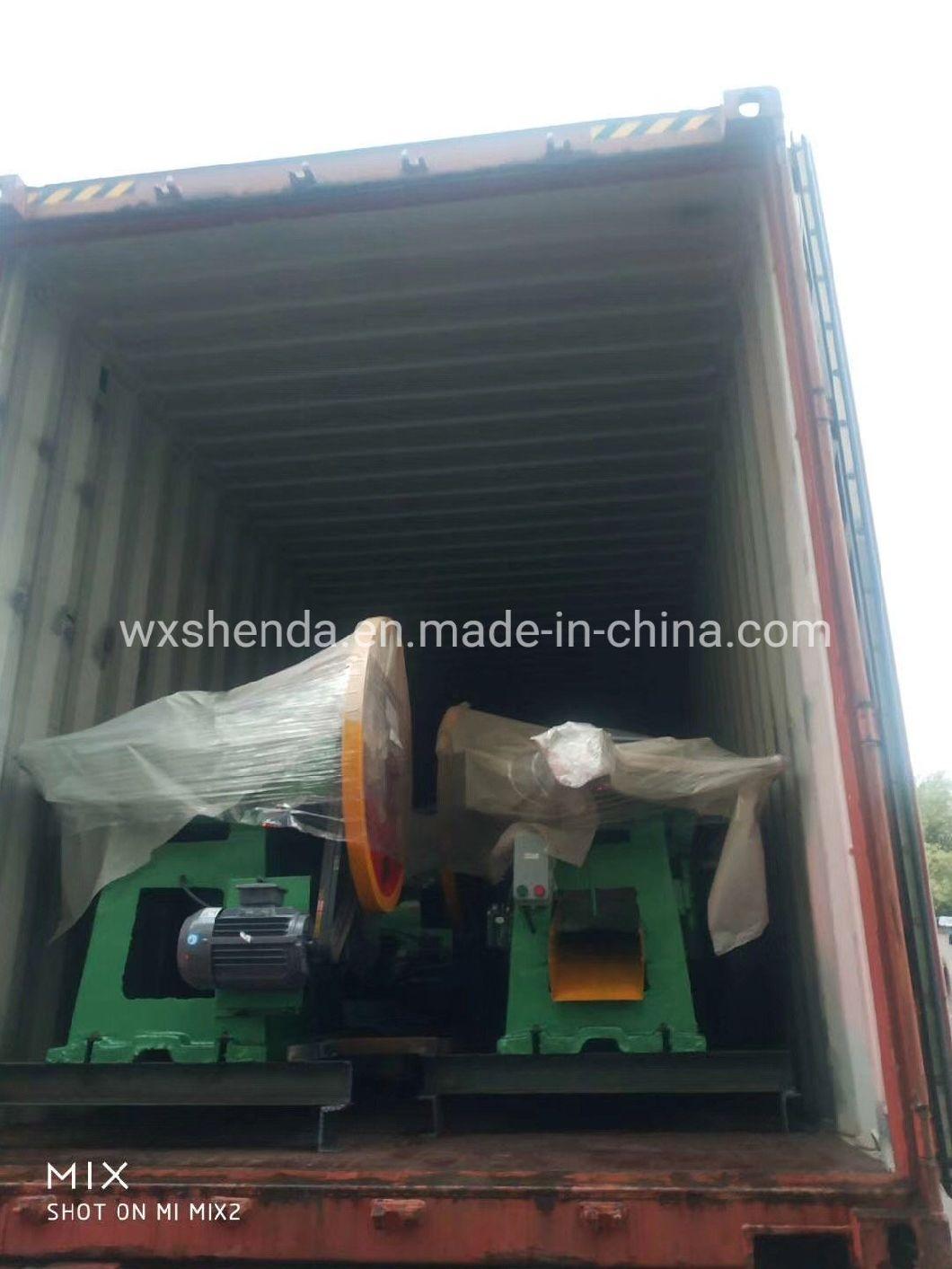

Machine packing&delivery

Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine
Steel Nail Machine for Making Different Size Nail and Screw, Automatic Nail Making Machine


FAQ:
QUESTION1:Do we need wire drawing machine when nail making?
A1:Option:1.we could buy the drawed wire from wire factory and then start nail making by our nail making machine
Option 2:we can buy raw material with diameter 6.5mm/6.0mm/5.5mm and drawed to smaller diameter by our wire drawing machine before nail making.

QUESTION2:How many ton does one machine make per day
A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size

QUESTION3:How can you guarranty the machine quality?
A3:All machine with 12 month guarranty as soon as machine arrive customer.And we can easy to guide our customer to operate and maintain the nail making machine

QUESTION4:How many days for the machine delivery?
A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.
