• Model NO.：YX51-750
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Dimension：16000*1800*1500mm
• Weight：20tons
• Hydraulic Motor Power：37kw
• Voltage：220V,60Hz,3pH
• Height of Floor Decking：45mm
• Effective Width：975.8mm
• Material Width：1219mm
• Thickness：0.8-1.6mm
• Forming Steps：18
• Usage：Floor Decking Roll Forming Machine
• Transport Package：Standard Package for Floor Deck Forming Machine
• Specification：16000*1800*1500mm
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：84552290
• Production Capacity：10-15 Sets,Month

Basic Info.

Model NO. YX51-750 Customized Customized Advantage Work Flexible Condition New Dimension 16000*1800*1500mm Weight 20tons Hydraulic Motor Power 37kw Voltage 220V/60Hz/3pH Height of Floor Decking 45mm Effective Width 975.8mm Material Width 1219mm Thickness 0.8-1.6mm Forming Steps 18 Usage Floor Decking Roll Forming Machine Transport Package Standard Package for Floor Deck Forming Machine Specification 16000*1800*1500mm Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15 Sets/Month

Product Description

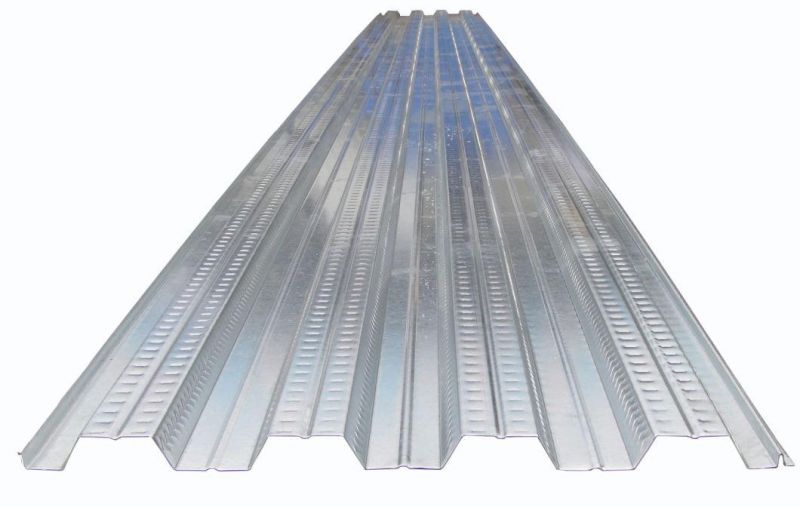

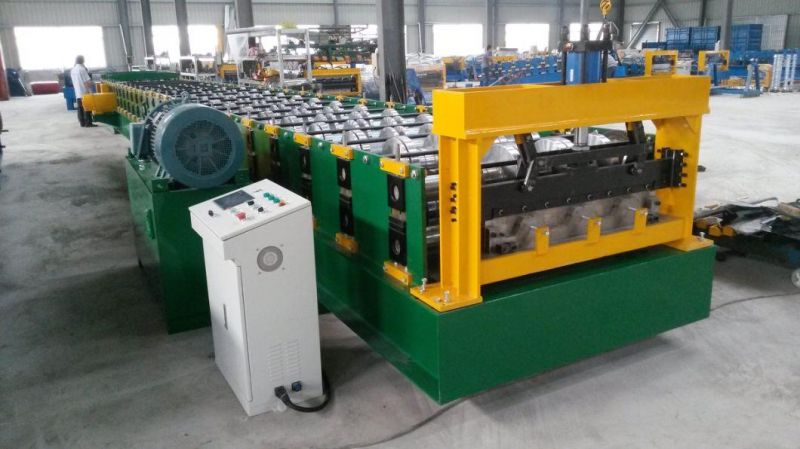

Floor Decking Roll Forming Machine Yx45-975.8:

1. Motor Power: 37KW
2. Material Thickness: 0.8-1.6mm
3. Material Width: 900mm
4. Forming Steps: 18Steps

Main Accessories:

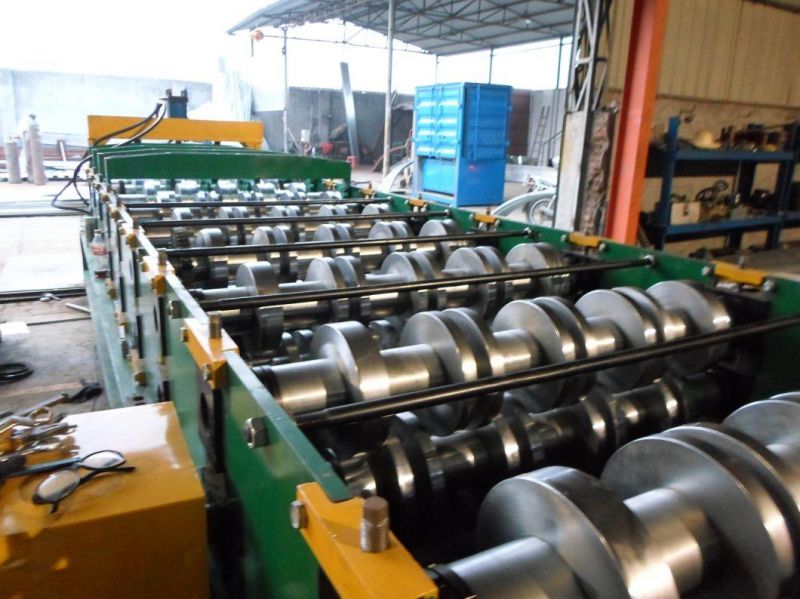

A. Main forming machine,
B. 5 tons manual uncoiler,
C. Hydraulic system,
D. Computer controlling system,
E. Hydraulic forming cutter,
F. Run Out Tables (4 sets),
G. Operation Instruction.


1.	Dimension	16000*1800*1500mm
2.	Weight	20Tons
3.	Hydraulic Motor Power	37KW
4.	Voltage	220V/60HZ/3PH

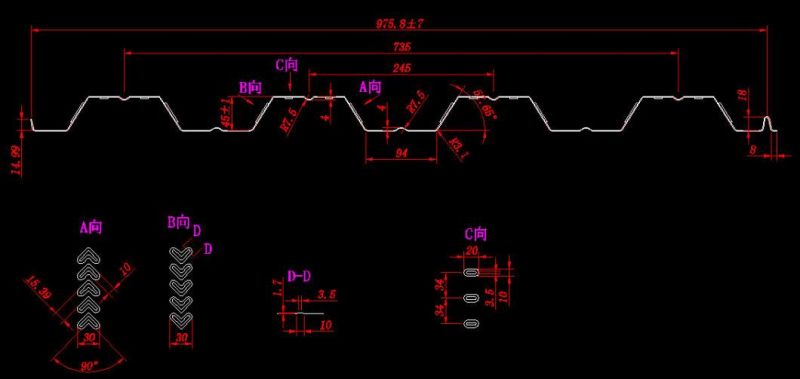

5.	Height of Floor Decking	45mm
6.	Effective Width	975.8mm
7.	Material Width	1319mm
8.	Thickness	0.8-1.6
9.	Forming Steps	18
