• Model NO.：DFH Series
• Transport Package：Wooden Box
• Specification：60DFH, 70DFH, 80DFH, 100DFH, 110DFH, 125DFH, 140DF
• Trademark：HONE PAN
• Origin：China
• HS Code：84834090
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. DFH Series Transport Package Wooden Box Specification 60DFH, 70DFH, 80DFH, 100DFH, 110DFH, 125DFH, 140DF Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

1. DFH Series Cam Indexer Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

Flange Hollow Type Cam Indexer  (DFH) introduction:
The end of output is flange, in the middle of flange there is a through-hole, through which the cable, water pipe, mandrel could across. This series is suitable for all kinds of dial machines.

Flange Hollow Type Cam Indexer (DFH) includes: 60DFH, 70DFH, 80DFH, 100DFH, 110DFH, 125DFH, 140DFH, 180DFH, 200DFH, 250DFH.

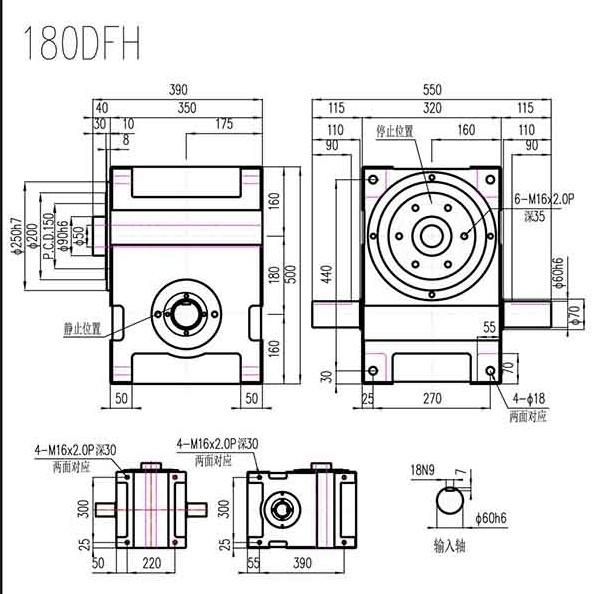

3.Specification of 180DFH Cam Indexer:



Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	1195
Output allowable axial load	C2	kgf	1495
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	1095
Input maximum bending moment	C4	Kgf	1955
Input maximum torque	C5	Kgf-m	336
GD2 of input shaft (note 1)	C6	Kgf-m2	0.39
Indexing accuracy		Sec.	±30
Weight		Kg	225

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.
