• Model NO.：RB
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Color：Yellow
• Transport Package：Wooden Box
• Specification：SGS
• Trademark：Rainbow
• Origin：China
• Production Capacity：100sets,Year

Basic Info.

Model NO. RB Warranty 12 Months Customized Customized Advantage Use Widely Condition New Color Yellow Transport Package Wooden Box Specification SGS Trademark Rainbow Origin China Production Capacity 100sets/Year

Product Description

Machine Instruction

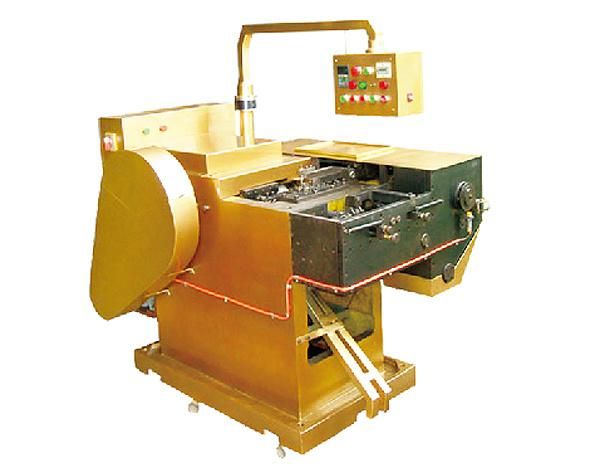

Trimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.
Bi-metal contact rivet machine
Bimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.

Technical specification


Model	HSD-30	HSD-50
Dia. Of rivet head:	2.5-6mm	6-10mm
Dia. Of rivet shank:	1.2-3mm	3-5mm
Dia. Of Button:	2.5-6mm	0.25-0.70
Thickness of button:	0.5-2.2	0.25-0.70
Thickness of silver layer:	0.18-0.35
Stroke of slider:	40mm	40mm
Motor power:	2.3kw	3kw
Output:	90- 130PCS/min	80- 110pcs/min
Package size:	1300X1400X1300mm	1300X1400X1300mm
Weight:	1100kgs	1400kgs

Our company
 Our company comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation,now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.

  We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service,our main products include wire drawing machine,Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.

  With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and we invested in some fastener equipment manufacturers and built our own bolt maker,mesh belt furnace and zinc plating line factories.We do these factories' foreign market developing and have received highly praises from a lot of customers.

  We have established reputation in countries such as India,  US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
