• Production Capacity：200sets

Basic Info.

Production Capacity 200sets

Product Description

A.Description of goods:

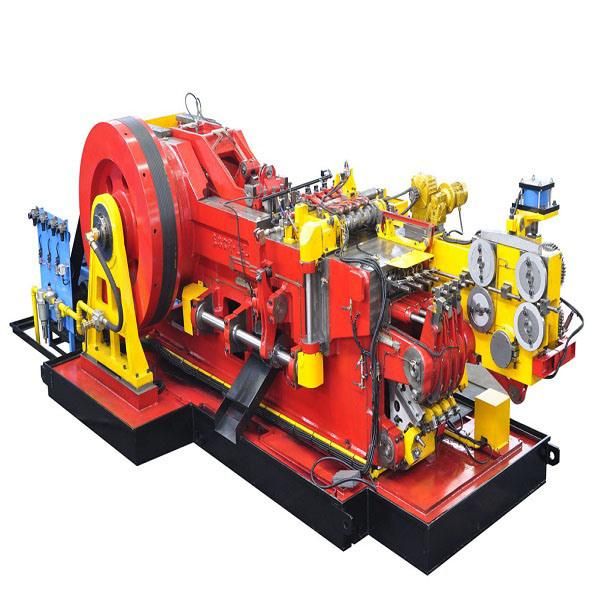

   Model                               SRH-84XL
   Forging Station                            4
   Maximum Cut off Diameter mm              8
    Maximum Cut off Length mm               125
    Kickout length max  mm                   140
    P .K.O Length.Max  (mm)                  30
    Cut off quill (DXL)  (mm)                  38x79
    Main die hole(DXL) (mm)                   70x155
    Dies pitch  (mm)                          87
    Punch hole  (DXL) (mm)                   50x115
    Ram stroke (mm)                           210
    Forging power (mm)                         70
    Max output (pcs/mimute)                      180
    Main motor (hp)                             30
    Approx weight (ton)                          15

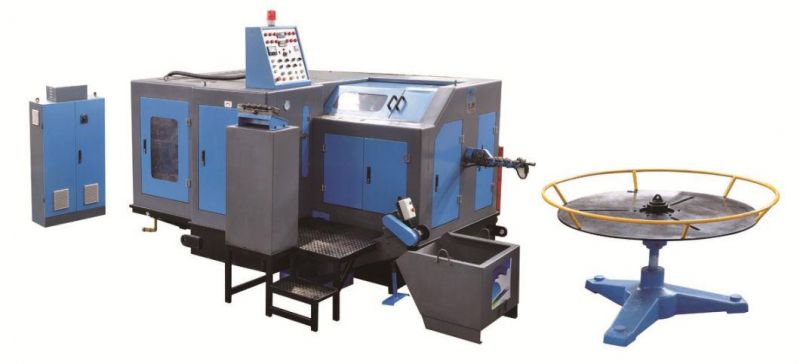

Model	64S	164S
Number of Heading Station	4	4
Forging Force (kgs)	35000	210000
Maximum Cut off Diameter (mm)	8	18
Maximum Cut off Length (mm)	80	195
Product Shank Diameter (mm)	3-6	10-16
Max Die kick out stroke (mm)	70	178
Max punch knockout stroke (mm)	12	40
Main Ram Stroke (mm)	110	260
Main Die Size (mm)	50x85L	100X190L
Punch die dims (mm)	40x90L	75X185L
Cut-off die dims (mm)	30x45L	60X90L
Main motor power (KW)	15	55
Output (pcs/min)	40-210	70-100
Die  pitch (mm)	60	120
Shank Length of blank (mm)	10-65	70-100
Approx. Weight (kgs)	8000	45000

B. Price: FOB China port

C. Payment: 30% advance payment, the balance by T/T before shipment.

D. Shipment: within 4 months from the date of advance payment date.

E. Packing: Seaworthy packing.

F. Insurance: Will be covered by The Buyer.


G. Warranty: 12 months from the date of delivery for free replacement against the defective/faulty design/poor workmanship.

H. Inspection: At Seller's plant by Buyer before dispatch.
I.Training: Buyer's people will visit to Seller's factory for training/trial run for minimum one week but their stay could be extended until they are satisfied with trail run of the product and machinery specifications. The Buyer will pay all expenses of visit of their people.

J.Trial of the machine

The seller only supply 200kgs Carbon steel material free for trial, if the buyer need make more trial products, then the buyer pay for the trial material cost, the buyer pay the material cost 15 days before trial of the production.
If the buyer pay for the material, the seller can ship the trial product back to the buyer.

K.Optional:
  1. Service: USD7000.-, 3 persons, 7days. (one mechanic engineer, one electric engineer, one English translator), the service person only instruct the buyer install the machine, adjust the machine in working condition and train the operator, the buyer will arrange their workers install the machine according to the instruction, the buyer will prepare the necessary tools, device and material (such as cable, oil etc.) for installation, all these cost should be paid by the buyer. The buyer should pay for service cost before the seller supply service. Before the seller supply service, the buyer should finish the necessary foundation of the machine, connect the power cable, prepare the necessary material (such as lubrication oil etc.), put the machine in working condition, otherwise, if the buyer hasn't finish these job, and extend the service time, the buyer will pay for the extra cost.


We are the biggest dealer in China. We can get the best price from Manufacture .
We can get lower price than you purchase from manufacture directly and we can give you best after-sale service.
We have engaged in exporting more than 20 years.
80% fasteners machine in INDIA Import from us.
Such as Deepak , Empire ,Poojafore , LPS they all use our machines.
We engaged in exporting good quality products. We can give you the best price and best after-sale services.
If you have any questions, we can send engineer to your city solve problem for you.

For any questions,please feel free to contact me.
Look forward to cooperate with you.
