• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Machine Size：10*1.7*1.5m
• Weight：11 Tons
• Operation Language：English or as Per Client`S Required
• Cutter：Cr12 Mould Steel Being Quenched Treatment
• Controll System：Mitsubishi PLC & Converter
• Certificate：CE
• Guarantee Time：First Year Free, Lifetime Services
• Quality System：ISO9001
• Machine Type：Roof Tile Roll Forming Machine
• Transport Package：1*40ft Container
• Specification：ISO, CE SGS BV
• Trademark：Zhongyuan
• Origin：Zhejiang, China
• HS Code：84552210
• Production Capacity：10sets,Month

                                     Tile Hydraulic Press Roof Tile Roll Forming MachineItemSpecificationMaterialTypeColor steel sheetThickness(mm)0. 4 -0. 6Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 0-5m/min. For optionStep distanceAdjustable according to requirement (>=250mm)Speed adjusting modeAC FrequencyCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)11KWUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)Machine`s sizeAbout 11*1.7*1.5m  (Depend on final design)Machine weightAbout 10000kgs

Components of machine:

Decoiler (manual decoiler and hydraulic decoiler for option)    1 set
Feeding & guiding device     1 set

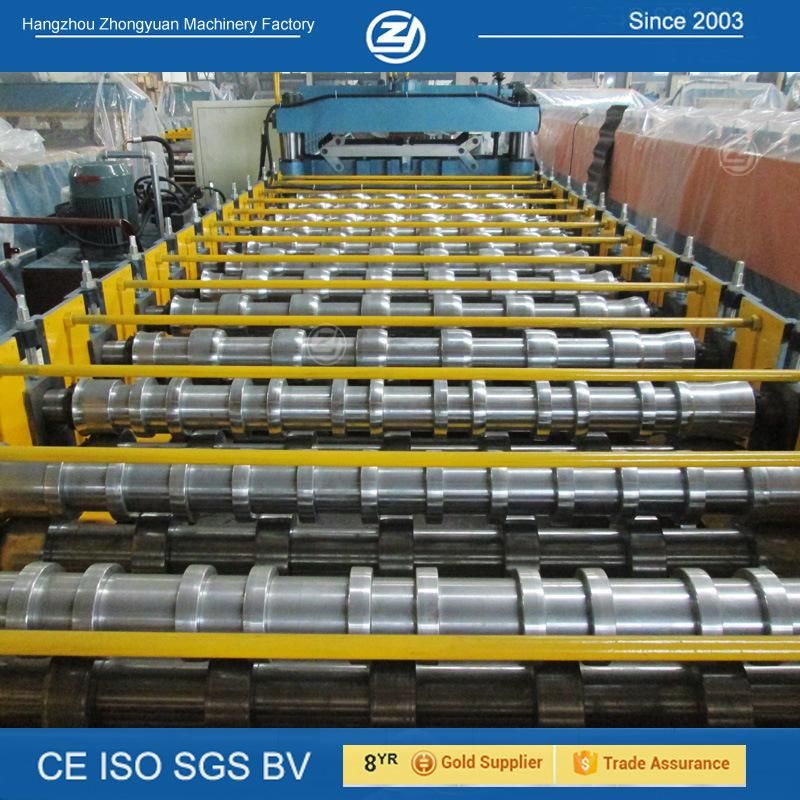

Main roll forming machine    1 set

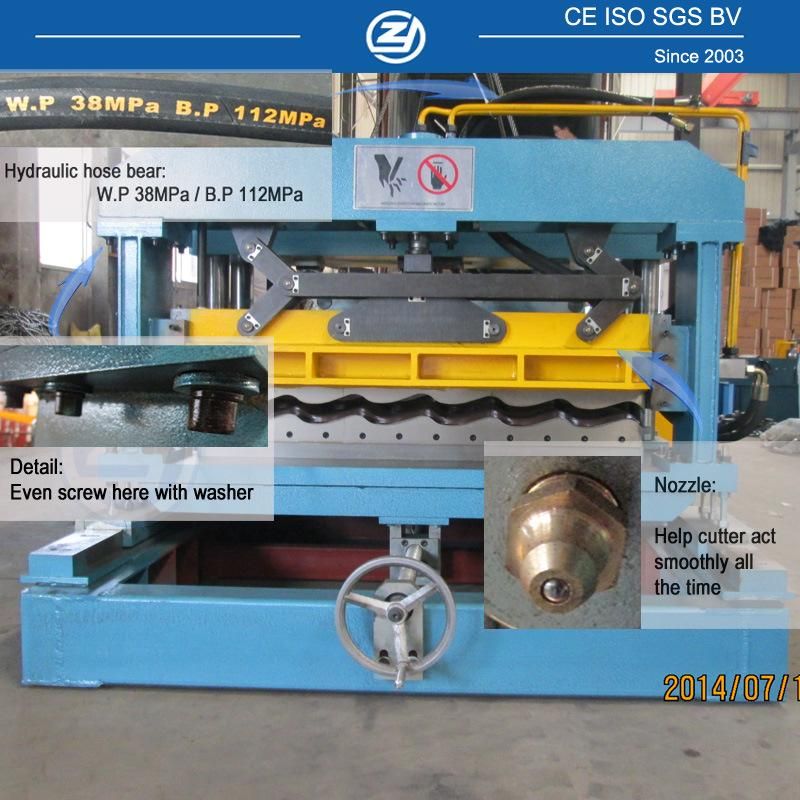

Press device                       1set
Hydraulic cutting system     1 set
Controlling system              1 set
Run out table (auto. Stacker for option)       2 pcs


Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table







Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days after received advaced payment




Please feel free to contact us for more information!
