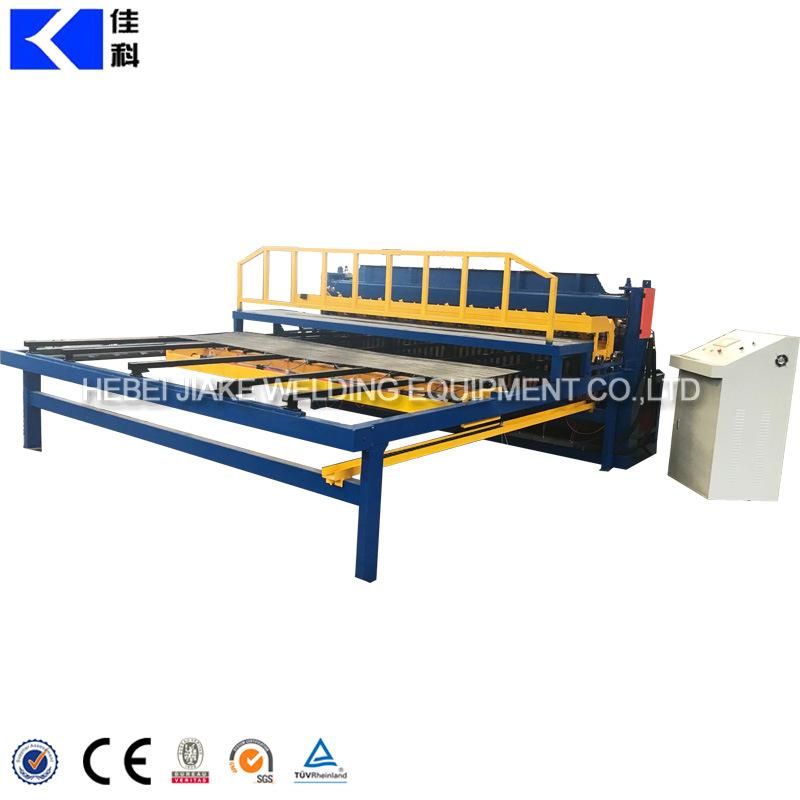

Automatic Anti-Climb Welded Wire Mesh Fence Panels Making Machine

Hebei Jiake Welding Equipment Co., Ltd.
  • After-sales Service：Life Time
  • Type：Welded Wire Mesh Machine
  • Voltage：220,380,415,440V
  • Warranty：1 Year
  • Wire Diameter：2.5-6mm
  • Mesh Opening Size：50*25-300*300mm

Base Info

  • Model NO.：JK-FS-2500A
  • Mesh Width：Max.2.5m
  • Mesh Length：6m
  • Control System：Panasonic PLC
  • Raw Material：Ribbed Bar&Round Bar
  • Welding Speed：45-75times,Min
  • Power Supply：120kw
  • Machine Name：Fence Mesh Panel Welding Machine
  • Transport Package：Plastic &Wooden Box
  • Specification：CE, SGS, ISO
  • Trademark：JIAKE
  • Origin：Anping, Hebei, China
  • HS Code：8463300000
  • Production Capacity：4500kg

Description

ModelJK-FS-2500AWire diameter2.5mm-6mmLongitude wire space50mm-300mmCross wire space25mm-300mmMesh widthMax.2.5mLongitude wire feedingPre-straightened &pre-cutWelding speed45-75times/minCross wire feedingPre-straightened &pre-cutWelding electrodes48pcsRated electrical power125kva*6pcsMachine size8.4m*3.2m*1.7mWeight4500kg
 Packing& delivery60days after we receive the prepaid
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 20 feet or 40 feet container for shipment.
Automatic Anti-Climb Welded Wire Mesh Fence Panels Making Machine

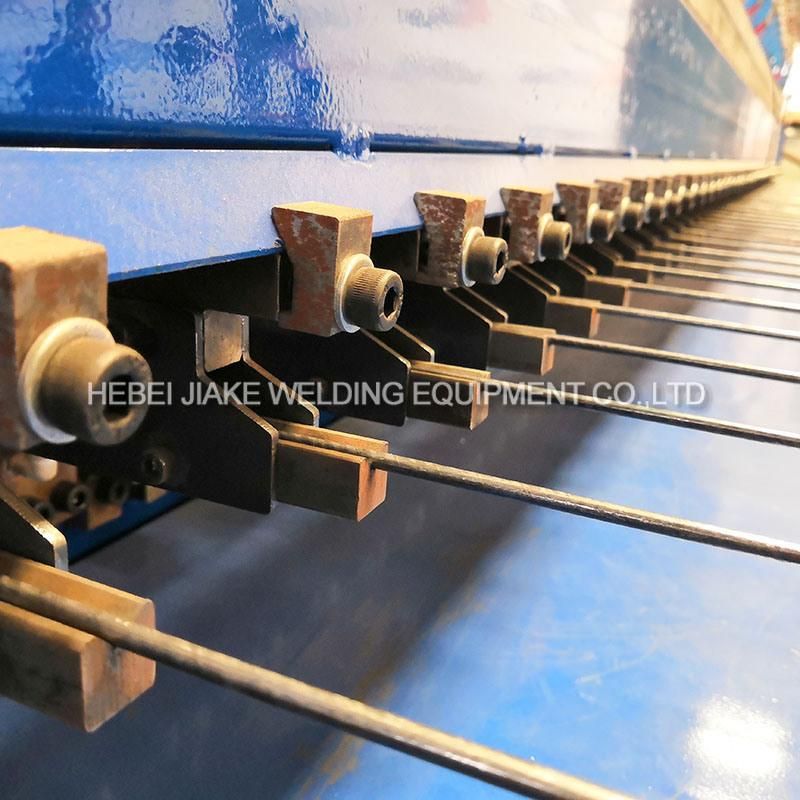

Wire feeding way:
1. Longitude wire feeding: pre-straightened&pre-cut, then insert into slot tunnel device manully.
2. Cross wire feeding:  pre-straightened&pre-cut, then fed by hopper device with step motor.
3. The equipment is integrative welding machine, do without cutting edge(save material), adjustable of distance of Warp thread, input the distance of weft thread to computer, any character can be reach.
Our company developed weft putting in device, it make the putting in better than before,
Automatic Anti-Climb Welded Wire Mesh Fence Panels Making Machine

Auxiliary Equipment

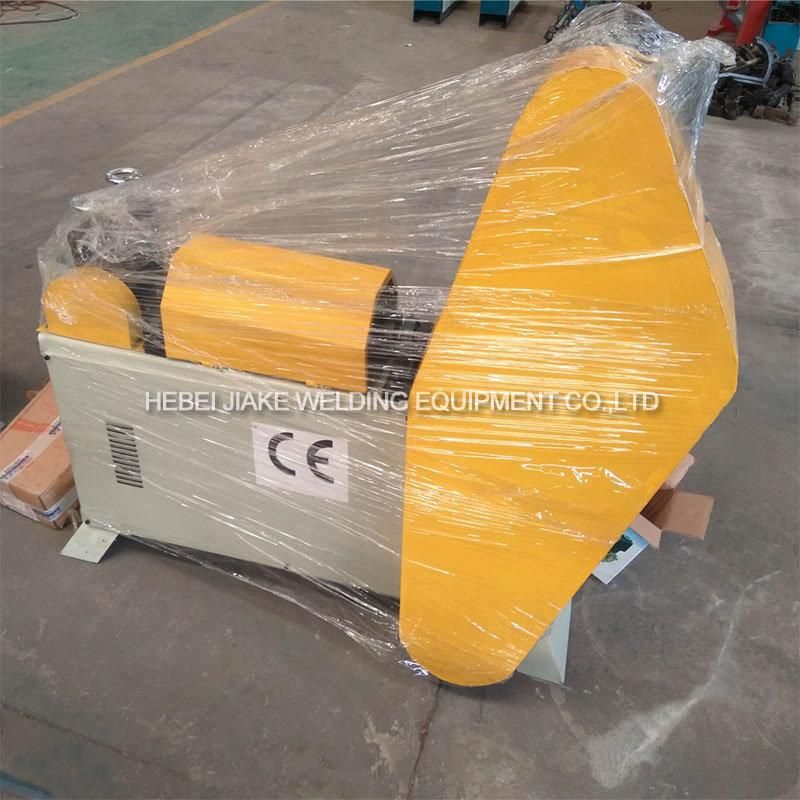

1. Wire straightening&cutting machine GT2-6
Automatic Anti-Climb Welded Wire Mesh Fence Panels Making Machine

Technical Parameters
Wire diameter
2mm-6mm
Straight motor
2.2kw
Cutting length
100-6000mm
Cut motor
1.5kw
Cut error
±1mm
Overall size
7.2*0.5*0.9m
Speed
35m/min
Weight
300kg

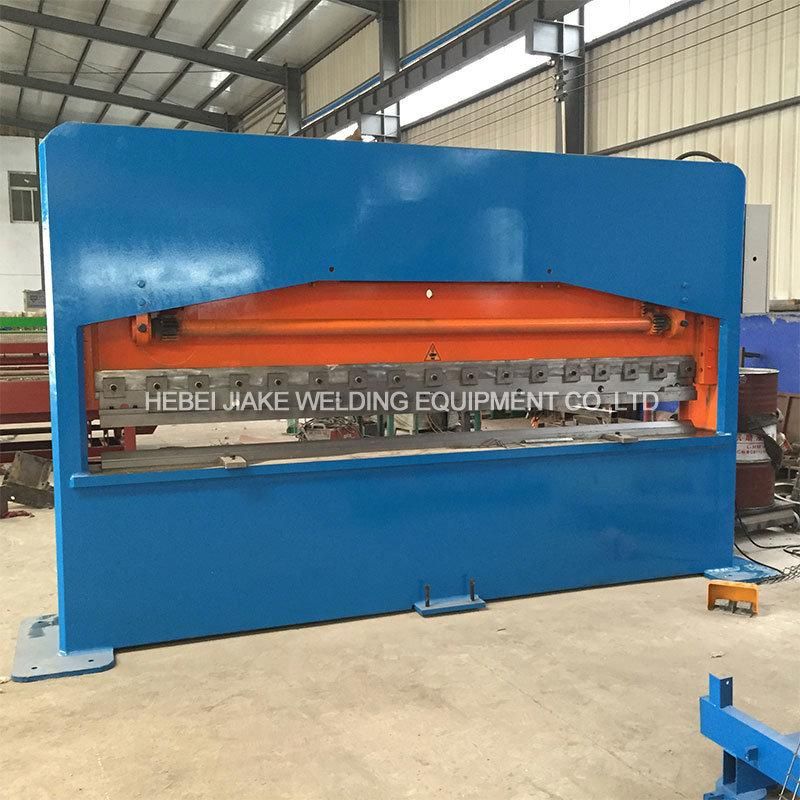

2. Fence mesh bending machine
Automatic Anti-Climb Welded Wire Mesh Fence Panels Making Machine

Technical Parameters
Pressure
100T
Nominal pressure
800KN
Length of work board
3200mm
Width of work board
450mm
Motor power
7.5kw
Speed
1440r/min
Oil pump pressure
20 APM
Output volume
25litre/r
Max. working pressure
25GMP
Overall dimensions
3340*1000*2300mm

Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
Automatic Anti-Climb Welded Wire Mesh Fence Panels Making Machine
Automatic Anti-Climb Welded Wire Mesh Fence Panels Making Machine
