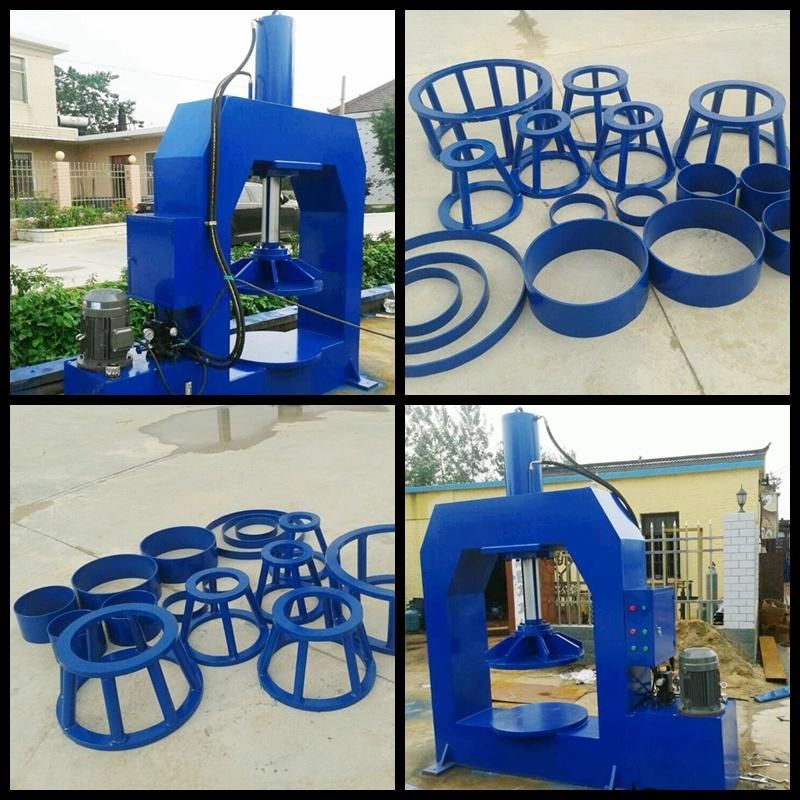

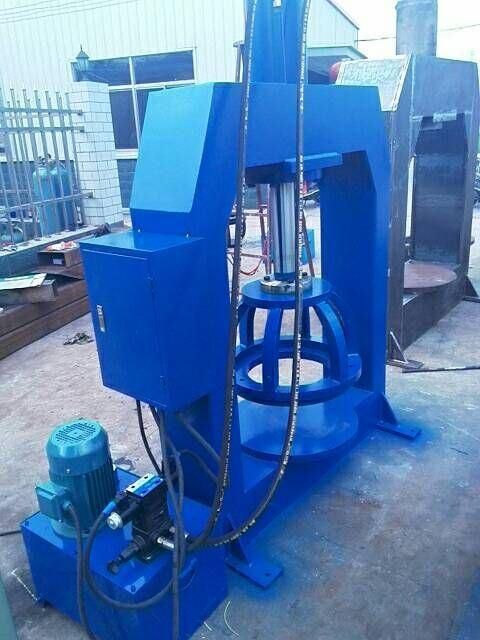

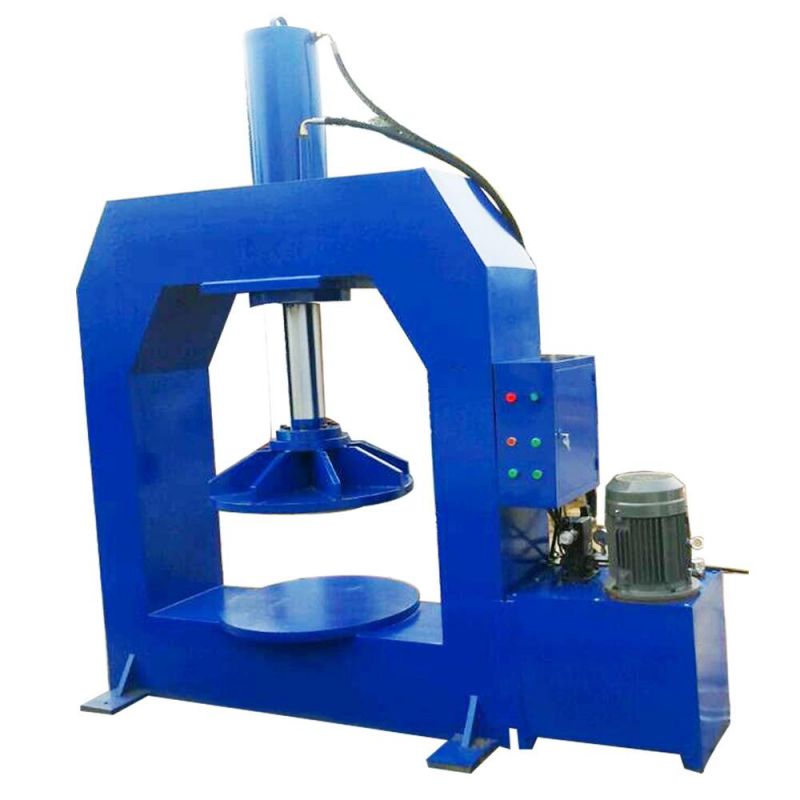

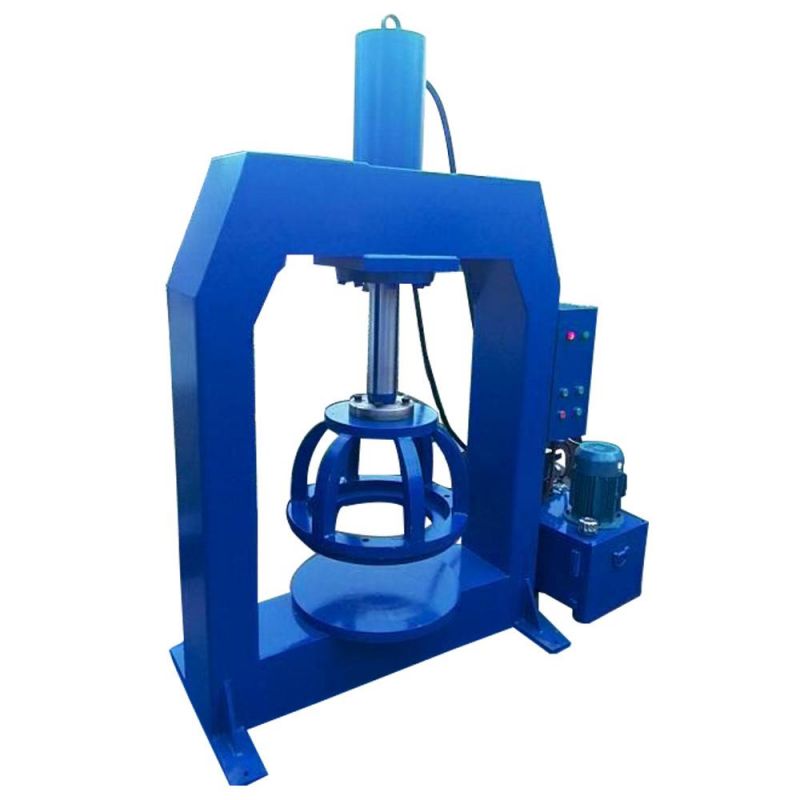

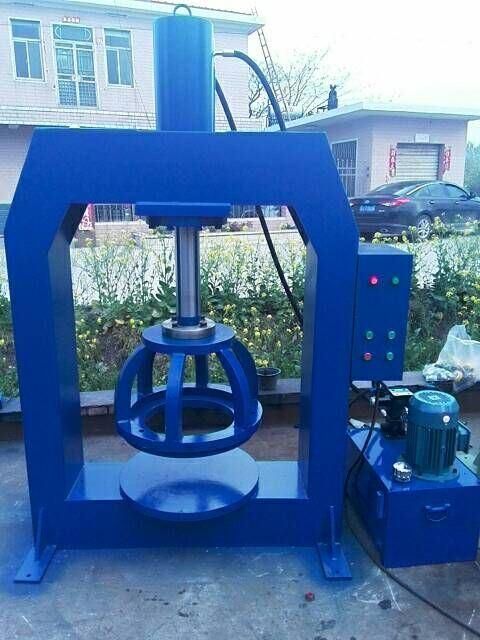

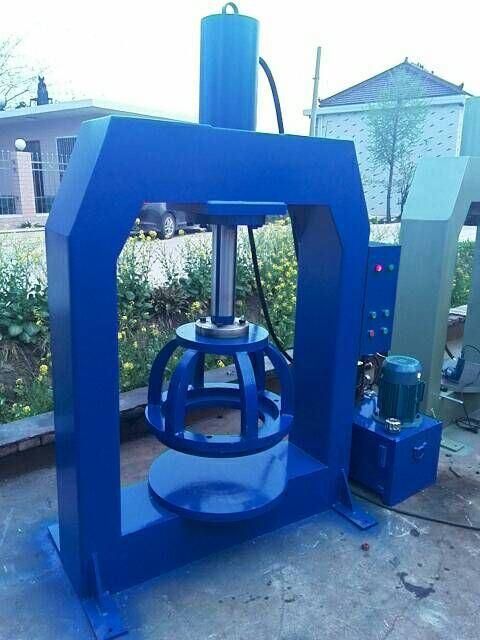

120 Ton Hot Sale Tire Press Machine for Sale (TP120)
Shanghai Hytger Industry & Trade Co., Ltd.- Item:Tire Press
- Model:Tp120
- Pressure Capacity:120ton
- Overall Size:2070*1650*600mm
- Max. Piston Stroke:460
- Cylinder Diameter:275
Base Info
- Model NO.:TP120
- Motor Rated Power:5.5kw,H
- Total Weight:2.1ton
- Original Place:Shanghai
- Certificates:ISO,CE
- Transport Package:Seaworthy Packing
- Specification:CE, SGS, ISO
- Trademark:SHYTGER
- Origin:Shanghai, China
- HS Code:8479899990
- Production Capacity:3000units,Year
Description
460
500
Cylinder Diameter
mm
275
300
325
325
Motor Rated Power
kw
5.5
5.5
5.5
5.5
Overall Dimension (H*L*W)
mm
2070*1650*600
2070*1850*800
Total Weight
ton
2.1
2.1
2.5
2.5

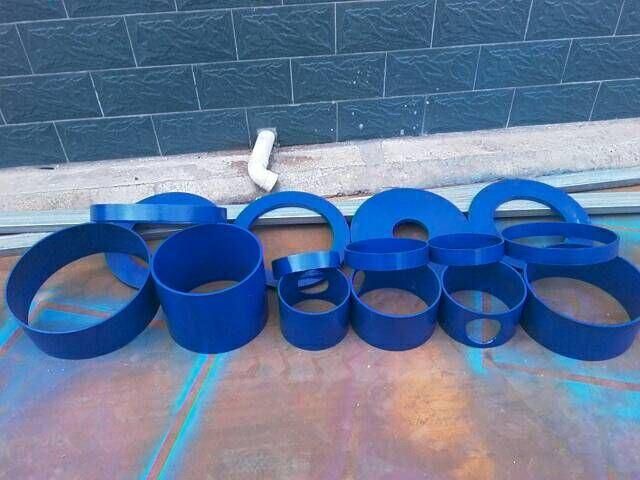

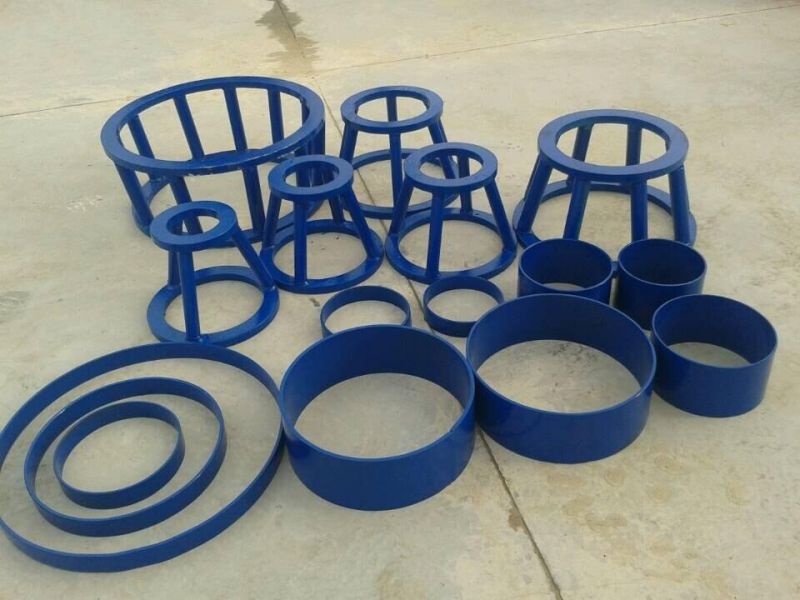

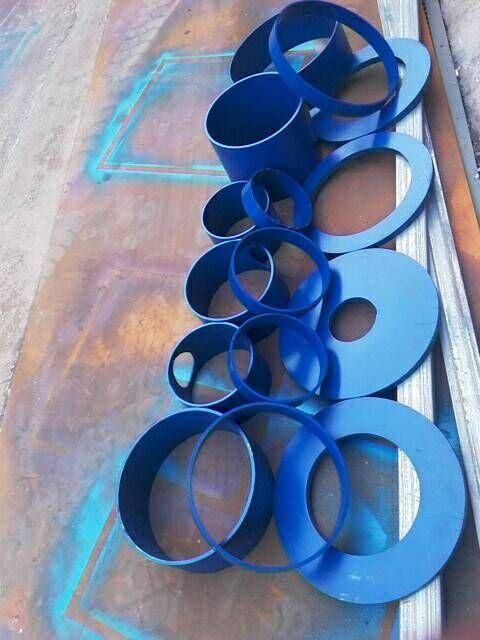

tools list
(tools name)
(size) D X d
(quantity)
(gasket)
Φ150 X Φ80
4 pcs
(gasket)
Φ200 X Φ80
2 pcs
(gasket)
Φ300 X Φ170
2 pcs
guide pin
Φ12 X Φ8
6 pcs
guide pin
Φ15 X Φ10
6 pcs
guide pin
Φ18 X Φ12
6 pcs
guide pin
Φ22 X Φ16
6 pcs
below (gasket)
Φ434 X Φ355
6 pcs
below (gasket)3.00D-8
Φ260 X Φ110
1 pcs
below (gasket)4.00E-9
Φ293 X Φ150
1 pcs
below (gasket)5.00F-10
Φ315 X Φ180
1 pcs
below (gasket)5.00S-12
Φ390 X Φ230
1 pcs
below (gasket)5.50F-15
Φ446 X Φ280
1 pcs
above compression ring
Φ434 X Φ383
1 pcs
(pin)
Φ379 X Φ318
1 pcs
above compression ring 5.50F-15
Φ486 X Φ360
1 pcs
above compression ring (ring)5.00S-12
Φ450 X Φ300
1 pcs
above compression ring (ring)5.00F-10
Φ365 X Φ240
1 pcs
above compression ring (ring)4.00E-9
Φ340 X Φ215
1 pcs
above compression ring (ring)3.00D-8
Φ310 X Φ190
1 pcs
above compression ring (ring)
Φ600 X Φ500
1 pcs

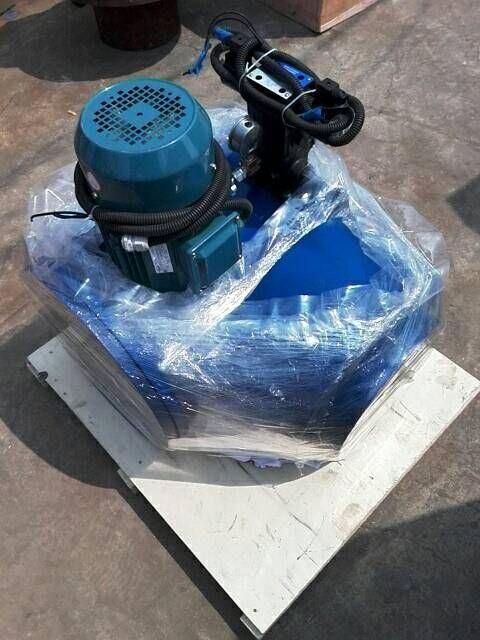

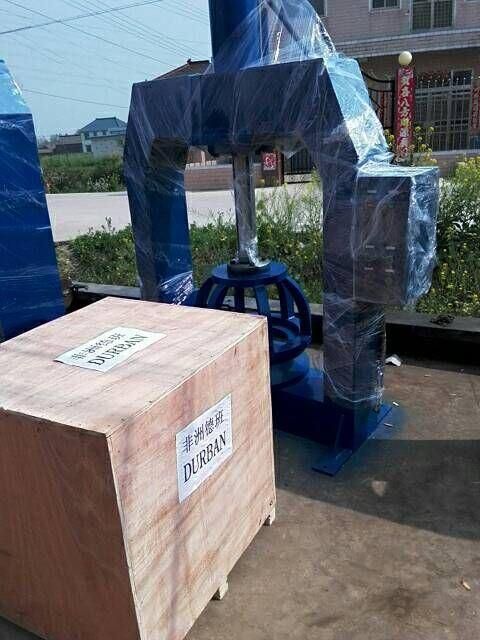

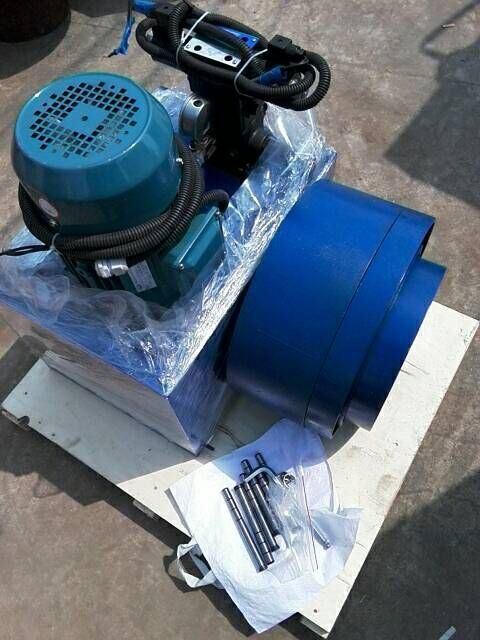

All products accessories separate iron box packing!
