• Model NO.：CZ35
• Feeding Speed：10-700mm,Time
• Table Diamter：2m
• Name：Steel Bundy Aluminum Copper Tube Bending Machine
• Transport Package：Packaged with Wooden Case.
• Specification：2900*700*1520mm
• Trademark：CZ
• Origin：Jiangsu, China
• HS Code：8462219000
• Production Capacity：5 Sets,Day

Basic Info.

Model NO. CZ35 Feeding Speed 10-700mm/Time Table Diamter 2m Name Steel Bundy Aluminum Copper Tube Bending Machine Transport Package Packaged with Wooden Case. Specification 2900*700*1520mm Trademark CZ Origin Jiangsu, China HS Code 8462219000 Production Capacity 5 Sets/Day

Product Description

Refrigerator condenser evaporator steel bundy aluminum copper pipe serpentine tube bending machine

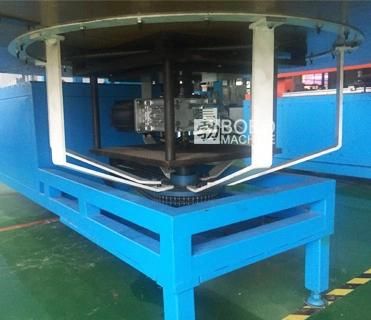

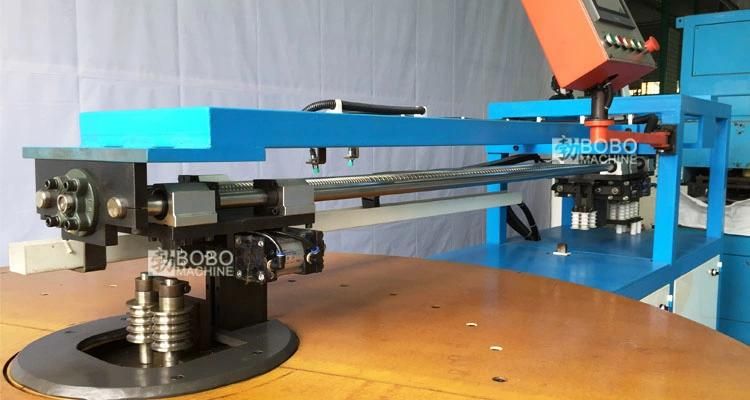

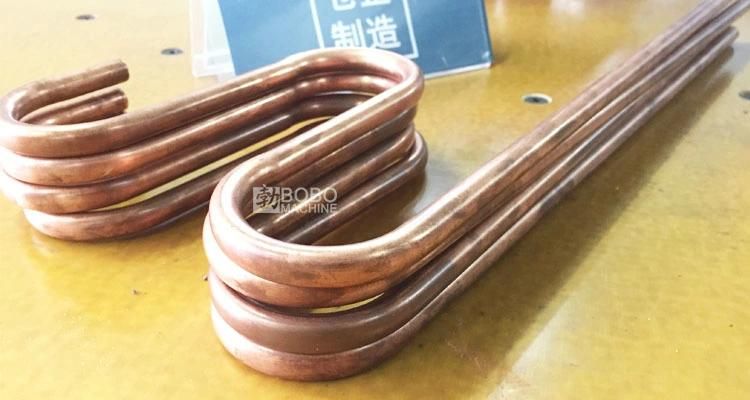

Refrigerator condenser evaporator steel bundy aluminum copper pipe serpentine tube bending machine is widely used for condenser, evaporator tube bending process. Compare to traditional manual bending work, the semi-automatic bending machine can process up to 10-12 grouped tubes in one time bending according to various tube diameter, the work efficiency is much more upgraded, and the finished tube presents good appearance as per requirements.

Feature

1) Patented special designed servo control bending system for different bending direction and bending angle in exact size. (Patent No.: ZL 2011 1 0092227.X)
2) Patented special designed bending tools ensure exact bending radius, less deformation and good appearance (Patent No.: ZL 2011 2 0107426.9)
3) Patented special designed bending structure ensures the stable performance for up to 10-12 grouped tubes in one time. (Patent No.: ZL 2009 2 0013741.8)
4) Servo drive system, PLC control system, and touch screen control to get high accuracy product size with easy operation and maintenance.
5) Matched with automatic tube chipess cut to length machine, the semi-automatic serpentine bender takes large output capacity with less fault and breakdown.




	Parameter	Data
1	Tube Material	Steel Tube / Bundy tube
2	Tube Diameter	Φ3-12mm
3	Tube Wall Thickness	0.3-1.0mm
4	Bending Capacity	1-12 pcs / cycle
5	Bending Angle	1~180 degree
6	Bending Radius	R15~R35
7	Bending Times	Up to 110 times/cycle
8	Feeding length	0-700mm/time, max. 3 times
9	Rotary Table Size	Φ2000mm
10	Control System	PLC control / Touch Screen
11	Motor Power	6.5KW
12	Electric System	380V, 50Hz, 3Phae (Customized)
13	Dimension	2500 x 1100 x 1580 mm (Excluded Table)
14	Weight	About 1600 KG

Guarantee and after-sale service
We offer free training here in China. Also we can send technicians oversea for whole line installation and training. The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer
