• Model NO.：LT-4000
• Warranty：24 Months
• Customized：Non-Customized
• Condition：New
• Transport Package：Exporting Packing
• Trademark：Baohua
• Origin：China
• Production Capacity：1000 Set,Sets Per Month

Basic Info.

Model NO. LT-4000 Warranty 24 Months Customized Non-Customized Condition New Transport Package Exporting Packing Trademark Baohua Origin China Production Capacity 1000 Set/Sets Per Month

Product Description

Function

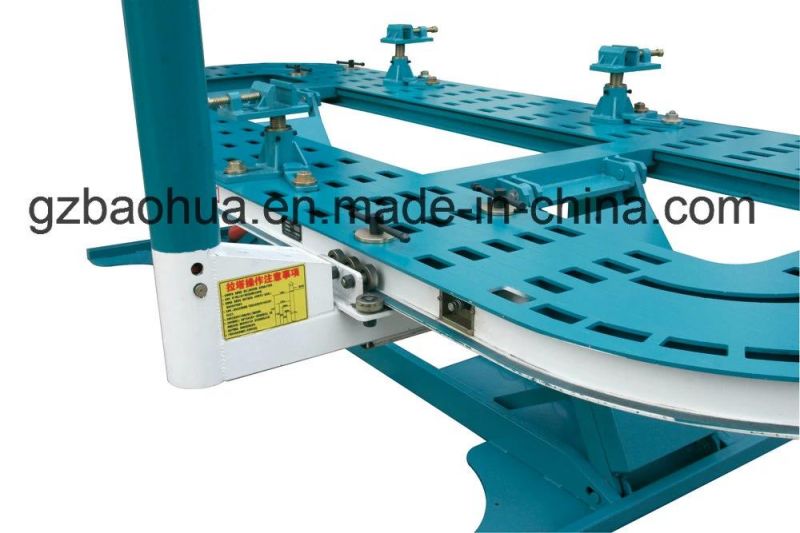

1. Plate type platform, square hole structure, the plane error is very small, many square holes are convenient for various tools.
2. Overall lift platform, according to the requirement of the repair platform height adjustment. Make any accident car, get off more convenient.
3. Ring work along the track lata rotate 360 degress, the operation more convenient and more labor-saving, robust and efficient to pull two lata.

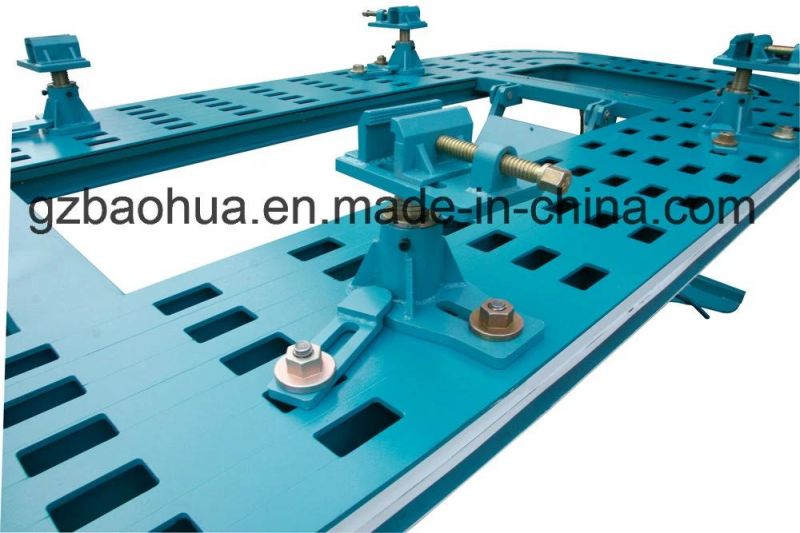

4. Mechancial flow line design of fixture, after forging heat treatment process, high strength, long service life, almost consider the correction of arbitrary deformation.
5. General body fixed clamp(optional tiger clamp), can adjust the height and angle of work

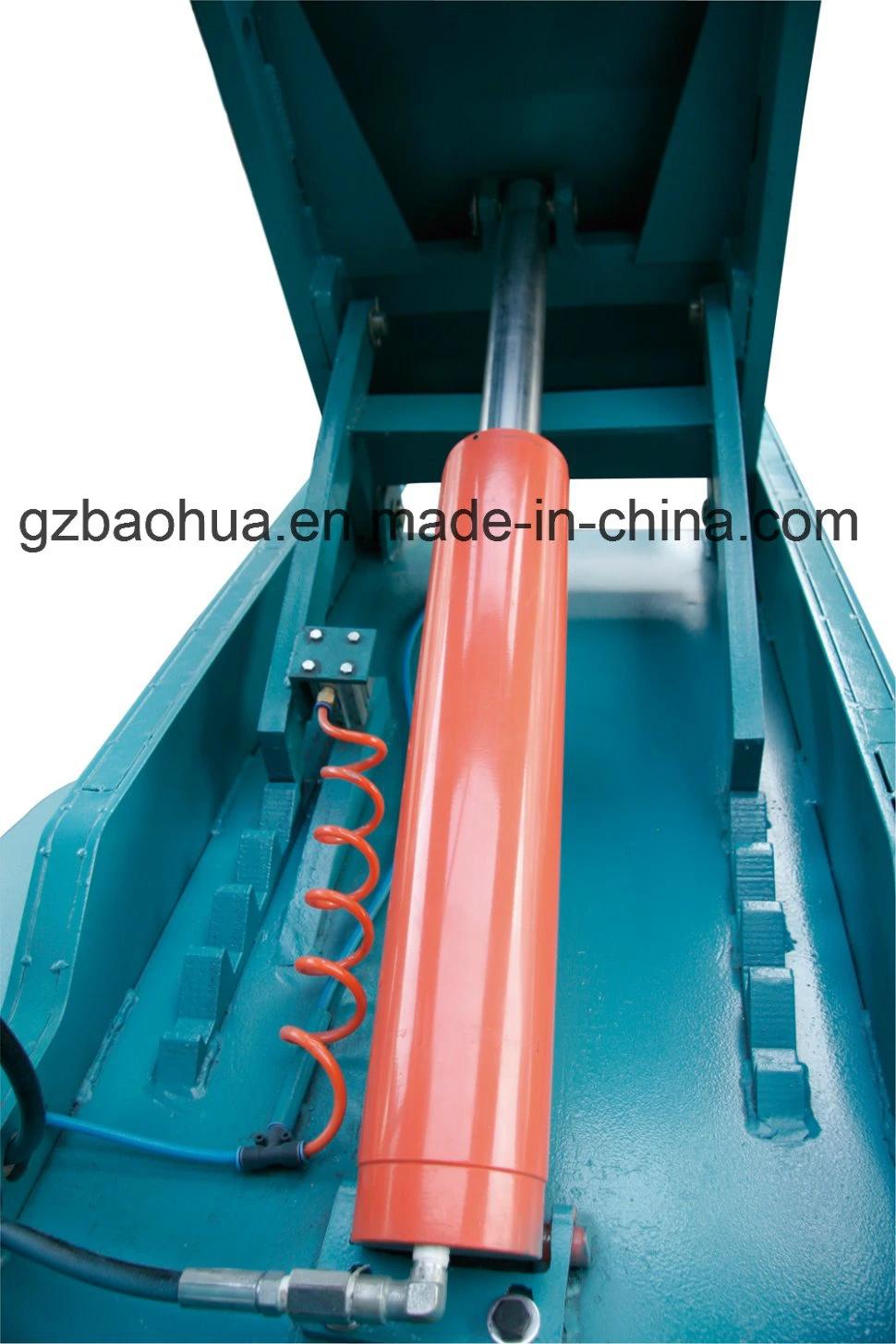

6. Provide high quality electric hydraulic system, power is strong, the failure rate is low
7. Prefect pre-sale, after-sales services system, completely remove your worries
8. The power unit adopts the three way output electric hydraulic pump, the fully enclosed hydraulic control system is not influenced by the external enviroments factors, and the operation is convenient.
Description

Length	5600mm
Width	2200mm
Height	340-1050mm
Air supply Required	0.8Mpa
Hydraulic Power	70Mpa
Power Pulling Capacity	100KN
Padius of Pulling	360°
Maximum load	3500Kg
