Statai Aha-L2 CNC Plasma Arc Voltage Controller Thc Control for CNC Plasma Cutting
Wuxi Longteng Welding and Cutting Equipment Co., Ltd.- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Model No.：Aha-L2
- Working Voltage：DC24V 0.9A
- Motor：11W
- Working Temperature：-25~60 Degree
Base Info
- Model NO.：AHa-L2
- Self Weight：2kg
- Transport Package：Carton, Wooden Case
- Specification：CE, ISO
- Trademark：Longteng
- Origin：Wuxi, China (Mainland)
- HS Code：8515900000
- Production Capacity：50000 PCS,Year
Description
Basic Info.
Model NO. AHa-L2 Self Weight 2kg Transport Package Carton, Wooden Case Specification CE, ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/YearProduct Description
StatAi Aha-L2 CNC Plasma Arc Voltage Controller THC Control for CNC Plasma Cutting
Model: AHa-L2 thc,used for gantry cnc cutter
Product Description:

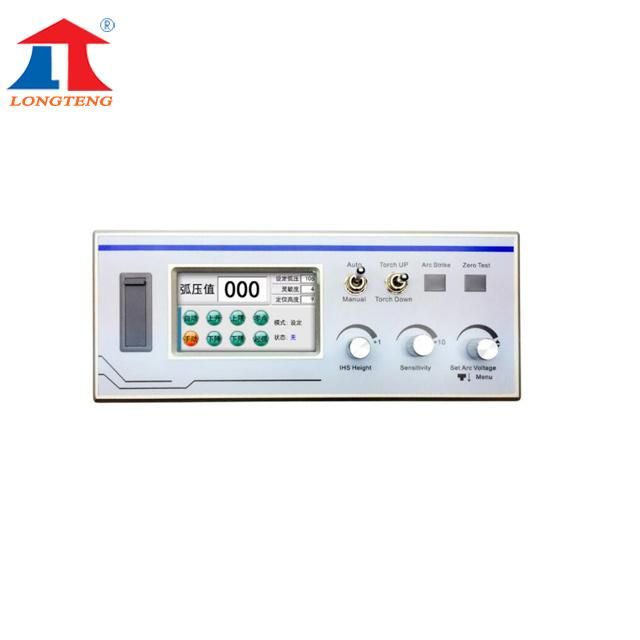

The arc voltage torch height controller uses high-performance embedded control core and stepper motor and stepper driver made by us. It has a 4.3" high resolution LCD. Its performance is better than common THC using DC motor with inaccurate lifting delay control.
Fully Digital Control:
Multi-function Knob Arc voltage torch height controller uses digital electronic switch, which can better adjust the height and sensitivity. Its precision and working life is absolutely better than common potentiometer.
Stepper Motor Lifting Device:
AHa-L2 uses the stepper motor with accuracy position control, fast response and stable start and stop. It can approach to the plate at high speed and locate at low speed in short distance. It greatly shortens the location time and improves cutting efficiency.The lifter has the upper limit, lower limit and location feedback functions.
