• Model NO.：F2300EB
• HS Code：8515900000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. F2300EB HS Code 8515900000 Production Capacity 50000 PCS/Year

Product Description

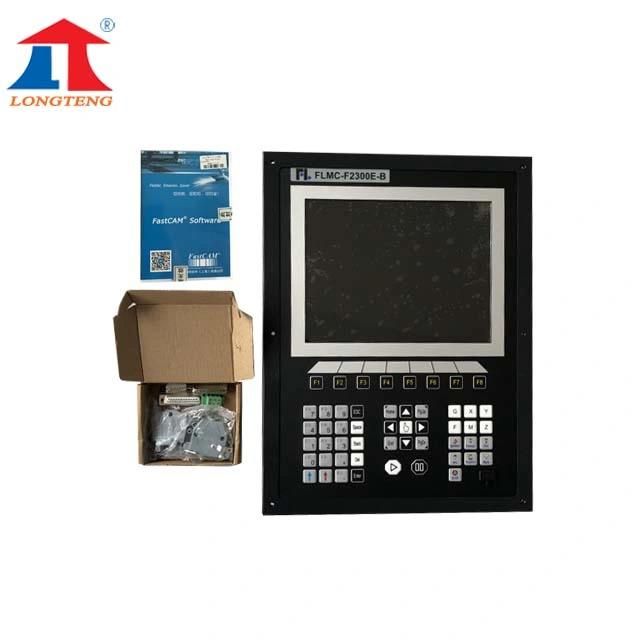

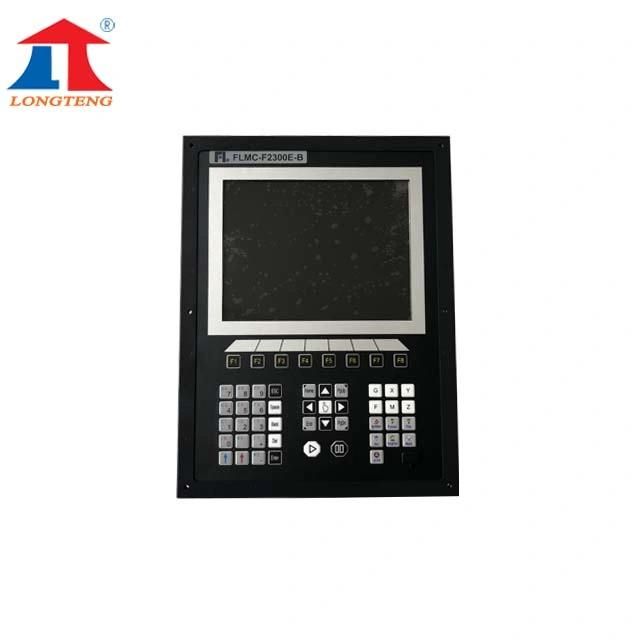

Fangling F2300EB CNC plasma/flame cutting control system for CNC cutting machine



Model:F2300EB, English Version



Specification:

1.Monitor: 10.4 inch 800*480, high definition 16 million colors and high brightness LCD2.Memory: 64M SDRAM

3.Program space available for user: 256M electronic hard disk

4.System master frequency: 400MHz

5.USB: USB 1.1 front interface, at least 16GB U disk supportable

6.Keyboard: electronic PCB foil keyboard

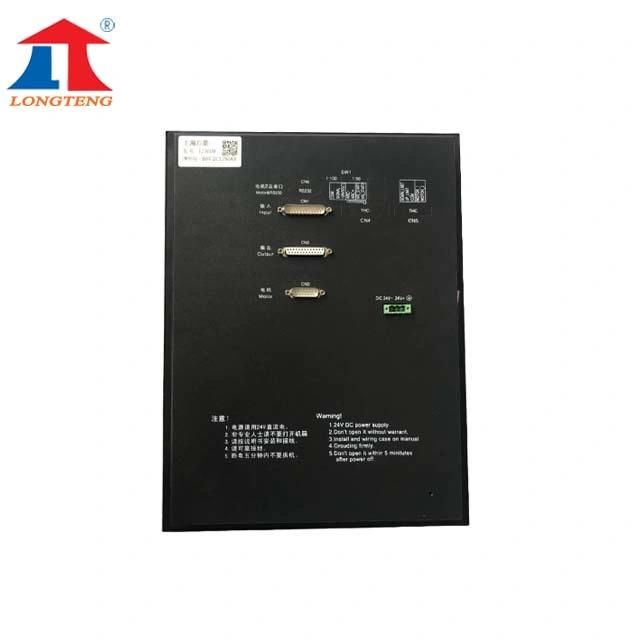

7.Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity

System information:

1.45 categories different graphics (including grid pattern), chip part and hole part are alternative.

2.Graphics have some operations such as Proportion, Rotate, Mirror.

3.Graphics can be arrayed in matrix, interaction, stacked modes

4.According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.

5.metric system/ imperia system switch

6.Steel plate can be adjusted according to any steel side.

7.Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.

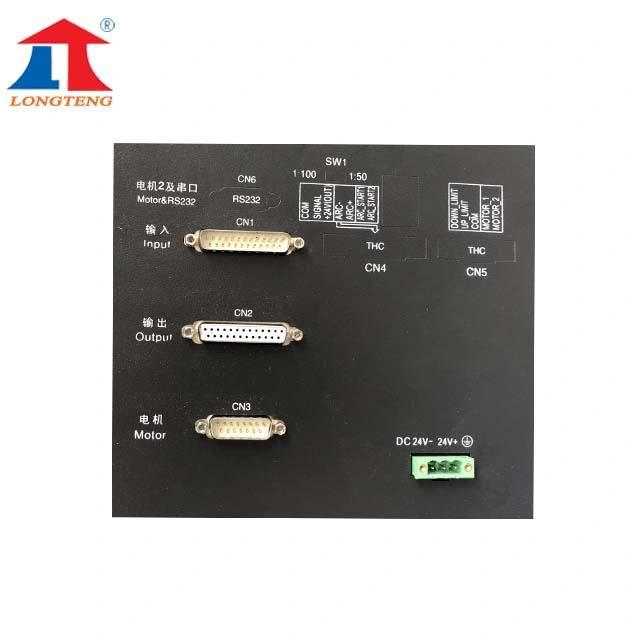

8.All input and output port type and the number can be customized (normally open or normally closed)

9.system and parameters backup, update system online

10.Chinese / English (including Japanese, Russian, French and other languages )file system and menu can be switched only by one key.

11.select row and column manually.

12.support edge cutting and offset cutting.

13.Automatically memorize the working situation and the last cutting point when power off.

14.Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.

15.support artgrave, TYPEIII, PM2000 cam software

16.set up different administration authority to and the corresponding password to safeguard the interests of managers.

F2300A/B/T Hardware Configuration:

1.Monitor:10.4 inch 800*600,high definition 16 million colors and high brightness LCD

2.Memory:64M SDRAM

3.Program space available for user:256M electronic hard disk

4.CPU frequency:400MHz

5.USB:USB 1.1 front interface,at least 16GB U disk supportable

6.Keyboard:PCB keyboard

7.Chassis:full-steel structure completely shielded which defends electromagnetic radiation,interference and static electricity.
