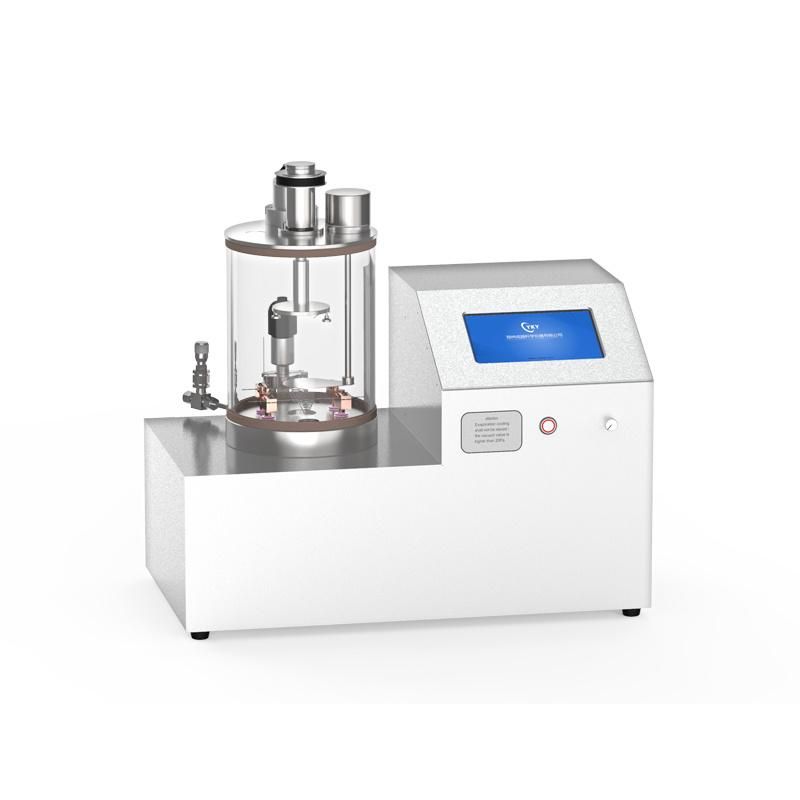

Desktop Dual-Source Thermal Evaporation Coater for The Preparation of Electrodes
Zhengzhou CY Scientific Instrument Co., Ltd.- Type:Coating Production Line
- Coating:Vacuum Coating
- Substrate:Steel
- Certification:CE
- Condition:New
- Maximum Power:1200W
Base Info
- Model NO.:CY-EVP180G-2S-LV
- Sample Stage:Diameter φ65mm
- Vacuum Chamber Material:304 Stainless Steel
- Maximum Temperature:1700c
- Thermocouple:B Type Thermocouple
- Vacuum Gauge:Electronic Vacuum Gauge
- Transport Package:Wooden Box Outside, Plastic Paper Inside
- Specification:Customized
- Trademark:CYKY
- Origin:Zhengzhou, China
- HS Code:8401409010
- Production Capacity:100pieces,Month
Description
Model
CY-EVP180G-2S-LV
Power supply
AC220V,60Hz
Max power
1200W
Evaporation sources
Tungsten wire basket x2
Sample table
Diameter φ65mm;
Rotation speed 0-20rpm;
Height: The distance between the evaporation source is adjustable, the adjustment range is 60mm-100mm
Vacuum chamber
Material: high purity quartz φ180mm x 210mm
Max temp.
1700ºC
Thermocouple
B type
Vacuum gauge
Resistance-type vacuum gauge
Vacuum interface
KF16
Inlet interface
1/4NPS
Overall Dimensions
500x350x400mm
high vacuum thermal evaporator system

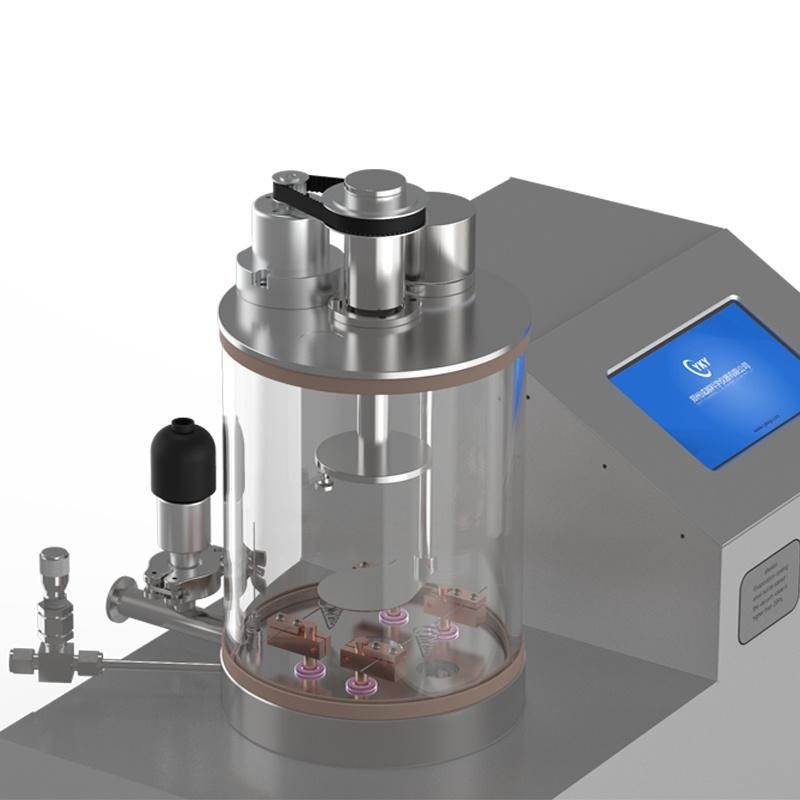

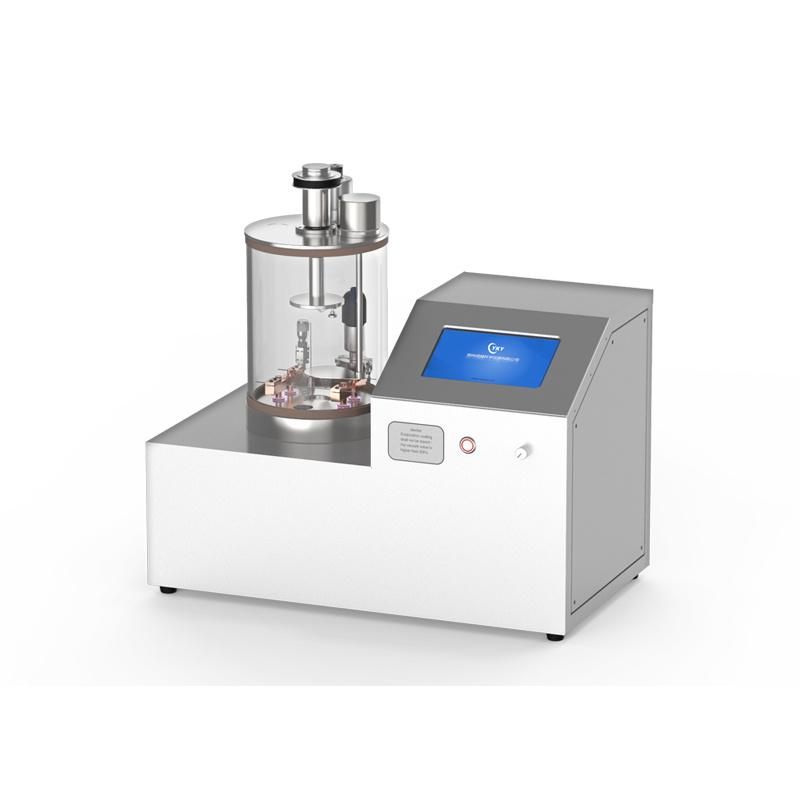

More photos of thermal evaporator coater:
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service
